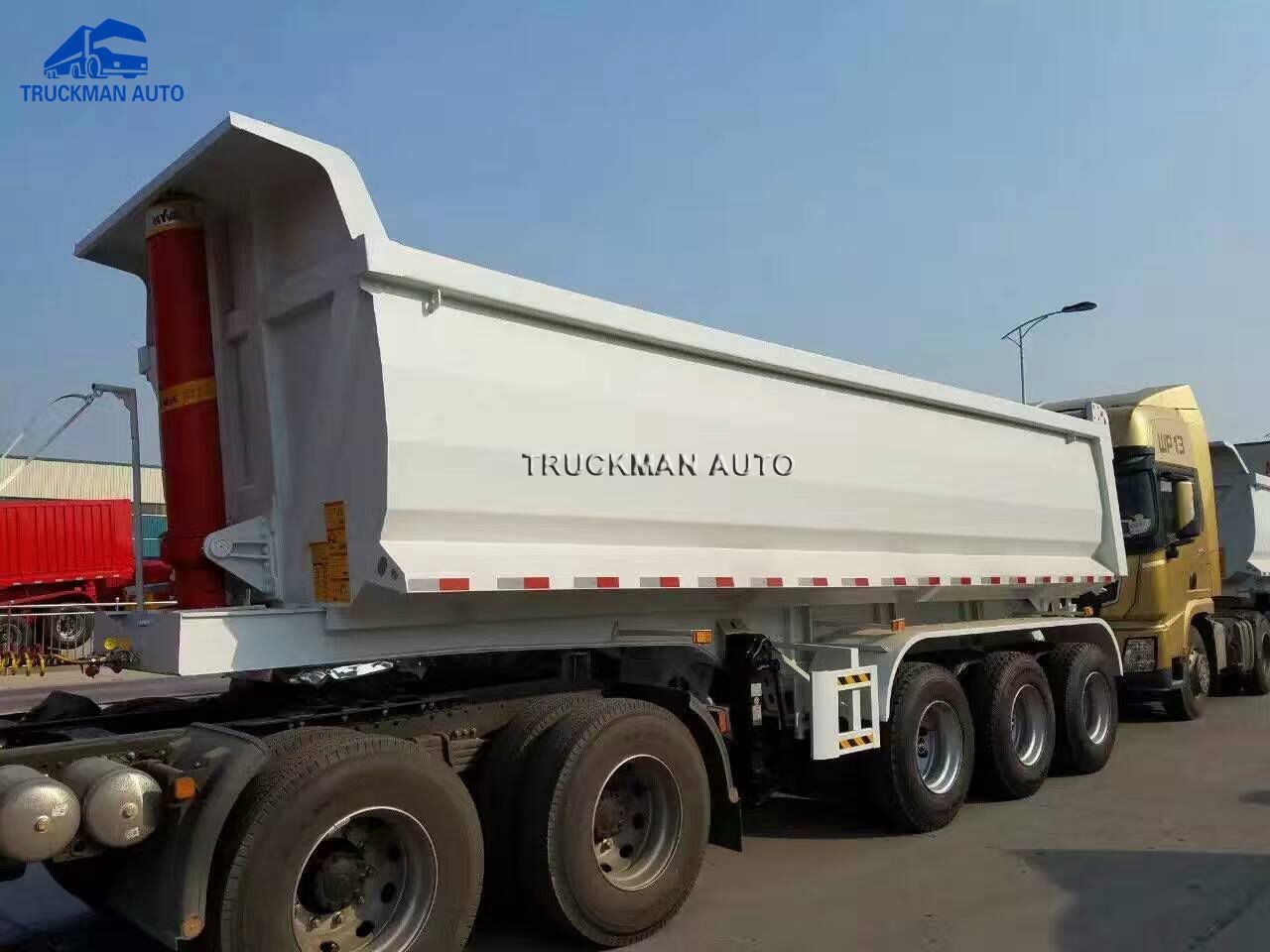

U Shape 50000kg Semi Tipper Trailer With HYVA Lifting System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM M |
| Model Number: | TKNS28834 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Axle: | 3x13 Tons Or 16 Tons Available | Suspension: | America Type, With 8mm Thickness |
|---|---|---|---|
| Tire: | 12.00R20, 12 Pcs | Loading Capacity: | 50000kg |
| Paint: | 3 Level And Electrophoresis | Warranty: | 12 Months |
| High Light: | 50000kg Semi Tipper Trailer,HYVA Lifting Semi Tipper Trailer,Electrophoresis Dump Semi Trailer |
||
Product Description
U Shape 50000kg Semi Tipper Trailer With HYVA Lifting System
-1. U Shape 50 Tons Tipper Trailer Main Detail.
The U shape 50 tons Tipper Trailer is very popular for the mining and construction filed. the material choose the Q345, with high abrasion resistance. The 50 tons Tipper Trailer tire have the radial and tubeless model could optional, meet the different road request, for example: good road transport suggest the tubeless tire, otherwise the radial model tire is very necessary.
-2. U Shape 50 Tons Tipper Trailer Main Specification.
| Description | Parameter value |
| Product Name | U shape 50 tons Tipper Trailer |
| Loading Weight | 50,000kg |
| Tare Weight | 13,000kg |
| Axle | 3 axle, 3x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 120x16mmx10pcsx6sets |
| Rim | 16mm thickness |
| Tire | 12.00R20 or 315/80R22.5, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
| Material | Q345, high strength steel |
| Cargo Box | 10000x2300x1500mm, bottom 8mm, side 6mm, U shape |
| Dimension | 11000x2500x3750mm |
-3. U Shape 50 Tons Tipper Trailer Shipment Picture.
The U shape 50 tons Tipper Trailer could shipment via the container, bulk cargo and roro vessel. We could
choose the suitable vessel according to your request.
