3 Axle 35m3 70 Tons Tipper Semi Trailer For Sand Limestone
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM E |
| Model Number: | TKM370TTT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Loading Tons: | 70 Tons | Axle: | 3x16 Tons, ZY Brand |
|---|---|---|---|
| Tire: | 12.00R20, 12 Pcs | Suspension: | 8mm Thickness |
| Landing Gear: | 28 Tons | Leaf Spring: | 90x16mmx10pcsx6sets |
| High Light: | 3 Axle Tipper Semi Trailer,Sand Limestone Tipper Semi Trailer,70 Tons Tipper Semi Trailer |
||
Product Description

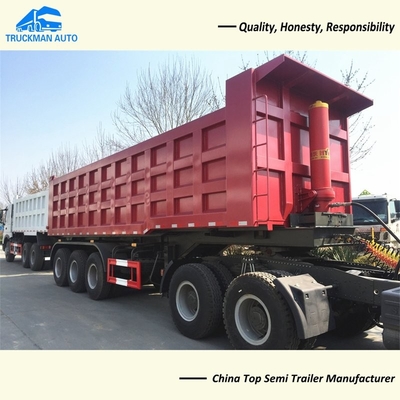

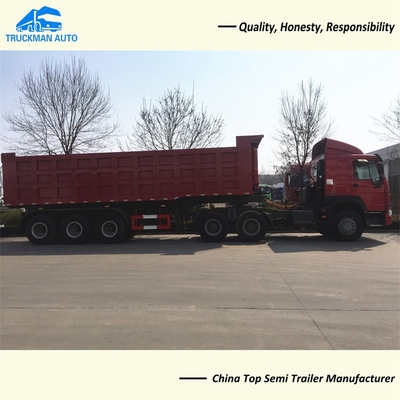

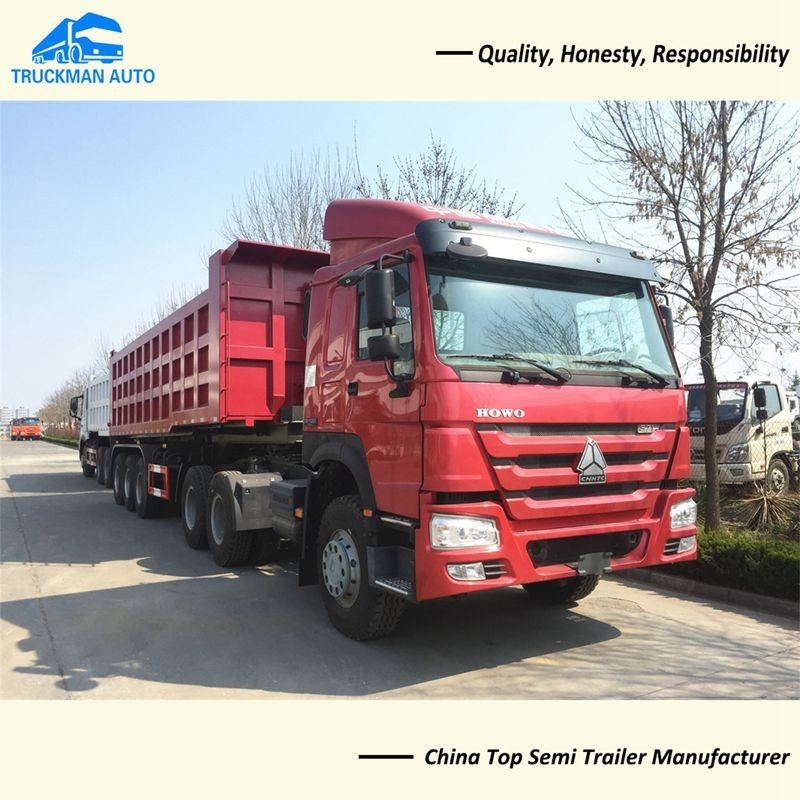

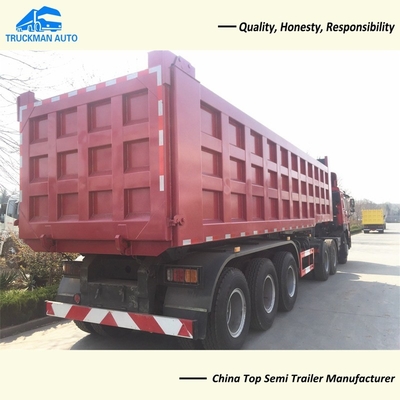

3 Axle 35m3 70 Tons Tipper Semi Trailer For Sand Limestone
3 Axle 35m3 70 Tons Tipper Semi Trailer For Nigeria
-1. 35m3 70 Tons Tipper Trailer Detail.
The tipper trailer is tipper truck upgraded version, compare with tipper truck this tipper trailer
loading tons reach to 70 tons, but tipper truck max loading tons only 50 tons.
And tipper trailer suitable for long distance transport.
-. The suspension is 8mm thickness, 6mm thickness suspension only for good condition road.
-. The tipper trailer can optional the radial and tubeless model tire for different road request.
-2. 35m3 70 Tons Tipper Trailer Specification.
| Description | Parameter Value |
| Product Name | 35m3 70 Tons Tipper Trailer |
| Application | For sand, limestone, gravel etc transport |
| Axle | 3 axle, 16 tons axle, ZY brand |
| Suspension | Heavy duty 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Tire | 12.00R20, 12 pcs, radial model |
| Rim | 18mm thickness |
| Support Leg | JOST 28 tons |
| Tractor Pin | JOST 90# heavy duty version |
| Cargo Box | 10200x2300x1500mm, 35m3 |
| Loading Tons | 70 tons |
| Dimension | 11000x2580x3750mm |
The 35m3 70 tons tipper trailer specification only for your reference, we will recommend other
model tipper trailer according to your request.
-3. 35m3 70 Tons Tipper Trailer 16 Tons Axle Detail.
The TRUCKMAN AUTO 35m3 70 tons tipper trailer use the 16 tons axle, instead of 13 tons axle.
The advantage of 16 tons axle as follow:
A. The 16 tons axle bearing capacity is higher than 13 tons axle
B. 16 tons brake disc more thicker than 13 tons axle, brake effect !
C. 16 tons axle maintenance cost lower than 13 tons axle, due to 16 tons axle more durable
and with long using time.
