3 Axle 60 Tons Tipper Semi Trailer With FUWA Brand 13 Tons Axle
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM E |
| Model Number: | TKM360TPP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Axle: | 3x13 Tons, FUWA | Loading Tons: | 60 Tons |
|---|---|---|---|
| Suspension: | Heavy Duty Mechanical Type | Support Leg: | 28 Tons, JOST Brand |
| Tire: | LINGLONG Brand, 12.00R20, 12 Pcs | Material: | Manganese Plate |
| High Light: | 60 Tons Tipper Semi Trailer,3 Axle Tipper Semi Trailer,FUWA 3 Axle semi trailer tipper |
||
Product Description
3 Axle 60 Tons Tipper Semi Trailer With FUWA Brand 13 Tons Axle
3 Axle 60 Tons Tipper Semi Trailer With FUWA Brand 13 Tons Axle
-1. 60 Tons Tipping Semi Trailer Detail.
3 axle tipper semi trailer can loading 60 tons mining or construction material, the bucket shape is
U model, can offloading goods with quickly speed, no residue. Also the hydraulic lifting system is
HYVA brand, maintenance easy and lower cost.
-. Adopt the manganese plate, more durable and wearable.
-. The bucket model have rectangle and U shape, also have mining structure model.
-. Major parts and components of the trailer adopt famous brand of parts, like JOST support leg and
tractor pin, HYVA hydraulic lifting system, LINGLONG tire etc.
-2. 60 Tons Tipping Semi Trailer Specification.
| Description | Parameter Value |
| Product Name | 60 Tons Tipping Semi Trailer |
| Application | For haulage mining material |
| Main Frame | Bottom 18mm, middle 8+8mm, upper 16mm |
| Axle | 3 axle, 3x13000 tons, ZY & FUWA brand |
| Suspension | Mechanical model, 8mm thickness |
| Support Leg | 28 tons, JOST or FUWA brand |
| Bucket | 10000x2300x1500mm, 35m3 |
| Brake System | WABCO brand |
| Fifth Wheel | 3.5 inch, for heavy duty loading |
| Tire | 12.00R20, 12 pcs, LINGLONG brand |
| Rim | 18mm thickness, for heavy loading |
| Loading Tons | 60 tons |
The 60 tons tipping semi trailer specification only for your reference, we will recommend other model
tipper semi trailer according to your request.

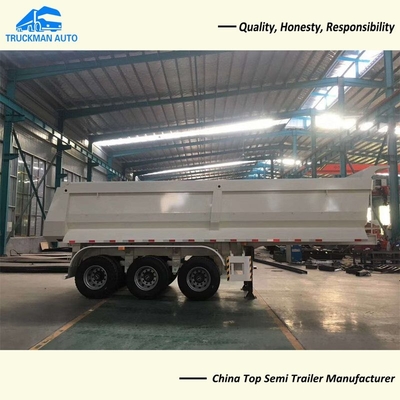

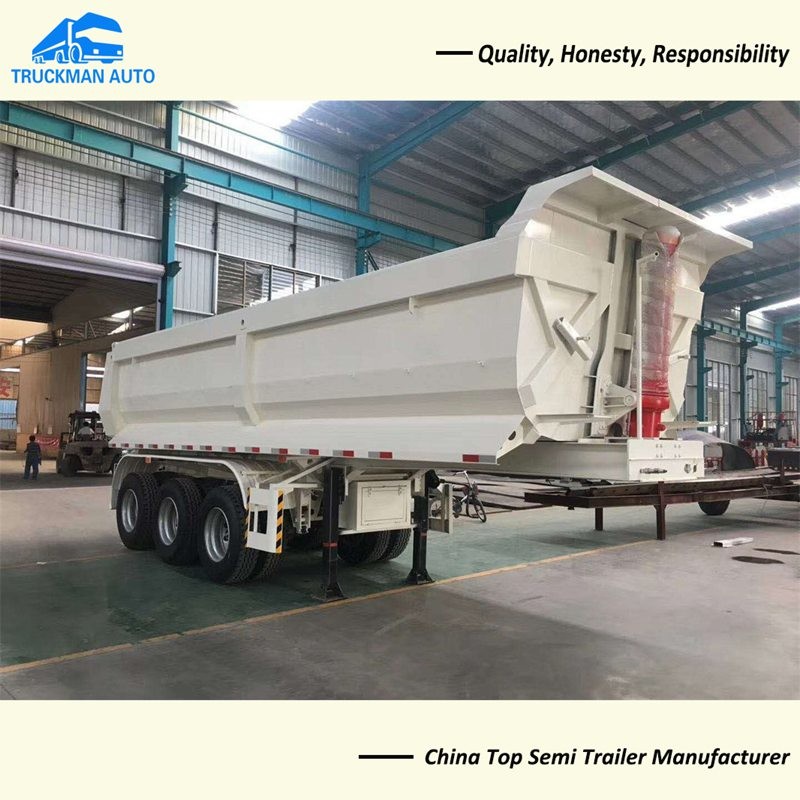

-3. 60 Tons Tipping Semi Trailer Working Picture.
Our Philippines customers received the tipping semi trailer, and put it into using, till now only change some
side lamp no other issue. He is planning to buy 2 sets HOWO A7 tractor head and tipping semi trailer end
of this year.
