Product Details:

Place of Origin: CHINA
Brand Name: TRUCKMAN
Certification: SGS, BV, CTN
Model Number: TKMSTS360

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Price is negotiable
Packaging Details: nude
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 Unit / Per Month
Get Best Price Contact Now

Detail Information

Axles: 3 Axles, 3x13 Tons Loading Capacity: 40 Tons
Application: Transport Container Support Leg: JOST Brand
Brake System: WABCO Brand Color: Optional
High Light:

skeletal container trailer

,

flatbed container trailer

Product Description

Optional Colors Semi Trailer Storage Containers  With 12 Pcs Container Lock

-1. Main Feature Of Skeleton Container Semi Trailer.



-. Application for transport 2 pcs 20FT container and 1 pcs 40FT container

-. The weight is 7.5 tons but the structure is stronger with Q345 material

-. Adopt the FUWA, JOST, WABCO, LINGLONG brand good spare parts

-. With one year quality warranty and tech support.

-. With repair box and tool box



Dimension and Weight
Overall Dimension(mm) 12500x2500x1650mm
Wheelbase 7,500mm+1,310mm+1,310mm
Payload 40,000kg
Tare weight 6,500kg
G.V.W.R. 46,500kg
Function transport 1x20ft, 2x20ft, 1x40ft container
Running System
Main beam height of the beam is 500mm,
upper plate is 14mm,
down plat is 16mm,
middle plate is 8mm.
Side beam 16#
Axle 3x13Ton ZY brand
Axle Number Three
Tire 12R22.5, 12 pcs. Taitong brand
Rim 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system Mechanical Suspension
Steel Spring 10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System Chinese standard 24V lighting system
Brake system Dual line pneumatic brake, no ABS
Brake air chamber 6 units T30/30 Double brake chambers
Emergency relay valve Standard
Diamond plate 4mm
Traction/King Pin 2” and 3.5” removable Kingpin,
bolted in type 500mm from the front face of the front bolster
Landing Gear Yahua brand 28ton
external two speed telescopic manual operation
2,500mm behind the kingpin location
Accessories
Tool box 1pcs, One crank and one shaft head wrench
Mud guard Steel mud guard and front mudguard
Spare wheel carriers 2 pcs
Bumper Rear bumper with adjustable height
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
  Tail lamp with turn signal, brake light & reflector, side lamp etc.
  One set 6-core electric cable protected by PVC conduit on main frame
Paint Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed



Optional Colors Semi Trailer Storage Containers  With 12 Pcs Container Lock 0



-2. Shipment Details.



Optional Colors Semi Trailer Storage Containers  With 12 Pcs Container Lock 1

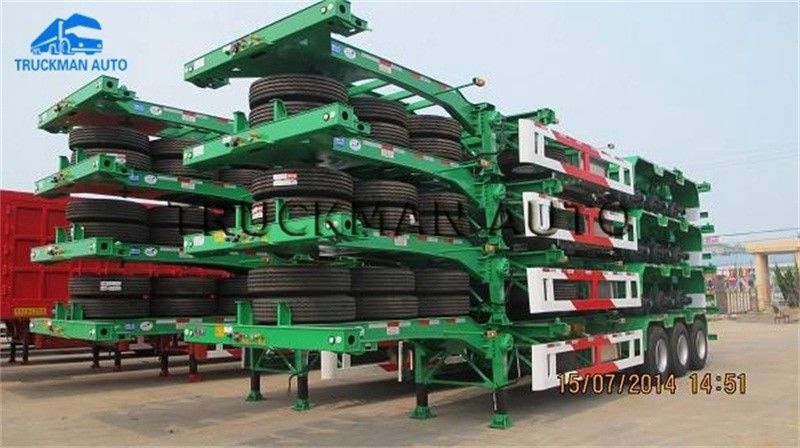

We put 3 pcs skeleton container trailer make one, see picture and with good strapping, help customers

reduce the freight cost. and all trailer use stronger material, automatic welding.



-3. Trailer Working Picture.



Optional Colors Semi Trailer Storage Containers  With 12 Pcs Container Lock 2



The customer use the skeleton container trailer transport the container from Dar Es Salaam port

to Zambia, Congo country etc. every time need running 700km. But from purchase till to now

no any big questions for the trailer, and we are discussing new order for skeleton trailer.
