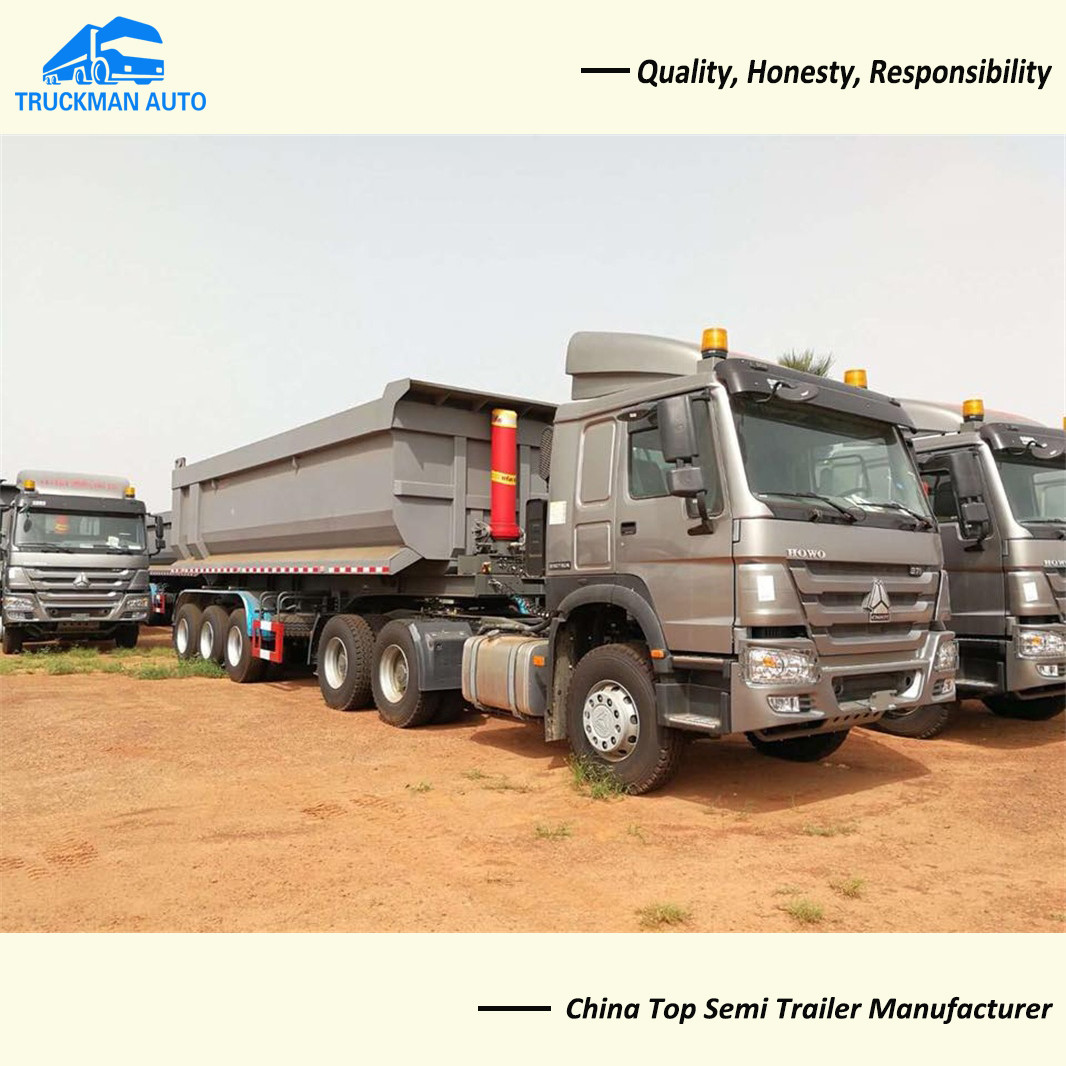

60 Tons 3 Axle Tipper Trailer For Sand Gravel Haulage
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN AUTO |
Certification: | SGS, BV, CIQ, FORM E |
Model Number: | TKM360LTE |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiable |
Packaging Details: | Nude |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Loading Tons: | 60 Tons | Axle: | 3x16000kg |
---|---|---|---|
Tire: | 12.00R20, 12 Pcs | Suspension: | Heavy Duty Mechanical Suspension |
Brake System: | WABCO Brand | Bucket: | 9000x2300x1500mm |
High Light: | Q355 3 Axle Tipper Trailer,12.00R20 Tire 3 Axle Tipper Trailer,Sand Gravel Haulage Tipper Trailer |
Product Description
60 Tons 3 Axle Tipper Trailer For Sand Gravel Haulage
3 Axle 60 Tons Tipper Trailer For Sand Gravel Haulage
-1. 3 Axle 60 Tons Tipper Trailer Detail.
The 60 tons tipper trailer adopt the U shape bucket design, material model is Q355
high strength steel. The bucket bottom is 8mm, side is 6mm with automatic submerged arc welding.
-. The lifting system can optional the HYVA brand, with 191mm diameter.
-. Axle adopt the BPW, FUWA or ZY brand. 16 tons loading capacity axle is standard spec.
-2. 3 Axle 60 Tons Tipper Trailer Specification.
Description | Parameter Value |
Product Name | 3 Axle 60 Tons Tipper Trailer |
Application | For sand gravel haulage |
Axle | 3 axle, 3x16000kg. |
Tire | 12.00R20, 12 pcs |
Suspension | Heavy duty mechanical suspension |
Brake System | WABCO brand |
Bucket | 9000x2300x1500mm, U shape |
Loading Tons | 60 tons |
Dimension | 11000x2580x3450mm |
The 3 axle 60 tons tipper trailer specification only for your reference,
we will recommend other model tipper trailer according to your request.
-3. 3 Axle 60 Tons Tipper Trailer Welding Tech Detail.
All TRUCKMAN AUTO semi trailer use the automatic submerged arc welding technology,
to ensure that the whole dump semi trailer does not crack. Submerged arc welding
technology has the characteristics of neat welds, beautiful appearance, and not
easy to crack. Compared with manual welding, the cost of submerged arc welding is lower.
Submerged Arc Welding Products Display
