6 Axles Bauxite Semi Tipper Trailer , Tractor Trailer Dump Trailer 80 Tons
Product Details:
Place of Origin: | China |
Brand Name: | TRUCKMAN |
Certification: | BV,SGS,ECTN,FORM M,CO,CIQ |
Model Number: | TMA6100TWT128TT |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Price is negotiable |
Packaging Details: | Nude |
Delivery Time: | 30 Days |
Payment Terms: | T/T |
Supply Ability: | 500 Unit Per Month |
Detail Information |
|||
Type: | Tipper Semi Trailer | Max Payload: | 80Ton |
---|---|---|---|
Suspension: | Leaf Spring Suspension (90*13*10pcs) And Air Bag Suspension | King Pin: | 3.5"(90mm) Tipper Trailer |
Landing Gear: | Jost Dual-speed | Color: | Yellow |
Hydraulic Cylinder: | Hyva | ||
High Light: | tractor trailer dump trailer,semi tipper trailer |
Product Description

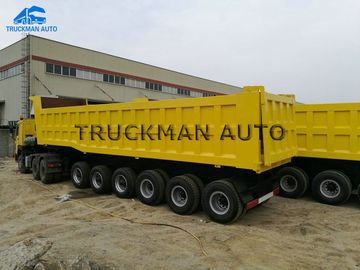

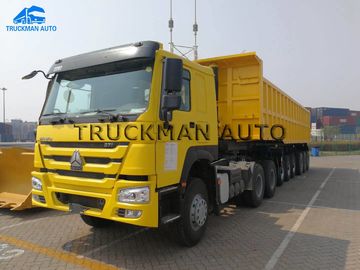

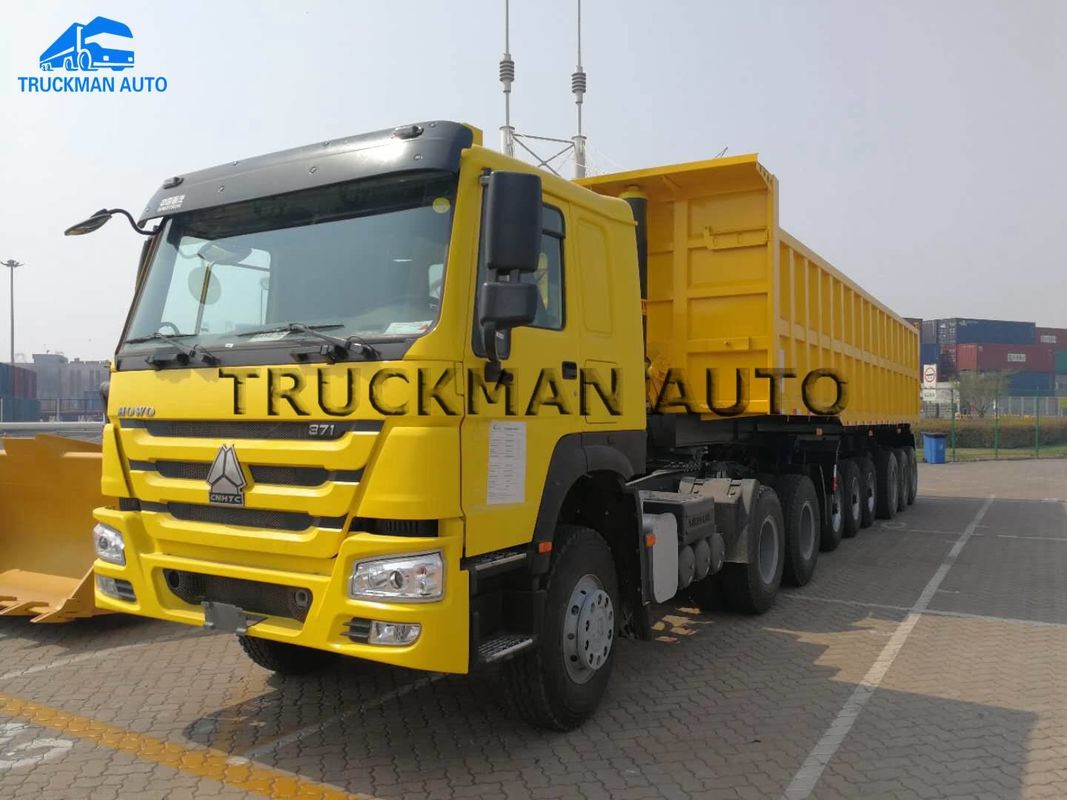

6 Axles Bauxite Semi Tipper Trailer , Tractor Trailer Dump Trailer 80 Tons
What is Tipper Semi Trailer?
Tipper semi-trailer car with automatic dump device. It is also called tipper semi-trailer and engineering semi-trailer. It is composed of automobile chassis, hydraulic lifting mechanism, power take-off device and cargo compartment. In civil engineering, it is often combined with excavators, loaders, belt conveyors, etc. to form a loading, transporting, and unloading production line for loading and unloading of earthwork, sand, and loose materials. Because the loading compartment can automatically tip over to unload at a certain angle, it greatly saves unloading time and labor, shortens
6 Axles Bauxite Tipper Trailer Loading 80 Tons For Ghana Market
Model No. | TMA6100TWT128TT |

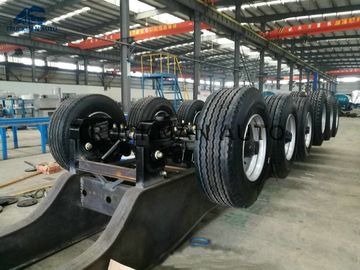

Axles | Front 3 Axles with Air bag suspension,Rear 3 mechanical |
Tires | 385/65R22.5,Tubeless,6+1, Rear 3 axles 12+1 pcs Tubeless |
Loading capacity | 80 Tons-100Tons |
Buckets | Bottom 6mm side 5mm,42cbm |
Front lifting cylinder | China 191 pump |
King pin | 90mm Jost brand |
Landing Gear | JOST E100 |
Brake system | air brake each axles with two charmbers and WABCO valve |
Painting |
3 coats |
Main Beam | upper 18mm middle 8+8mm lower 20 mm |
Others | Factory standard |
FAQ:
Where is your company location?
Jinan Truckman Automobile Co.,Ltd located in Jinan City Shandong Provoince China,which is called spring city cause of its famous spring Water. Jinan City is a city of Heavy duty truck where the Sinotruck is.So Jinan has a advantage of Sinotruk and Semi Trailers exporting.
1.What is your Terms of Payment?
We accept TT Terms of payment, 30% in advance as deposit,balance before shipment.
2.What is the Terms of Shipment?
RORO/BULK/FLAT ROCK/Container for your option
3.How can I visit your Company?
you can fly to Guangzhou city then transit to Jinan City by air that need a 2 and half hours
you can fly to Beijing city then transit to Jinan City by air needed 1 hour or Bullet Train that need 2 Hours
you can fly to Shanghai city then transit to Jinan City by air needed 1 and half hours or Bullet Train needed 4 Hours
4.Which China Seaport you will load?
Tianjin,Qingdao,Shanghai,Lianyungang port and All China Border Cities.
5.What is the warranty?
1 year or 100000 kms warranty once engine assy,gearbox assy,chassis assy and cabin assy come to quality problem after our tech center confirm we will take charge of it exception human beings operation.
