• 50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone
  • 50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone
  • 50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone

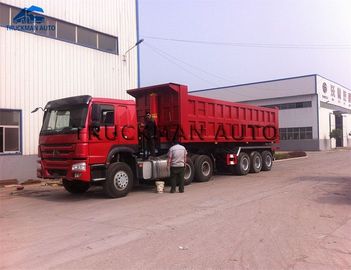

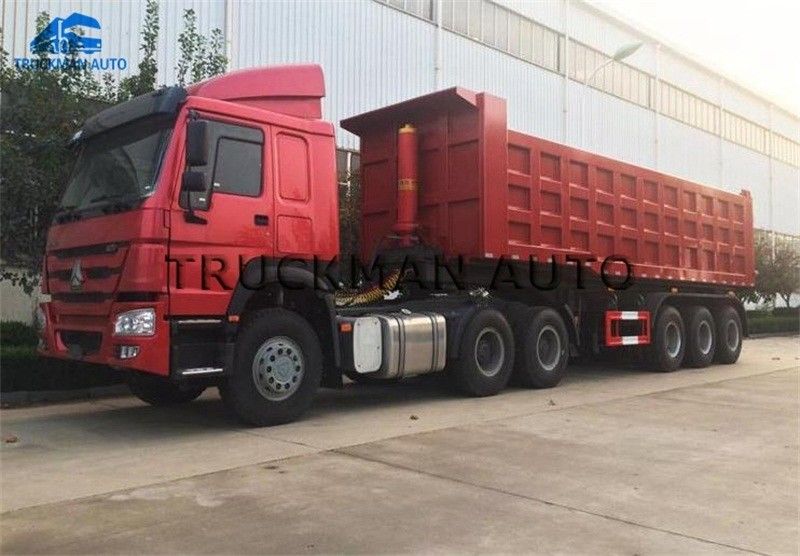

50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone

50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone

Product Details:

Place of Origin: CHINA
Brand Name: TRUCKMAN AUTO
Certification: SGS, BV, CIQ
Model Number: TKM370TTT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Price is negotiable
Packaging Details: Nude
Delivery Time: 20-25 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Get Best Price Contact Now

Detail Information

Type: Tipper Semi Trailer / Dump Semi Trailer Max Payload: 60T
Suspension: Mechanical/Air Bag/Bogie King Pin: JOST 90#
Axle: FUWA Brand,13T Axle Function: Transport Coal,mining Cargo,stone,sand
Brake System: WABCO Valve With Big Chamber
High Light:

semi truck dump trailer

,

tractor trailer dump trailer

Product Description

50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone

50 Tons Tipper Trailer Dump Semi Trailer Used For Transport Sand Stone



1. 3 Axles Dump Semi Trailer Specification.



-. Dump trailers Axle: FUWA / BPW, Tri axle



-. Dump trailers volume: 30-45m3



-. Semi-trailer type rear end dump trailers.



-. Factory price and fast delivery time



Tare Weight 7.85T-8.5T
Payload 60T(25m³--37m³)
Axle Weight Load 16T FUWA axle
Axle Three, FUWA Brand
Suspension Thicken mechanical suspensions
King Pin 50#/90# traction pin
Dimensions(L*W*H) 11280*2495*3970(Outside)
10500*2300*1500(Inner)
Rim 8.5-20 * 12 pieces
Lifting system Four or five ø125lifting cylinders, one piece of ø140 displacement
cylinder
Steel Spring 10 pieces
Tire specs 12.00R22.5
Number of Tire 12 pieces
Spare Tire Carriers 2 pieces
Frame: (specs. and materials) Main frame is height 500mm,
Frame Beam Upper plate is 16mm, lower plate is 18mm, middle is double 6mm.
side beam is 16# U steel. Left side: 3 or 4 pcs French door;
Right side: 3 or 4 pcs hanging door. With19 pcs lock bar.
Frame Floor The Thickness is 3mm flat bed
Brake Kemi Brand of China
Brake Chamber 6 double chamber
ABS Kemi Brand of China (4S/2M)
Electrical Voltage 24V
Receptacle 7 ways (7 wire harness)
Light color Side marker lamp Orange
Rear lamp Red
Turn signal lamp Orange
Legs Jost D200T



50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone 0



50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone 1



-2. FAQ



-. Terms of paymemt.

30% as the deposit by T/T, 70% balance before delivery.



-. What’s your MOQ?

One unit trailer or truck. But suggest two trailers one time to save the freight.



-. Whats your delivery time.

20-25 working days after received the deposit.



-. What is your terms of shipment?
The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.



-. Can you accept the custom made?

Definitely! We could design the trailer according to your request.



-. What’s your warranty?

All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.



50 Tons Tipper Dump Semi Trailer 30-45m3 Volume For Transport Sand Stone 2
