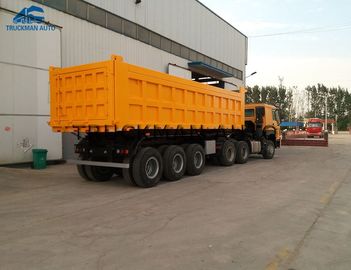

Heavy Duty Semi Trailer Bottom Dump Truck 50 Tons With Hydraulic Lifting
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CTN, CIQ |
| Model Number: | TKMDST350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Pcs / One Month |
|
Detail Information |
|||
| Type: | Tipper Semi Trailer | Size: | By Customer Needs |
|---|---|---|---|
| Max Payload: | 50T | Suspension: | Mechanical Suspension/Air Suspension |
| Axle: | FUWA Brand | Brake System: | WABCO Valve With 6 Big Chamber |
| Lifting Type: | HYVA Brand | ||
| High Light: | tractor trailer dump trailer,semi tipper trailer |
||
Product Description
Heavy Duty Semi Trailer Bottom Dump Truck 50 Tons With Hydraulic Lifting
Heavy Duty 50 Tons Dump Tipping Semi Trailer With Hydraulic Lifting
1. Main Specification For Dump Trailer.
-. HYVA brand hydraulic lifting.
-. With bottom 8mm, side 6mm support loading bauxite, coal, manganese ore etc.
-. WABCO and ABS system for the trailer in time brake.
-. The trailer adopt the I type welding design, main material is Q345B.
| Parameter | |
| Payload | 30000KG -80,000kg |
| Tare weight | 85,00kg--15000KG |
| Dimension | 8500 to 11000x2500x3250mm+(with sidewall 1500mm) |
| Wheel base | 1310mm |
| Fabric | |
| Main beam | Beam height 500mm, upper plate-14mm, bottom plate double 16mm, middle plate-10mm, made of Q345 steel (Adjust configuration according to load capacity) |
| Cross/side beam | Q345B, channel steel |
| Box Thickness(mm) | Bottom: 8mm, Side: 6mm |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will |
| Tool box | 1piecs |
| Welding | Long member beams be CO2 Arc welded by 80% penetration on external side and bead.All |
| other parts welding with MAG process | |
| Parts | |
| Axle | 3/4/5/6 pieces x13/16ton FUWA /BPW Axle |
| Suspension System | Leaf spring suspension / air suspension |
| Leaf spring | 90(W)mm*13(thickness)mm*10Layers |
| Tyre | 11R20/12R20/315/80R22.5 |
| Rim | 8.0-20/9.0-20/9.5R22.5 |
| King pin | JOST King Pin bolt-in type 2’ or 3.5’ interchangeable |
| Landing gear | Double speed,external 28tons, |
| Hydraulic Cylinder | HYVA |
| Brake system | Dual line pneumatic brake system with WABCO emergency relay valve |
| Electrical system | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
| Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
-2. Delivery Video Of Dump Trailer.
