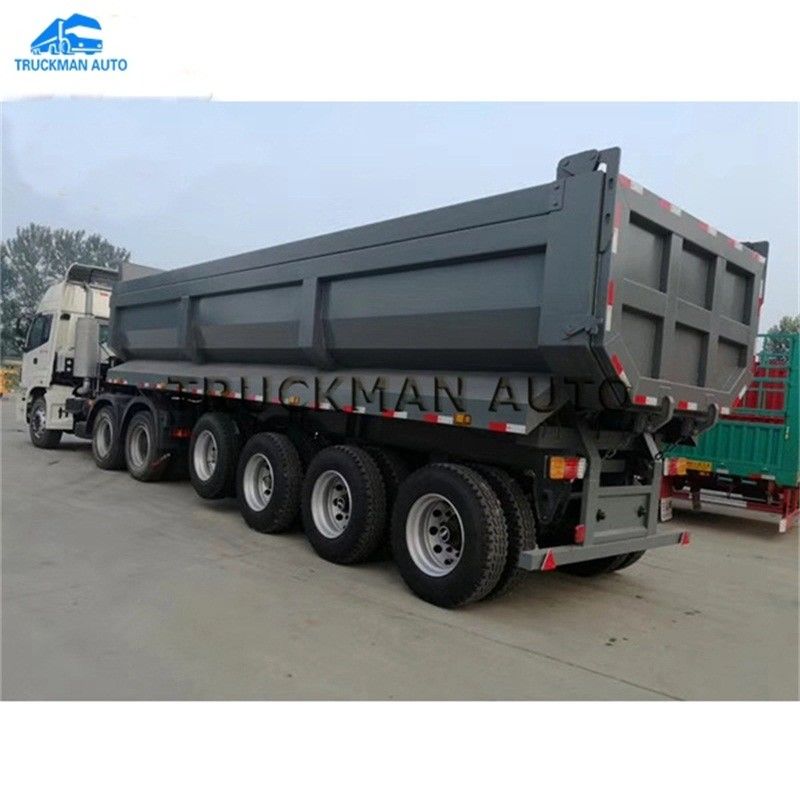

U Shape Tractor Trailer Dump Trailer , Load Trail Dump Trailer For Ghana Hyva Brand Lifting
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN AUTO |
Certification: | CTN, SGS, BV, CHINA |
Model Number: | TKM50KTTS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Price is negotiable |
Packaging Details: | nude |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Type: | Tipper Semi Trailer | Size: | 11000mm*2500mm*3100mm |
---|---|---|---|
Max Payload: | 50T | Suspension: | Mechanical Suspension |
King Pin: | 2" Or 3.5" JOST | Axle: | FUWA Brand,13T Axle |
High Light: | tractor trailer dump trailer,semi tipper trailer |
Product Description
4 Axles U Shape 50 Tons Coal Bauxite Transport Dump Trailer For Ghana HYVA Brand Lifting
1. Main Specification For The 4 Axles Dump Trailer.
-. The dump trailer with front axles could lifting when only loading 40 tons.
-. With U shape design, easily unloading goods.
-. HYVA brand hydraulic lifting system for quickly unloading.
-. Adopt the FUWA, LINGLONG, HYVA brand spare parts.
Outer side | 11000x 2500 x 3850mm | |||
Loading Capacity (Ton) | ≤ 50T | |||
Axles | 4 axles, 4x13 tons. front axls could lifting | |||
Tire | 12.00R22.5, 13pieces Triangle or double coin brand | |||
Rim | 9.00-22.5, 13pieces China Brand | |||
Suspension | Mechanical suspension (America Type) + air suspension | |||
Spring leaf | 90(W)mm*13(Thickness)mm *10pices, heavy duty type | |||
King pin | JOST brand 2.0 or 3.5 inch bolts type | |||
Support leg | 28T or JOST brand E100 | |||
Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, | |||
down plate is 16mm ; Material is Q345B Steel . | ||||
Plateform | 3mm diamond plate steel | |||
Side beam | 16# channel steel | |||
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
-2. TRUCKMAN Brand Dump Trailer Video.
