XCMG ZL50GN 5 Tons Payloader Heavy Construction Machinery
Product Details:
Place of Origin: | JIANGSU, CHINA |
Brand Name: | XCMG |
Certification: | SGS, BV, CIQ, SONCAP |
Model Number: | ZL50GN |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiable |
Packaging Details: | Nude |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Total Hydraulic Cycle Time: | 10.5S | Hydraulic Cycle Time-Raise: | 6S |
---|---|---|---|
Max.Breakout Force: | 175Kn | Dump Clearance At Maximum Lift: | 3450mm |
High Light: | XCMG Heavy Construction Machinery,ZL50GN Heavy Construction Machinery,162kw Xcmg Payloader |
Product Description
XCMG ZL50GN 5 Tons Payloader Heavy Construction Machinery
XCMG ZL50GN 5 Tons Payloader Heavy Construction Machinery
-1. XCMG ZL50GN 5 Tons Payloader Main Detail.
XCMG ZL50GN 5 tons payloader is the latest cross-generation product developed ,the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.
-2. XCMG ZL50GN 5 Tons Payloader Main Specification.
Description | Unit | Parameter value |
Rated Operating Load | kg | 5000 |
Bucket Capacity | m³ | 2.5~4.5 |
Machine Weight | kg | 17500±300 |
Dump Clearance At Maximum Lift | mm | 3100~3780 |
Reach At Maximum Lift | mm | 1100~1220 |
Wheel Base | mm | 3300 |
Tread | mm | 2250 |
Max.Breakout Force | kN | 175±5 |
Max.Horse Power | kN | 160±5 |
Hydraulic Cycle Time-Raise | s | ≤6 |
Total Hydraulic Cycle Time | s | ≤10.5 |
Min. Turning Radius Over Tyres | mm | 5925±50 |
Articulation Angle | ° | 38 |
Gradeability | ° | 30 |
Tyre Size | / | 23.5-25-16PR |
Engine Model | / | WD10G220E21 |
Rated Power | Kw | 162 |

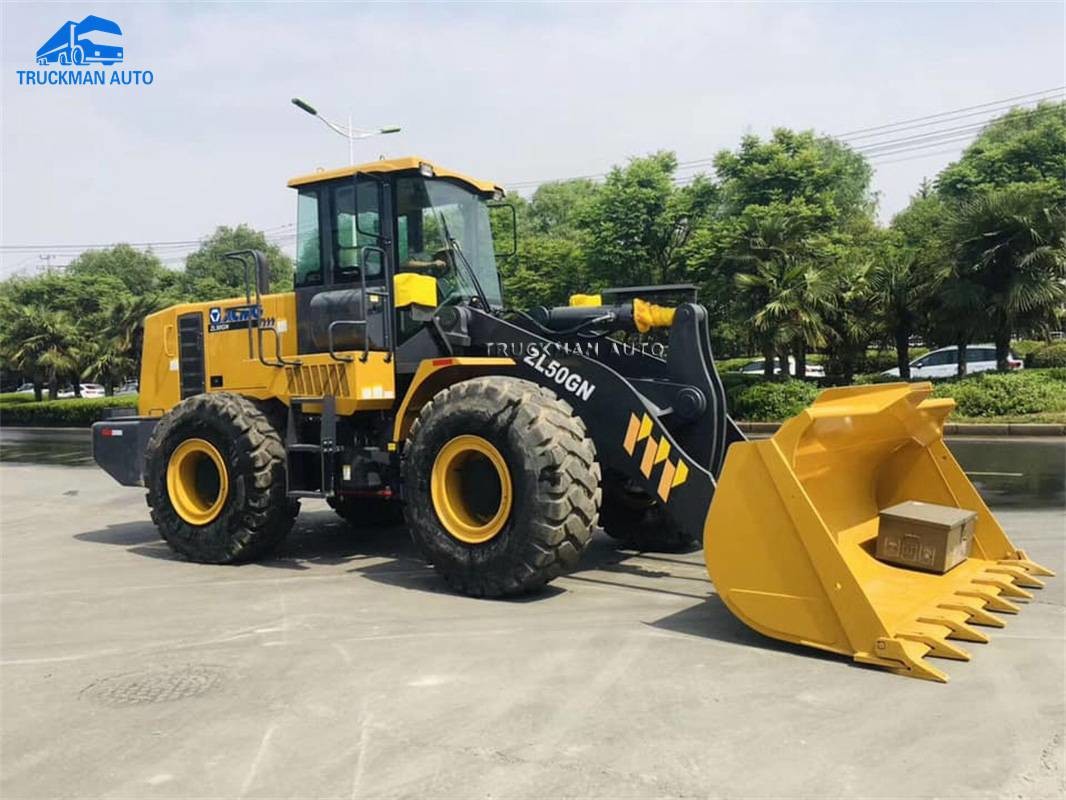

-3. XCMG ZL50GN 5 Tons Payloader Detail Picture.
160kN breakout force handle all kinds of materials with ease, ≥3.5m high damping capacity handle the severe conditions with ease.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
