Weichai Engine 5000kg XCMG Wheel Loader For Railways
Product Details:
Place of Origin: | China |
Brand Name: | XCMG |
Certification: | SONCAP,FORM M,BV,SASO,SGS,CIQ, |
Model Number: | ZL50GN |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Dollars 45000-47000 Unit |
Packaging Details: | Nude |
Delivery Time: | 25 Days |
Payment Terms: | T/T |
Supply Ability: | 500 Unit Per Month |
Detail Information |
|||
Model: | ZL50GN | Operation Weight: | 5 Tons |
---|---|---|---|

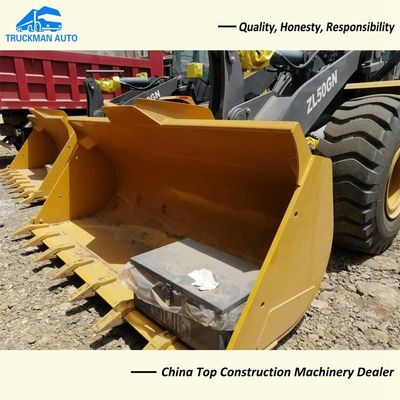

Bucket Volume: | 3CBM | Engine: | Weichai |
Emission: | Euro 2 | Color: | Yellow |
High Light: | 5000kg XCMG Wheel Loader,Weichai Wheel Loader,3CBM Heavy Construction Machinery |
Product Description

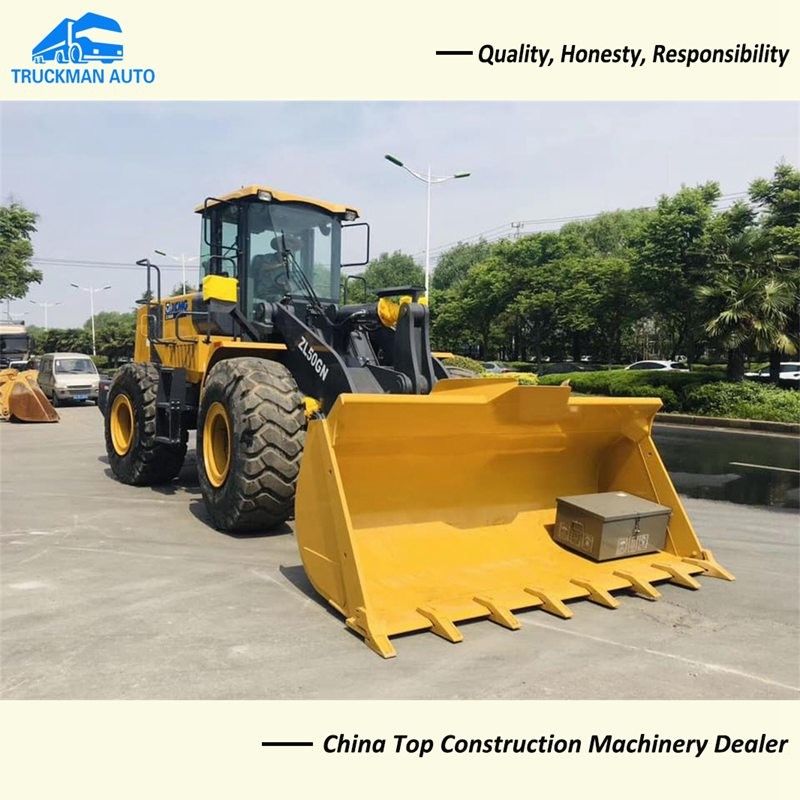

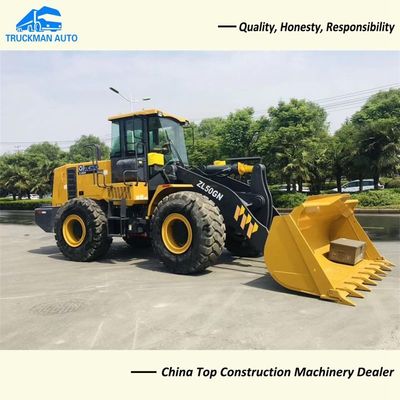

Weichai Engine 5000kg XCMG Wheel Loader For Railways
5 Tons XCMG Wheel Loader
What is 5 Tons XCMG Wheel Loader?
Wheel Loader is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime and coal, and can also be used for ore , Hard soil, etc. for light shovel and digging operations. Different auxiliary working devices can also be used for bulldozing, lifting and loading and unloading of other materials such as wood.
In road construction, especially in the construction of high-grade highways, loaders are used for filling and excavating roadbed works, asphalt mixtures and aggregate and loading of cement concrete yards. In addition, it can also carry out operations such as pushing soil, leveling the ground, and pulling other machinery. Because the loader has the advantages of fast working speed, high efficiency, good maneuverability, and light operation, it has become one of the main types of earth and stone construction in engineering construction.
5 Tons XCMG Wheel Loader Mainly Specs:
Basic performance
Operating weight of the whole machine (kg) 17500±300
Rated load (kg) 5000
Bucket capacity (m³) 2.5~5.0
Unloading height-unloading angle is 45°(mm) 3100~3720
Unloading distance-unloading angle is 45°(mm)1100~1220
Digging force (breaking force) (kN) 170±5
Rated load (tons) 3-5 tons
engine

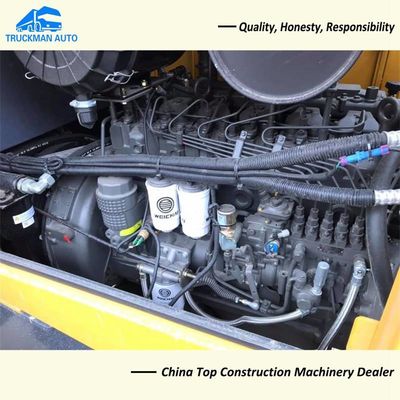

Engine model WD10G220E23
Rated power (kw/rpm)162/2000
Gearbox
Maximum speed (km/h) 38
Driving speed 1st gear (km/h) 0~11.5/16.5
Driving speed 2nd gear (km/h) 0~38
Drive axle
Drive axle swing angle (°)35

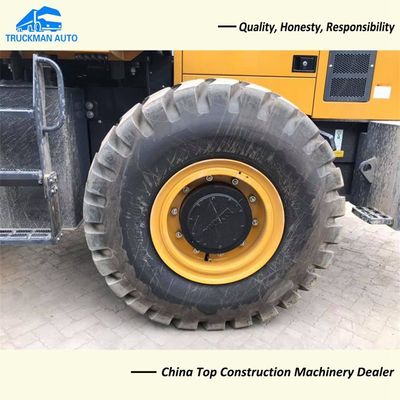

Tire specification 23.5-25-16PR
steering system
The minimum turning radius of the outer wheel centerline is 6400±50
Working device operating time
Lift (s)≤6.5
Sum of three terms (s)≤11
technical parameter
Maximum traction (kN) 165±5
Maximum climbing ability (°)30
Overall size
Overall length (mm) 8165
Overall width (mm) 3016
Overall height (mm) 3485
Wheelbase (mm) 3300
Wheel base (mm) 2250
