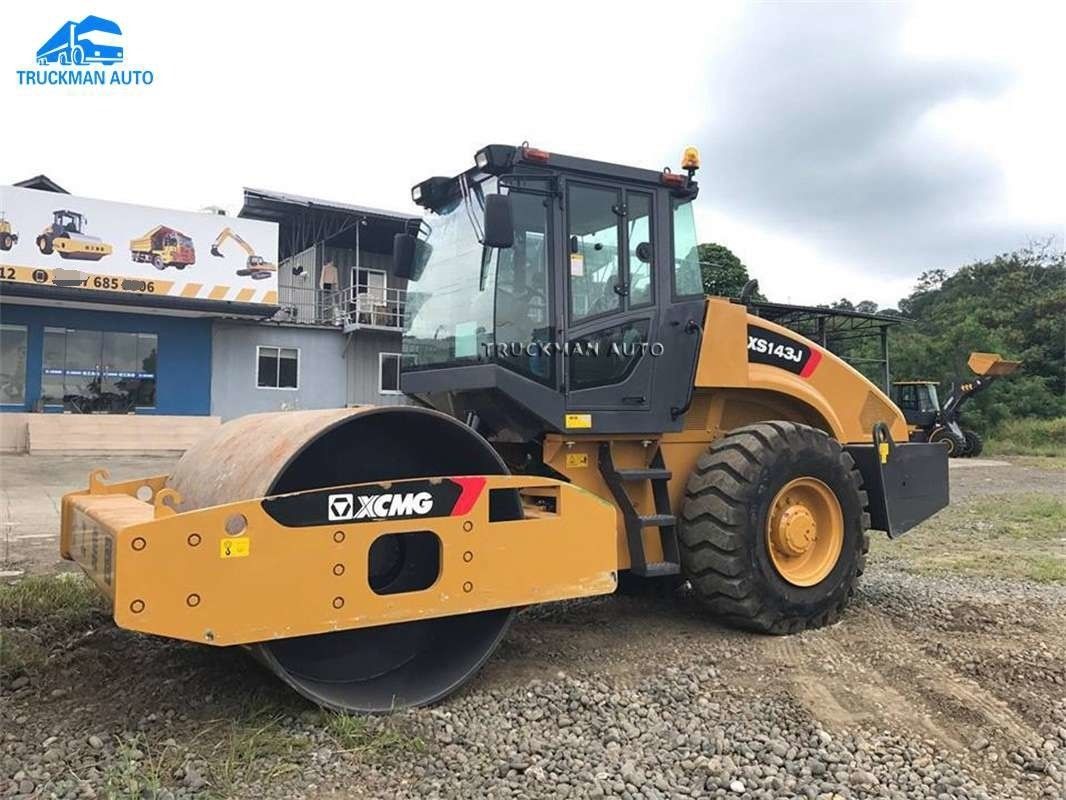

Single Drum 103kW Heavy Construction Machinery 14 Tons Vibratory Compactor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XCMG |
| Certification: | SGS, BV, CIQ, ISO9000 |
| Model Number: | XS143J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Dimension(L*W*H): | 6010*2300*3200mm | Exciting Force: | 274/190KN |
|---|---|---|---|
| Wheelbase: | 3040mm | Travel Speed: | 2-14km/h |
| Weight: | 14000kg | Grade Ability: | 30% |
| High Light: | 103kW Heavy Construction Machinery,190KN Heavy Construction Machinery,14 Tons Vibratory Compactor |
||
Product Description
Single Drum 103kW Heavy Construction Machinery 14 Tons Vibratory Compactor
Single Drum Heavy Construction Machinery XCMG 14 Tons Vibratory Compactor
-1. XCMG 14 Tons Vibratory Compactor Main Detail.
XCMG 14 tons vibratory compactor is NO.1 export model roller in China, fairly used for road, deck, port, warehouse etc construction. And the transmission adopt the XCMG mature tech, easier operating. Also have service center in local, the maintenance very convenient.
-2. XCMG 14 Tons Vibratory Compactor Main Specification.
| Item | Description |
| Product Name | XCMG 14 Tons Vibratory Compactor |
| Operating Weight | 14000kg |
| Load Applied On Front Drum | 6700kg |
| Static Linear Load | 315N/cm |
| Theoretical Gradeability | 30% |
| Min. Outer Turning Radius | 6800mm |
| Vibration Frequency | 28/33Hz |
| Exiting Force (high/low amplitude) | 274/190kN |
| Engine Model | SC4H140.1G2, 103kW |
| Fuel Tank Capacity | 310L |
-3. XCMG 14 Tons Vibratory Compactor Shipment Picture.
All our XCMG vibratory compactor will cover the rain clothes, avoid the rusty issue during the transportation.
