Single Drum XCMG 14 Ton XS143J Mechanical Vibratory Roller Compactor With Pad Foot

Single Drum XCMG 14 Ton XS143J Mechanical Vibratory Roller Compactor With Pad Foot

Product Details:

Place of Origin: CHINA
Brand Name: XCMG
Certification: SGS, BV, CIQ, FORM E
Model Number: XS143J

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Nude
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Get Best Price Contact Now

Detail Information

Engine Model: SC4H140.1G2 Compaction Width: 2130mm
Theoretical Gradeability: 30% Minimum Turn Radius: 6800mm
Exciting Force: 274/190kN Vibration Frequency: 28/33hz
High Light:

XS143J Mechanical Vibratory Roller Compactor

,

XCMG Mechanical Vibratory Roller Compactor

,

14 Ton single drum vibratory roller

Product Description

Single Drum XCMG 14 Ton XS143J Mechanical Vibratory Roller Compactor With Pad Foot

-1. XCMG 14 Ton XS143J Mechanical Vibratory Roller Information.



The XCMG 14 Ton XS143J mechanical vibratory roller H-series, water-cooling, four cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction.



ltem Unit XS143J
Service mass kg 14000
Distributed mass of driving wheel kg 7300
Distributed mass of vibration wheel kg 6700
Static line load N/cm 315
Vibration frequency Hz 28/33
Theoretical amplitude mm 1.9/0.95
Exciting force kN 274/190
Range of speed Forward I km/h 2.85
II km/h 5.08
III km/h 11.17
Backward I km/h 2.88
II km/h 5.02
Wheel base mm 3040
Compaction width mm 2130
Theoretical gradeability % 30
Minimum turn radius mm 6800
Diameter of vibration wheel mm 1523
Minimum ground clearance mm 431
Engine Model   SC4H140.1G2
Rated speed r/min 1800
Rated power kW 103
Overall dimension (LxWxH) mm 6150*2300*3200

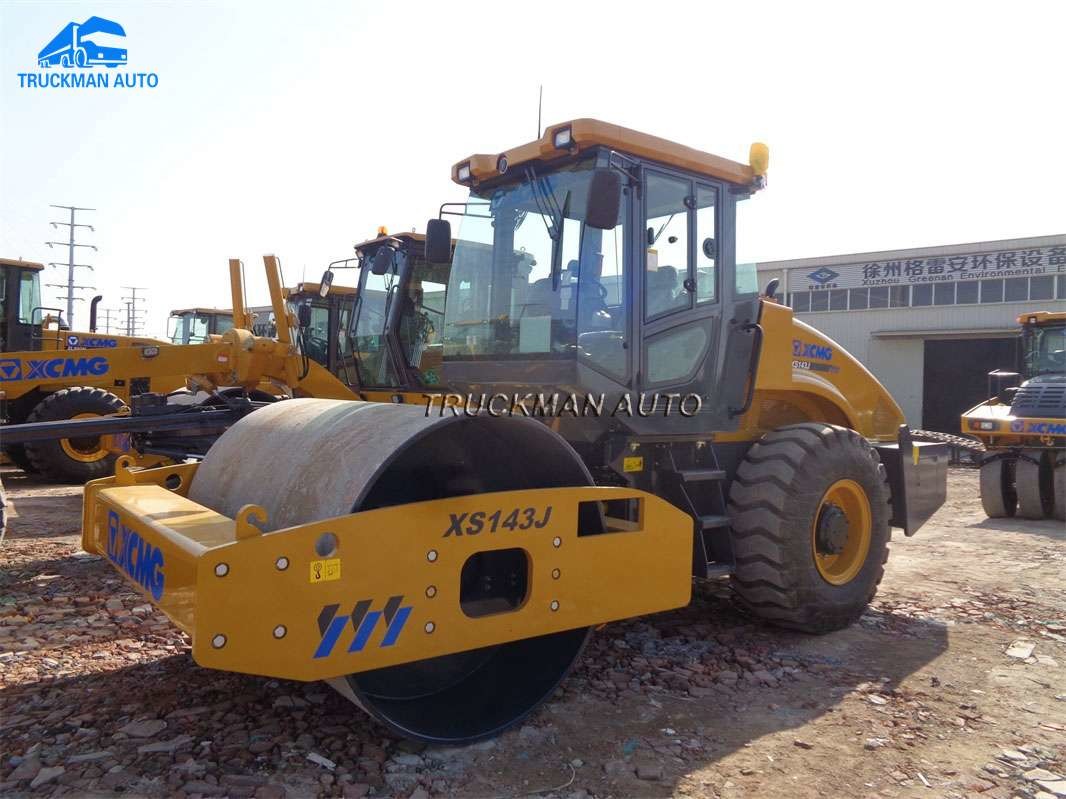

Single Drum XCMG 14 Ton XS143J Mechanical Vibratory Roller Compactor With Pad Foot 0



-2. XCMG 14 Ton XS143J Mechanical Vibratory Roller Delivery Video.



Single Drum XCMG 14 Ton XS143J Mechanical Vibratory Roller Compactor With Pad Foot 1



Our XCMG 14 tons XS143J mechanical vibratory roller delivery can adopt the BULK CARGO, RORO and CONTAINER vessel.

With the good anti rusty work and fast delivery time.
