1360mm Lift LW600KN Wheel Loader With 3m3 Bucket
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XCMG |
| Certification: | SGS, BV, CIQ |
| Model Number: | LW600KN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Bucket Capacity: | 3.0～4.5m³ | Machine Weight: | 20000±300kg |
|---|---|---|---|
| Reach At Maximum Lift: | 1200～1360mm | Max.breakout Force: | 205kN |
| Max.horse Power: | 174kN | Tyre Size: | 23.5-25 |
| High Light: | LW600KN Wheel Loader,1360mm Wheel Loader,3m3 Heavy Construction Machinery |
||
Product Description

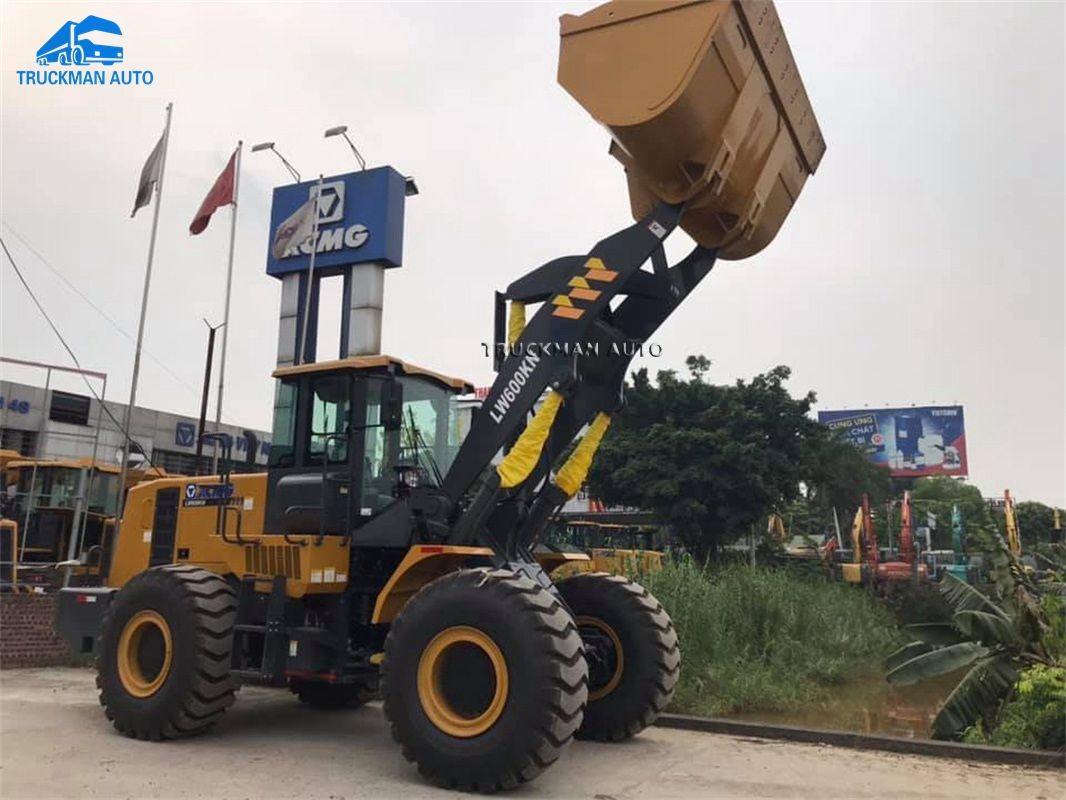

1360mm Lift LW600KN Wheel Loader With 3m3 Bucket
XCMG LW600KN Wheel Loader With 3m3 Bucket
-1. XCMG 6 Ton Front End Wheel Loader Main Information.
XCMG LW600KN wheel loader is rooted in the customers’ needs and based on the international R&D platform to thoroughly improvethe product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability and is a preferential machinery product for the production organization in the fields of ports, mines, engineering constructions, and logistics.
| Description | Unit | Parameter value |
| Rated operating load | kg | 6000 |
| Bucket capacity | m³ | 3.0～4.5 |
| Machine weight | kg | 20000±300 |
| Dump clearance at maximum lift | mm | 3170～3750 |
| Reach at maximum lift | mm | 1200～1360 |
| Wheel base | mm | 3350 |
| Tread | mm | 2265 |
| Max.breakout force | kN | 205 |
| Max.horse power | kN | 174 |
| Hydraulic cycle time-raise | s | ≤5.9 |
| Total hydraulic cycle time | s | ≤10.9 |
| Min. turning radius over tyres | mm | 6005 |
| Articulation angle | ° | 38 |
| Gradeability | ° | 28 |
| Tyre size | 23.5-25 | |
| Overall machine dimension L×W×H | mm | 8505×3220×3515 |
| Model | SC11CB240.1G2B | |
| Rated Power | kW | 178 |
| Fuel Tank | L | 250 |
| Hydraulic Tank | L | 210 |
| Travel Speed | km/h | 6-34 |
-2. XCMG 6 Ton Front End Wheel Loader Bucket Picture.
The 6 tons front end wheel loader heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The 6 tons front end wheel loader large rock bucket with capacity of 3-4.5m³ is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
