Drawbar Full Trailer Truck 2 Axle 10000 Liter Loading
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM E |
| Model Number: | TKM140LLT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Loading Tons: | 10000 Liter | Axle: | 2x13000kg, BPW Brand |
|---|---|---|---|
| Tire: | 12.00R20, 8 Pcs | Suspension: | 8mm Thickness |
| Compartment: | 2 Pcs | Material: | Carbon Steel |
| High Light: | Drawbar Full Tank Trailer,2 Axle Full Trailer Truck,10000 Liter Full Trailer Truck |
||
Product Description

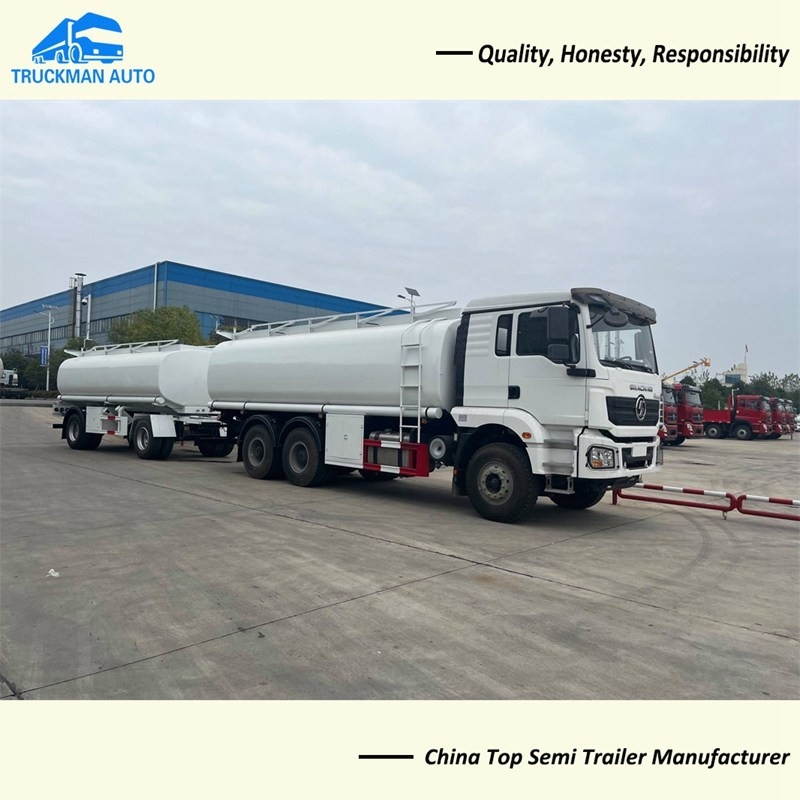

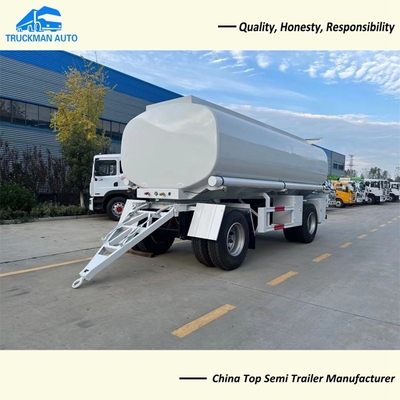

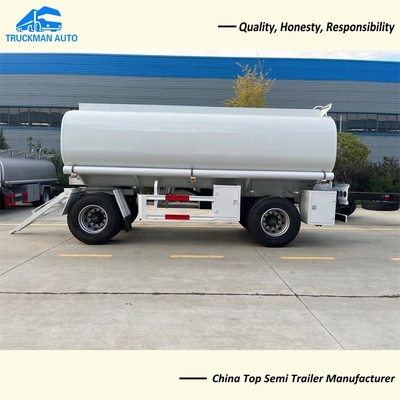

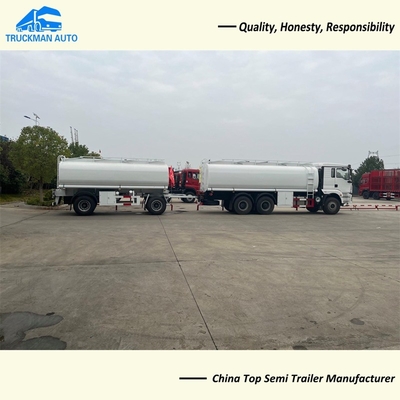

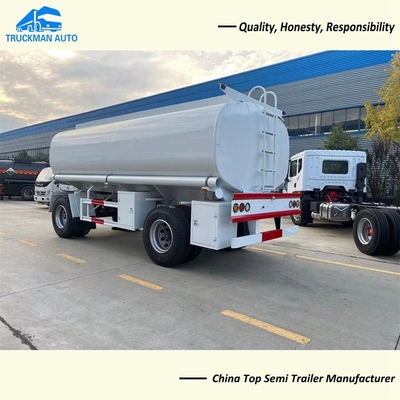

Drawbar Full Trailer Truck 2 Axle 10000 Liter Loading
2 Axle Drawbar Full Tank Trailer For Ethiopia
-1. Drawbar Full Tank Trailer Detail.
Drawbar full tank trailer suitable for liquid transport, like oil, gasoline etc. It’s mainly
design for Ethiopia, Djibouti, East African countries etc.
-. The drawbar fuel tank trailer relies on the truck in front to provide traction,
and the hook connecting the truck adopts European standard tech.
-. The axle can optional FUWA, BPW, ZY brand, 13 tons and 16 tons available.
-2. Drawbar Full Tank Trailer Specification.
| Description | Parameter Value |
| Product Name | Drawbar Full Tank Trailer |
| Application | For liquid transport |
| Axle | 2 axle, 2x13 tons. 3 axle available |
| Suspension | Heavy duty 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx4sets |
| Tire | 12.00R20, 8 pcs |
| Rim | 16mm thickness |
| Support Leg | JOST brand, 28 tons |
| Tractor Pin | JOST brand, 90# heavy duty version |
| Tanker Body | 10000 liter, 2 pcs compartment |
| Dimension | 6500x2500x3650mm |
The drawbar full tank trailer specification only for your reference, we will recommend
other model drawbar full tank trailer according to your request.
-3. Drawbar Full Tank Trailer Tank Body Detail.
Drawbar fuel tank trailer use the carbon steel material, adopt the automatic submerged arc
welding tech. Every compartment with separate discharge valve, and install subsea valve
on bottom of tanker body, prevent emergencies.
