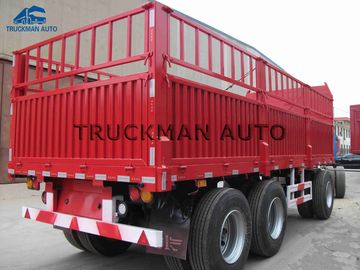

20ft Container Full Trailer Truck Loading Capacity 35 Tons With 3 Axles
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN |
Certification: | SGS, BV, CTN |
Model Number: | TKMFCTL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Units |
---|---|
Price: | Price is negotiable |
Packaging Details: | Nude |
Delivery Time: | 20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Units Per Month |
Detail Information |
|||
Axles: | 3 Axles, FUWA Brand | Product Name: | Container Full Trailer |
---|---|---|---|
Support Leg: | JOST Brand | Brake System: | WABCO Brand |
Tire: | 12.00R20,315/80R22.5/13R22.5 | Loading Capacity: | 35 Tons |
High Light: | fuel tanker trailer,full trailer |
Product Description
20ft Container Full Trailer Truck Loading Capacity 35 Tons With 3 Axles
-. Main Specification For The Full Cargo Trailer.
-. With 6 pcs container lock for transport 20FT container.
-. The fence could remove and the height is 800+600mm
-. Easily operating and maintenance
-. Use good brand spare parts, such as FUWA, JOST, WABCO etc.
Chassis | |
Main Beam |
-1. “I” structure design.Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged - Arc processes -2. Main beam height: 500mm -3. Main beam upper plate: 14mm -4. Main beam middle plate: 8mm -5. Main beam lower plate: 16mm -6. Platform thickness: 4mm |
Cargo Box |
-1. Fence could remove; -2. Side 1.5mm, bottom 3mm; checkered plate -3. Upright column: 4mm; -4. Edge beam: 6mm; -5. With stronger hooks, container lock; |
Landing Gear | JOST E100 one side Operation, 28 tons |
King Pin | One unit of 90# standard bolt type king pin JOST brand |
Running Gear | |
Suspension | American type mechanical suspension; |
Leaf Spring | 120mmx16mmx10 pcs, 6 sets; |
Axle | FUWA brand, 3x13T axles; |
Wheel Rim | 9.0x12 units, 18mm thickness; |
Tire | 12R22.5 LINGLONG brand 12pcs; |
ABS System | WABCO brand brake system; |
Electric System | |
Electric | 24v, 7 core socket; |
Lights | LED lights standard; with protect cover; |
Electric Wire | Factory Standard; |
Others | |
Spare Tire Carrier | 1 pcs |
Mud Guard | Steel material, one whole; |
Tool Box | Standard; |
Others | One repair tool box; |
