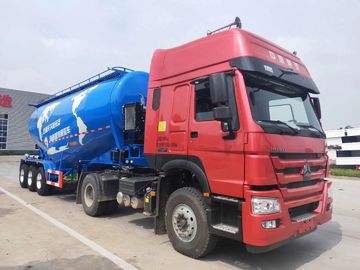

60 Tons Bulk Cement Tanker , Cement Tanker Truck 3 Axles With Wechai Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | TRUCKMAN |
| Certification: | SGS,BV,CIQ,ECTN,CO,FORM F |
| Model Number: | TMA360TWT120CTT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Naked |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Units Per Month |
|
Detail Information |
|||
| Material: | Mn Steel Q345 | Tank Volume: | 45cbm |
|---|---|---|---|
| Tank Motor: | Wechai | Tires: | Triangle |
| Brakes: | KTL | Color: | Blue |
| High Light: | cement tanker truck,bulk cement tanker trailer |
||
Product Description
60 Tons Bulk Cement Tanker , Cement Tanker Truck 3 Axles With Wechai Motor
What is Cement Tanker trailer?
The powder and material transportation vehicle is also called bulk cement truck, which is composed of special automobile chassis, bulk cement truck tank body, gas pipeline system, and automatic unloading device. It is suitable for bulk transportation of powdered dry materials such as fly ash, cement, lime powder, ore powder, granulated alkali, etc. It is mainly used in cement plants, cement warehouses and large construction sites, which can save a lot of packaging materials and loading and unloading labor.
The powder material transportation vehicle is composed of a car chassis, a power take-off, an air compressor, an air pipe, a tank body, and an unloading device. It is suitable for bulk transportation of powdered dry materials such as fly ash, cement, lime powder, ore powder, granulated alkali, etc. It is mainly used in cement plants, cement warehouses and large construction sites, which can save a lot of packaging materials and loading and unloading labor.
60 Tons Cement Tanker Trailer Suppliers 3 Axles With Wechai Motor
| Model No. | TMA360TWT120CTT |
| Axles | 16T*3,Fuua Brand |
| Tires | Triangle 12.00R20,12+1 pcs |
| Brakes | Air brake with KTL valve. |
| Electrics | 24V, LED lights,7 Core Socket |
| Tank Motor | Wechai brand |
| Tank Body | Thickness3mm,Head seel 5mm |
| Suspension | Spring Steel,10*120*90mm each spring |
| Landing Gear | 38T*2 |
| Kingpin | 2" or 3.5" Jost Brand |
| Paintig | Ball Blasting and 3 coats |
| Others | Factory Standard |
Tanker Body Details:
The tank structure is composed of a head, a variable cross-section tank, and a main tank. The upper and lower halves of the main tank are semi-circular, connected in the middle by a straight section, and the connection with the head is over-variable. The structure of the fluidization system and The structure of a normal straight round tank is the same, and it is easier to manufacture. The main tank needs cutting plates, welding, welding, and overall roll molding. The variable-section tank requires gas cutting and roll molding. After the tank body and the variable-section tank body are docked, it can be docked with the head. Generally, the volume can be increased by about 2-3 cubic meters compared with the volume of a normal straight tank body.
Pipe Systems:
The front and rear air chambers of the bulk cement truck are each provided with an air inlet pipe, and the functions of simultaneous opening and separate control can be achieved by ball valves respectively.
The working principle of the system is as follows: The working power is drawn from the car gearbox, and the air compressor is driven by the transmission device. The compressed air generated enters the air chamber through the control pipeline, so that the powder and granular materials in the tank are fluidized. When the pressure reaches 0.196Mpa, the discharge butterfly valve is opened to realize discharging.
working principle
The power is used to drive the air compressor, and the compressed air is sent to the air chamber at the lower part of the sealed tank through the pipeline, so that the powder and particles on the fluidized bed of the air chamber are suspended into a fluid state. Valve, the fluidized material is conveyed through the pipeline for transportation.
What is our Advantages:
1. Production capacity over 500 Units Per Month
2. Tech support available
3. Dealership will be wanted
4. Professional spare parts service
5. Matured euro technology
6. Low consumption
7. Easily and cheap maintenance
8. Customized available
9. Short delivery time
10. Resonable and professional advices on truck specs
FAQ:
Where is your company location?
Jinan Truckman Automobile Co.,Ltd located in Jinan City Shandong Provoince China,which is called spring city cause of its famous spring Water. Jinan City is a city of Heavy duty truck where the Sinotruck is.So Jinan has a advantage of Sinotruk and Semi Trailers exporting.
1.What is your Terms of Payment?
We accept TT Terms of payment, 30% in advance as deposit,balance before shipment.
2.What is the Terms of Shipment?
RORO/BULK/FLAT ROCK/Container for your option
3.How can I visit your Company?
you can fly to Guangzhou city then transit to Jinan City by air that need a 2 and half hours
you can fly to Beijing city then transit to Jinan City by air needed 1 hour or Bullet Train that need 2 Hours
you can fly to Shanghai city then transit to Jinan City by air needed 1 and half hours or Bullet Train needed 4 Hours
4.Which China Seaport you will load?
Tianjin,Qingdao,Shanghai,Lianyungang port and All China Border Cities.
5.What is the warranty?
1 year or 100000 kms warranty once engine assy,gearbox assy,chassis assy and cabin assy come to quality problem after our tech center confirm we will take charge of it exception human beings operation.
