3 Axles 50 Tons Cement Bulk Carrier Truck Optional Volume Quick Loading Unloading
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CTN |
| Model Number: | TKMOTT360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Pcs / One Month |
|
Detail Information |
|||
| Type: | Bulk Powder Tanker Trailer | Axles: | 3x13 Tons, FUWA |
|---|---|---|---|
| Support Leg: | JOST Brand E100 | Loading Tons: | 50 Tons |
| Tanker Volume: | 35-55m3 | Others: | WEICHAI Engine |
| High Light: | cement powder tanker trailer,bulk cement tanker trailer |
||
Product Description

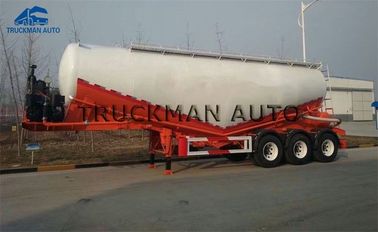

3 Axles 50 Tons Cement Bulk Carrier Truck Optional Volume Quick Loading Unloading
3 Axles 50 Tons Cement Bulk Powder Tanker Trailer Volume Optional
Main Specification For The Cement Bulk Tanker Trailer.
-. With 35-55m3 volume tanker body.
-. Quick loading and unloading bulk cement.
-. Integrated tank synthesis, scientific fluidized bed design and reasonable layout can not
only effectively shorten the unloading time, but also improve the utilization of tank volume,
so that the ash rate is greatly reduced.
| Weight: | Loading Capacity | 45T |
| Axle Weight Load | 13T | |
| Specification: | Axle number | 3 Axle |
| Axle Brand | FUWA | |
| Suspension | Common mechanical | |
| King Pin | 2" or 3.5" traction pin | |
| Dimensions (LxWxH) | 13000*2500*4200mm | |
| Support legs | 28T | |
| Wheel Rim | 9.0-22.5 | |
| Wheelbase | 7180+1310+1310mm | |
| Steel Spring | 10 pieces per axle | |
| Tank body & end | St-37/4mm steel&6mm steel sheet Shape:V type | |
| Engine | Diesel engine:weichai brand model:4102.44 KW | |
| Discharge valve & pipe | 4” disc valve&4” seamless steel tube | |
| Air-charging system | 2” main hole. 2” check valve.1.5” safe valve.0.4Mpa.gauge | |
| Quadratic blow | 1” diameter check valve | |
| Discharge cover | 2-4 sets of 100mm discharge valves | |
| Landing Gear | Manual operating, Heavy duty landing gear (Brand Optional) | |
| Manhole cover | 500mm manhole cover 2 sets with 2 breather valve | |
| Accessories | 1 Set standard tool box | |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| Painting | 1coat of anti corrosive primer, twice coats of final paint | |
| compressor | BOHAI brand 14M3 | |
| Tire: | Tire spe. | 12R22.5 Chinese brand |
| Number of Tire | 12 pieces | |
| Spare Tire Carriers | 2 pieces | |
| Frame: (specs. and materials) | ||
| Main beam | The height of the beam is 500mm; | |
| Down plate is 16mm;Middle plate is 8mm. | ||
| Tank body | 5mm steel plate, head and back head made of 6mm steel plate | |
| the shape can be column or TV square shape | ||
| Brake: | Brake Chamber | Six big chamber( Brand Optional ) |
| Brake system | Dual Line Brake system (ABS ) | |
-2. Our Factory.
-3. Shipment Picture For The Cement Tanker Trailer.
Shipment By The Container Flat Rack Vessel.
Shipment By Bulk Cargo Vessel
