50m3 Cement Tanker Trailer Optional Shape With 50 Tons Loading Capacity
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN |
Certification: | SGS, BV, CTN |
Model Number: | TKM370TK |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Price is negotiable |
Packaging Details: | Nude |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Type: | Cement Tank Trailer | Max Payload: | 50T |
---|---|---|---|
Suspension: | Leaf Spring Suspension | King Pin: | 3.5" JOST Brand |
Axle: | FUWA,3*13ton | Function: | Transport Bulk Cement Powder |
High Light: | cement powder tanker trailer,cement tanker truck |
Product Description

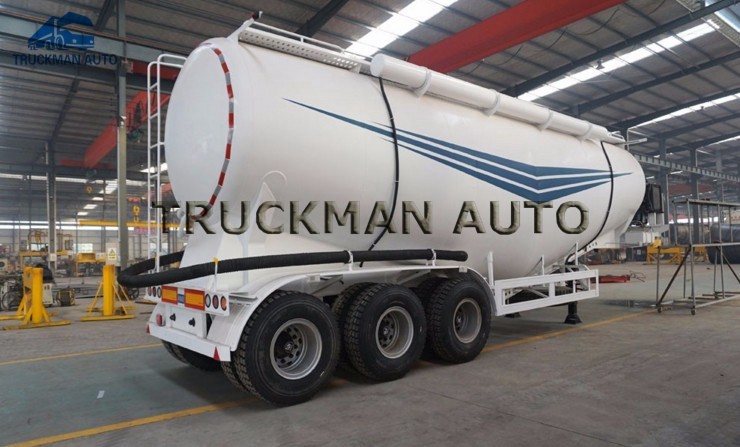

50m3 Cement Tanker Trailer Optional Shape With 50 Tons Loading Capacity
China Trailer 50m3 Bulk Cement Semi Trailer With 50 Tons Loading Capacity
50m3 Bulk Cement Semi Trailer Main Function.
-. It is suitable for the transportation of powdered dry materials such as fly ash, cement, lime powder,
ore powder, etc. with a particle diameter of not more than 0.1mm, and pneumatic discharge.
When the vertical height of the discharge reaches 15m, the horizontal transport distance can reach 5m.
-. The semi-hanging powder material transport vehicle uses its own engine power to drive the on-board
air compressor through a power take-off, and sends compressed air through the pipeline to the air
chamber at the bottom of the sealed tank, so that the cement on the fluidized bed is suspended in
a fluid state. When the pressure in the tank reaches the rated value, the discharge butterfly valve is opened,
and the fluidized cement is transported through the pipeline for transportation.
Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 7500KGS-15000KGS |
Total Volume(m3) | 50m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |
Diesel Engine | WEICHAI ,Tianhe 4100/4102 or other brand |
Compressor | BOHAI 10m³/12 m³or other brand |
Manhole Cover | Carbon steel or Aluminum 500mm |
Discharging Valve | Diameter is 3 or 4 inch (Material: Aluminum ) |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |
Axle | 3 axles,13T, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
-2. Our Advantage Of Cement Trailer.
-. Use good brand diesel engine, such as weichai.
-. V type design for loading more tons bulk cement.
-. With 1 year warranty and also supply the all kind of quality certificate.
-. Use high strength steel, make the chassis durable and stronger.
