Q235 Q355 40000L Fuel Tanker Trailer 3 Axle With 4 Compartment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM E |
| Model Number: | TKM340FLL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Tanker Body: | 40m3, 4 Compartment | Axle: | 3x16 Tons |
|---|---|---|---|
| Tire: | 315/80R22.5, Tubeless Tire | Landing Gear: | 28 Tons |
| Suspension: | Heavy Duty 8mm | Material: | Q235 & Q355 |
| High Light: | Q235 Fuel Tanker Trailer,28 Tons Oil Tank Trailer,Q355 Fuel Tanker Trailer |
||
Product Description
Q235 Q355 40000L Fuel Tanker Trailer 3 Axle With 4 Compartment
3 Axle 40000 Liter Fuel Tanker Trailer With 4 Compartment For Ghana
-1. 40000 Liter Fuel Tanker Trailer Detail.
The fuel tanker trailer material use the Q235 and Q355, the tanker body material is
Q235 carbon steel and chassis use the Q355 high strength steel. Two model material
confirm the fuel tanker trailer can using with long time.

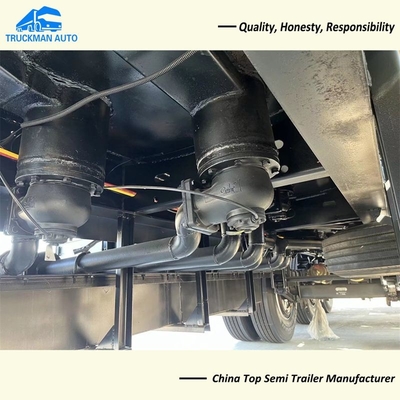

-. Subsea valve, discharge valve is standard specification, for dangerous goods
transportation is necessary.
-. The compartment have 1-9 pcs, according to your request.
-2. 40000 Liter Fuel Tanker Trailer Specification.
| Description | Parameter Value |
| Product Name | 40000 Liter Fuel Tanker Trailer |
| Application | For chemical liquid haulage |
| Axle | 3x16000kg |
| Tire | 315/80R22.5, 12 pcs |
| Suspension | Heavy duty mechanical |
| Support Leg | JOST 28 tons |
| Tractor Pin | 90#, JOST brand |
| Brake System | WABCO brand |
| Tanker Body | 40000 liter, 4 pcs compartment |
| Material | Tank body Q235, trailer chassis Q355 |
| Dimension | 11300x2500x3450mm |
The 40000 liter fuel tanker trailer specification only for your reference, we will recommend other
model fuel tanker trailer according to your request.
-3. TRUCKMAN AUTO 40000 Liter Fuel Tanker Trailer Advantage.
-. The tank body is welded by imported TIG welding machine, and the pass rate of radiographic inspection is 100%;
-. The head wave-proof board is an expanding structure with high strength, and the thickness of the
board is the national standard full-thickness board;
-. The loading and unloading system adopts European standard design, which is safe and environmentally friendly;
-. The tank section is a national standard small arc, and the tank is more uniform and stronger;
-. The tank body is a gooseneck structure with low center of gravity and good stability;
-. Tank top roll protection device to improve vehicle safety;
-. Ladders and tank top walkways are designed to be non-slip;
-. The rear protective material is high-strength steel, with large spacing, anti-drilling and anti-collision,
improving the driving safety of the vehicle.
