3 Axle 40000 Liter Fuel Tanker Trailer Carbon Steel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM E |
| Model Number: | TKM340LLT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Loading Capacity: | 40000 Liter | Axle: | 3x16000kg, 3 Alxe |
|---|---|---|---|
| Tire: | 12R22.5, 12 Pcs, Tubeless Tire | Suspension: | Heavy Duty 8mm Thickness |
| Compartment: | 4 Pcs | Material: | Carbon Steel |
| High Light: | 40000L Fuel Tanker Trailer,Carbon Steel Oil Tank Trailer,3 Axle Fuel Tanker Trailer |
||
Product Description

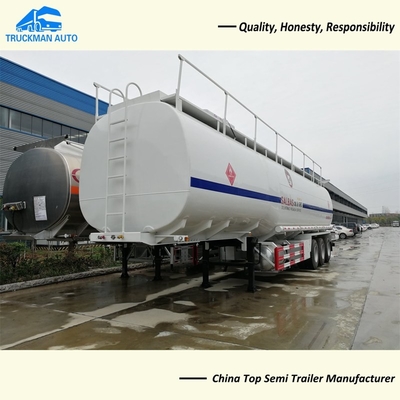

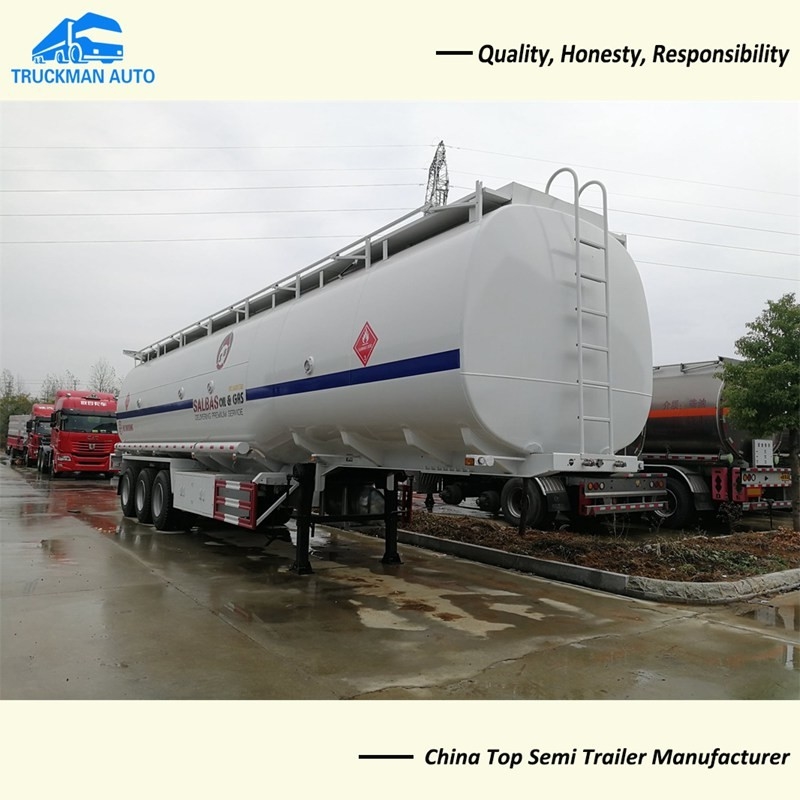

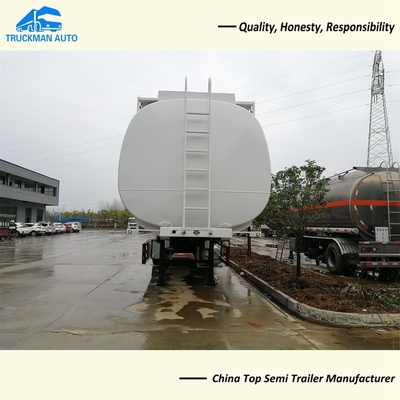

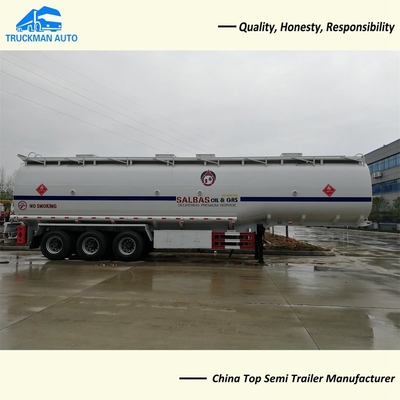

3 Axle 40000 Liter Fuel Tanker Trailer Carbon Steel
3 Axle 40000 Liter Fuel Tanker Trailer
-1. 40000 Liter Fuel Tanker Trailer Detail.
40000 liter fuel tank trailer with 4 pcs compartment, per 10000 liter one compartment.
The fuel tanker trailer use the automatic submerged arc welding technology.
-. The fuel tanker trailer each side with one pcs discharge pipe, length is 6mm,
can made according to your request.
-. Wave plate thickness 4mm, tank body 5mm also can acceptable customs made.
-2. 40000 Liter Fuel Tanker Trailer Specification.
| Description | Parameter Value |
| Product Name | 40000 Liter Fuel Tanker Trailer |
| Application | For chemical liquid transport |
| Axle | 3x16000, FUWA or BPW brand |
| Tire | 12R22.5 tubeless model tire |
| Suspension | Heavy duty 8mm thickness |
| Landing Gear | 28 tons, JOST brand |
| Tank Body | 4 pcs compartment |
| Material | Carbon steel |
| Dimension | 12400x2500x3650mm |
The 40000 liter fuel tanker trailer specification only for your reference, we will recommend other
model fuel tanker trailer according to your request.
-3. 40000 Liter Fuel Tanker Trailer Design Draft Detail.
Here attached the 40000 liter fuel tanker trailer design drawing for your reference, we can
manufacture the fuel tanker trailer according to your request and send the design drawing too.
