High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ, FORM M |
| Model Number: | TKM349051 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Leaf Spring: | 90x16mmx10pcsx6sets | Axle: | 3 Axle, 3x13 Tons, FUWA |
|---|---|---|---|
| Suspension: | 8mm Thickness | Tire: | 12.00R20 Or 315/80R22.5 |
| Brake System: | WABCO Brand, 6 Pcs Brake Chamber | Warranty: | 12 Months |
| High Light: | 50 Tons Lowboy Semi Trailer,3 Axle Lowboy Semi Trailer,CIQ Low Bed Semi Trailer |
||
Product Description

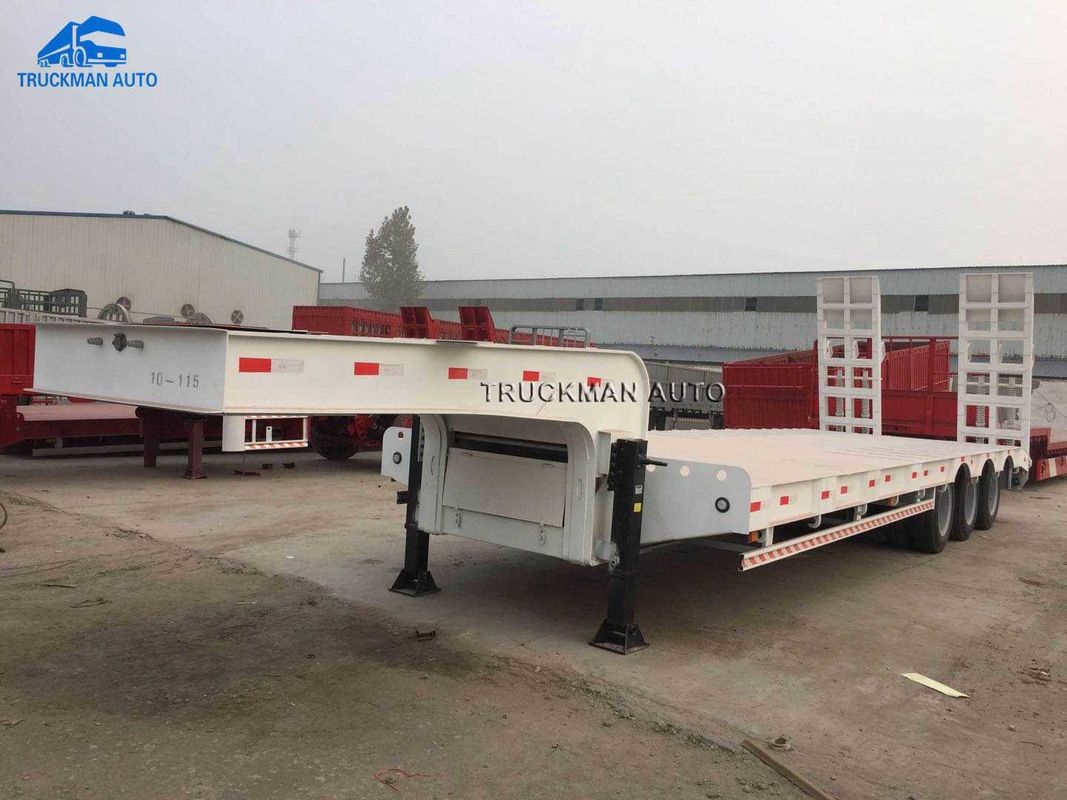

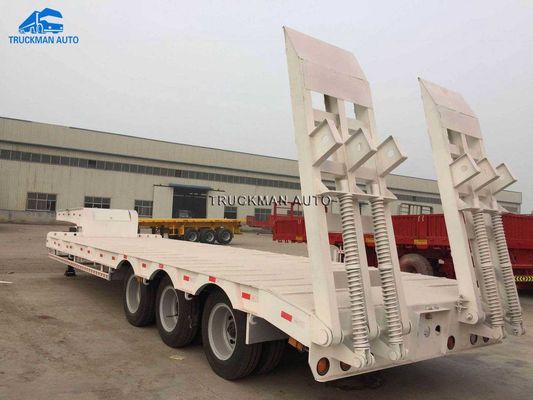

High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer
Brand New 50 Tons Lowboy Semi Trailer Available
-1. 50 Tons Lowboy Semi Trailer Main Detail.
When loading mechanical equipment on a lowboy semi trailer, the mechanical equipment is usually
loaded from the rear of the lowboy semi trailer, that is, the mechanical equipment is moved from the
rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the lowboy
semi trailer on. The lowboy semi trailer running structure uses high-strength international steel material,
which has a light weight and guarantees its anti-torsion, anti-vibration, and anti-bump capabilities, and
meets different road bearing capabilities. The width of the gooseneck part is: 1380mm, 1400mm, 1420mm, 1480mm.
-2. 50 Tons Lowboy Semi Trailer Main Specification.
| Description | Parameter value |
| Product Name | Lowboy semi trailer |
| Loading Weight | 70000kg |
| Tare Weight | 11000kg |
| Axle | 3 axle, 3x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Rim | 18mm thickness |
| Tire | 12.00R20 or 315/80R22.5, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
| Material | T700, high strength steel |
| Loading Area Size (LxWxH) | 9000x3000x1300mm |
| Dimension | 13000x3000x1300mm |
-3. 50 Tons Lowboy Semi Trailer Design Draft.
The size of lowboy semi trailer could change according to your request.
