100 Tons 2 Line 4 Axle Low Bed Trailer
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN AUTO |
Certification: | SGS, BV, CIQ, FORM E |
Model Number: | TKM24100LST |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiable |
Packaging Details: | Nude |
Delivery Time: | 20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Loading Tons: | 100 Tons | Axle: | 2 Line 4 Axle |
---|---|---|---|
Tire: | 8.25R20, 16 Pcs | Support Leg: | JOST 28 Tons |
Brake System: | WABCO Brand | Material: | T700 High Strength Steel |
Product Description

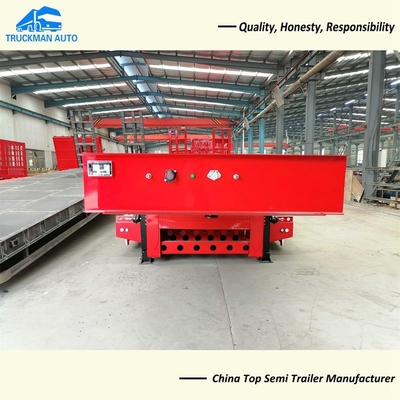

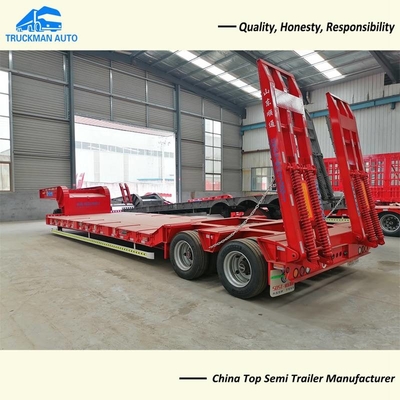

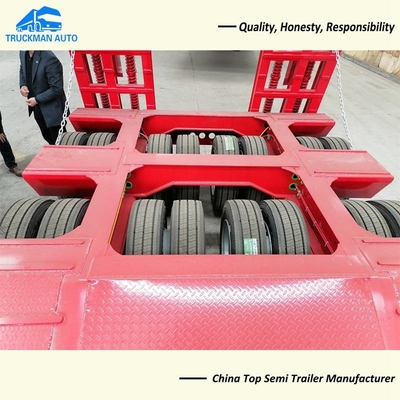

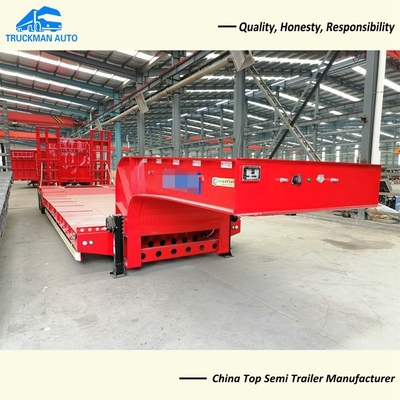

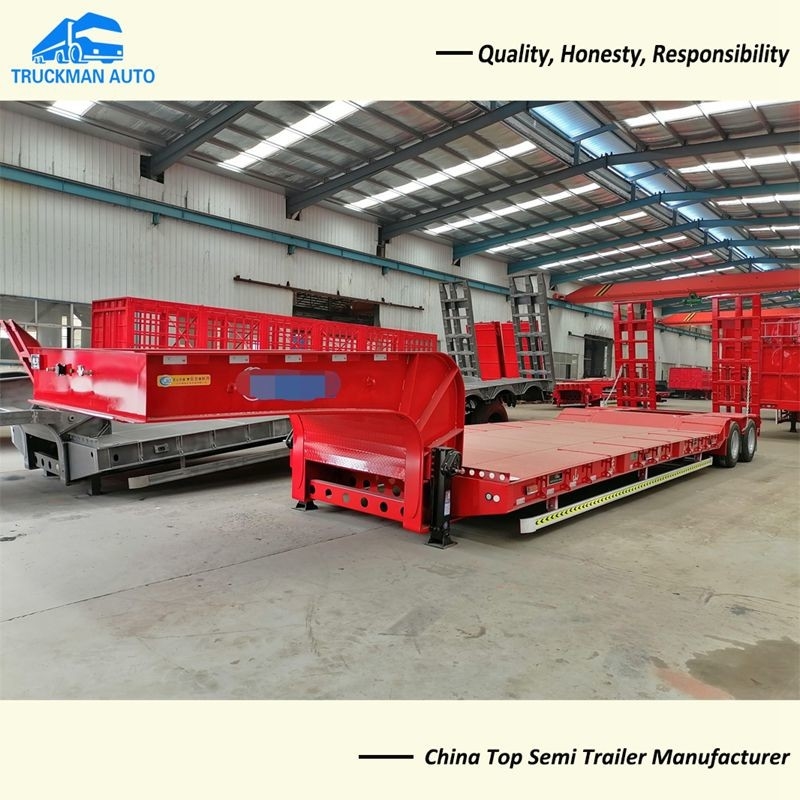

100 Tons 2 Line 4 Axle Low Bed Trailer
-1. 100 Tons 2 Line 4 Axle Low Bed Trailer Detail.
2 line 4 axle low bed trailer can loading 100 tons goods, such as construction machinery,
mining equipment and shield machine etc.
-. Axle brand have ZY, FUWA and BPW can optional.
-. Now all our low bed trailer use the high strength steel T700, load capacity is stronger than Q345.
-2. 100 Tons 2 Line 4 Axle Low Bed Trailer Specification.
Description | Parameter Value |
Product Name | 100 Tons 2 Line 4 Axle Low Bed Trailer |
Application | Transport heavy duty machinery |
Axle | 2 line 4 axle |
Tire | 8.25R20, 16 pcs |
Brake System | WABCO brand |
Loading Platform | 12000x3050mm |
Material | T700 high strength steel |
Ladder | 850mm width spring mechanical ladder |
Dimension | 15200x3050x3450mm |
The 100 tons 2 line 4 axle low bed trailer specification only for your reference,
we will recommend other model low bed trailer according to your request.
-3. 100 Tons 2 Line 4 Axle Low Bed Trailer Design Drawing.
This 2 line 4 axle low bed trailer design loading tons is 100 tons, material adopt the
high strength T700. and the side beam height is 280mm, upper, bottom and middle
plate thickness all is 8mm, improve the loading capacity. We also can design the
low bed trailer according to your request.
