Carbon Steel 5 Compartments 50000L Oil Tank Trailer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN |
| Certification: | SGS, BV, CTN |
| Model Number: | TMA360TWT50CBM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | US$17000 Per Unit |
| Packaging Details: | Nude |
| Delivery Time: | 20-25 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Loading Tons: | 50 Tons | Tank Body Size: | 50000 Liters |
|---|---|---|---|
| Comdepartment: | 6 Pcs | Material: | Carbon Steel Or Aluminum Alloy |
| Axles: | FUWA, 3x13 Tons | Tire: | 12R22.5 Etc |
| High Light: | 50000L Oil Tank Trailer,50T Oil Tank Trailer |
||
Product Description

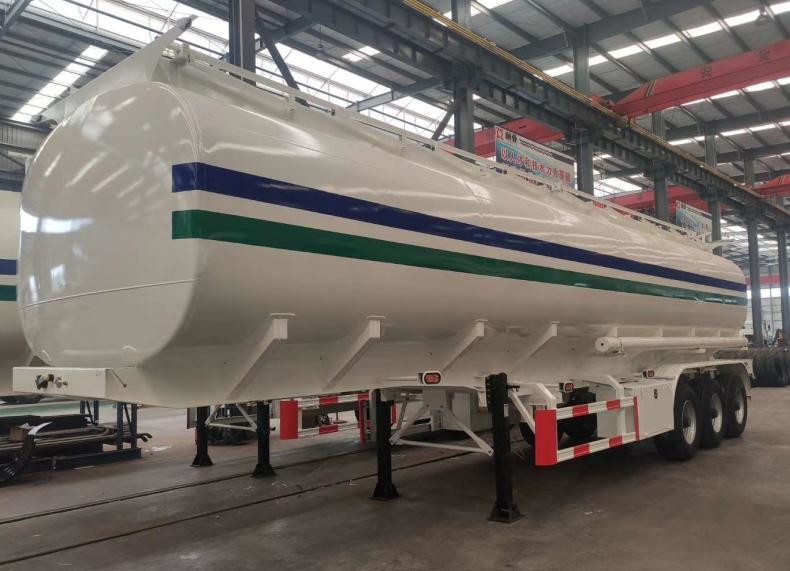

Carbon Steel 5 Compartments 50000L Oil Tank Trailer
What is Fuel Tank Semi Trailer?
Oil tank truck (oil tank truck): also known as mobile fuel truck, computer tax-controlled fuel truck, fuel tank truck, fuel truck, fuel truck, oil truck, oil truck, edible oil truck, mainly used for petroleum The transportation and storage of its derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar).
Fuel tank semi trailer could transport all kind liquid, such as the diesel, gasoline, fuel, oil etc. The tank body
size could design from 35000 liter to 55000 liter, with the 1-10 pcs comdepartments and separate seavalve.
Also the key parts like axles is adopt the FUWA or BPW brand. The axles loading tons have 13 tons,
16 tons or more. The spare parts maintenance cost is very low even could buy from local. We also supply
one year warranty for our fuel tank trailer.
The Specification For Fuel Tank Trailer.
| Model Name | 50000L fuel tanker trailer |
| Function | fuel tanker trailer |
| Overall Dimension | (L*W*H) 13000*2500*4000mm |
| Axle | 3 axle 13T Fuwa Brand |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| Tire | 12R22.5 12pcs LINGLONG brand |
| Rims | 9.0, 12 pieces |
| Discharge valve | 4''disc valve ,3pcs |
| Discharge pipe | 4''seamless steel tube ,3pcs |
| Spare Wheel Bracket | 2 |
| Landing gear | Fuwa brand two-speed,manual operating |
| Kingpin | 90mm or 50mm |
| Tool box | one piece |
| Compartment | 3, other number optional |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Electrical system | voltage:24V 2.Receptacle:7ways(7wire harness) |
| Tail lamp with turn signal, brake light&reflector,side lamp etc. | |
| One set 6-core standard Cable |
