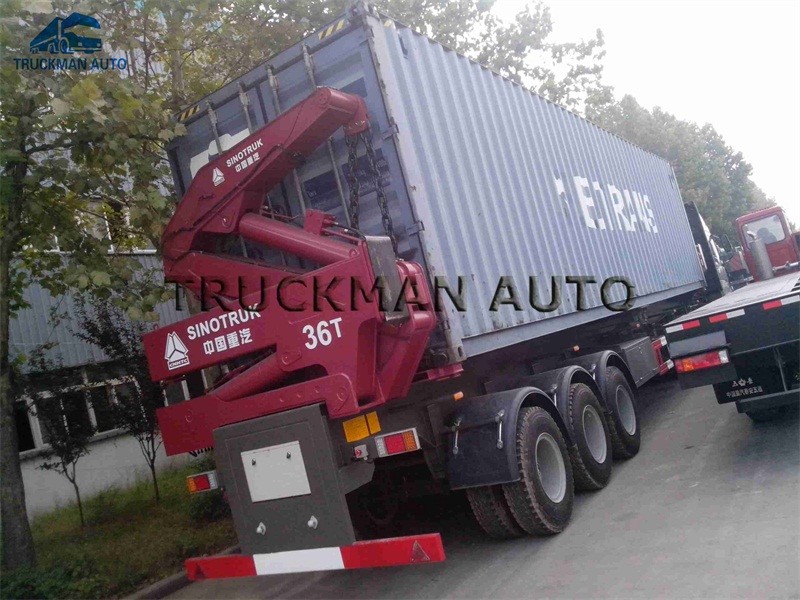

Customized Dimensions Container Side Loader Trailer With Self Loading 37 Tons
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CTN |
| Model Number: | TKM370S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | nude |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Type: | 20 Ft And 40 Ft Container Side Lift | Material: | Q345B Carbon Steel |
|---|---|---|---|
| Size: | 14100*2500*4000mm | Max Payload: | 40T |
| Suspension: | Steel Spring Suspension | Axle: | 13 Ton Fuwa Brand |
| Landing Gear: | JOST E100 Container Semi Trailer | King Pin: | 2"(50mm)or3.5"(90mm) JOST |
| Wheel Base: | 8000+1350+1350mm | Brake System: | WABCO Valve |
| Keywords: | 20 Ft 40 Ft Container Self Loading | ||
| High Light: | side lifting container trailer,sideloader trailer |
||
Product Description
Customized Dimensions Container Side Loader Trailer With Self Loading 37 Tons
China 40ft 20ft Container Side Loader Trailer With Self Loading 37 Tons
1. Main Specification For Container Side Self Loading Trailer.
-. A container side lifter is a type of specialized semi-trailer that is used to hosit and transport standard containers
over long distance. Also known as container side loader ,this trailer is basically used for container transfer.
It comprises of lift modules or cranes that are installed to the trailer chassis.
-. A container side lifter can easily silde smoothly inwards or outwards for 20ft,40ft, or 45ft positions in port,
station and freight yard etc. It include outstanding features like the wide rach stabilizer jibs and leg controlled
through a hydraulic unit that can either be powered from PTO (Power Take Off) system of the tractor or
from an APU(Auxiliary Power Unit).
| Dimensions (Lx W x H) | 12500x2500x1550mm (can be customized) |
| Pay Load | 50tons |
| Axle | 3*13ton FUWA brand |
| Suspension | Mechanical suspension with 10/10/10 |
| Main Beam | Height:500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. Material: Q345B Steel |
| Through beam and Side beam | 10# channel steel, 14 U shaped steel or channel steel |
| Platform thickness | without |
| Tire | Triangle brand, 12R22.5 (12pcs) |
| Traction Pin | 2"(50mm)or 3.5"(90mm)traction pin |
| Twist Lock | 12 sets of telescoping twist locks |
| Tool Box | 1 Unit |
| Landing Leg | 28T load landing leg |
| Brake system | Dual Line braking system/Optional ABS |
| Brake chamber | Six double chamber |
| Light | LED light |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
