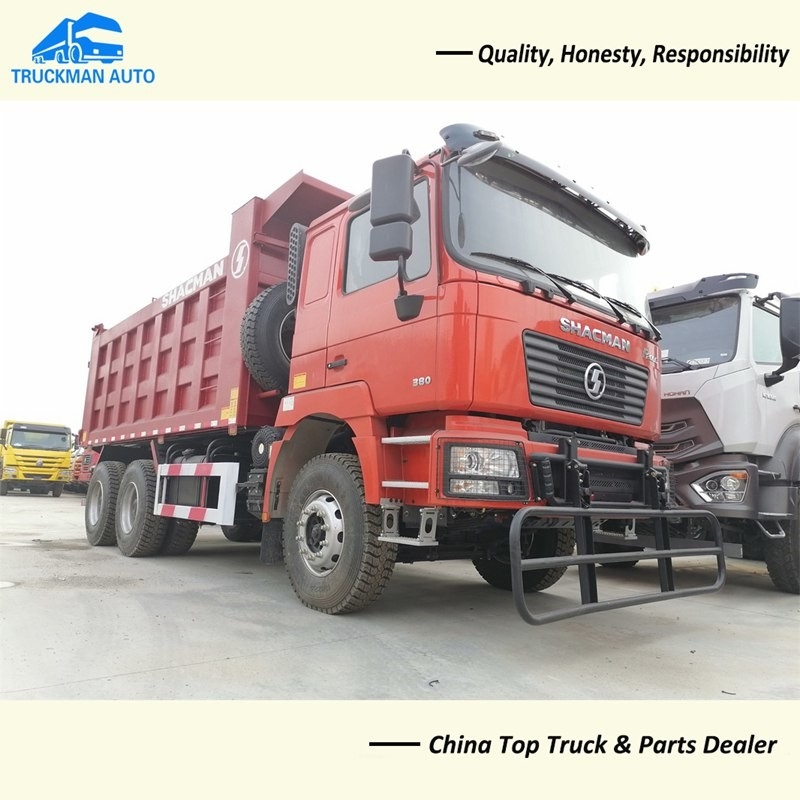

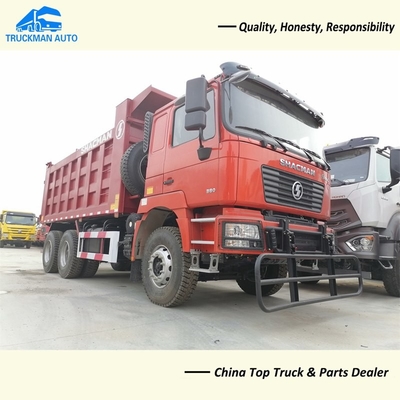

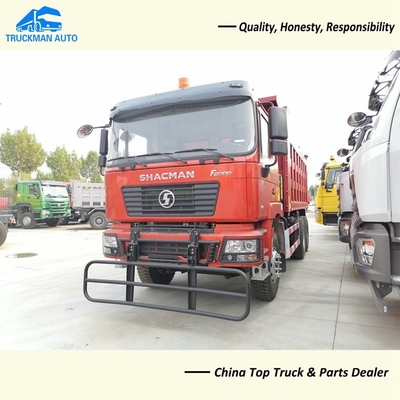

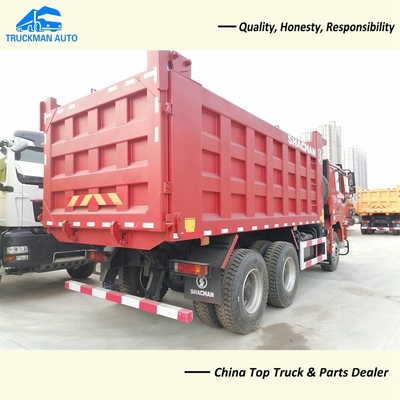

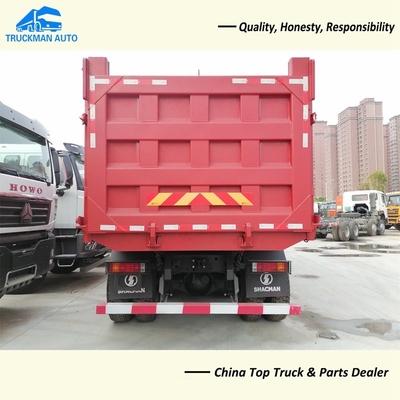

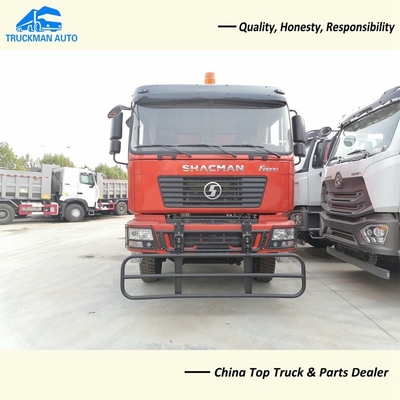

SHACMAN F3000 6x4 380HP 25 Tons 20m3 Heavy Duty Dump Truck For Ghana
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SHACMAN F3000 |
| Certification: | SGS, BV, CIQ, FORM E |
| Model Number: | SX3255DR384CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Engine: | WP10.380E22, 380HP | Gearbox: | 12 Forward And 2 Reverse Gear |
|---|---|---|---|
| Cabin: | F3000 Model, One Bed, A/C | Tire: | 13R22.5, 10+1 Pcs |
| Bucket: | 20m3 | Loading Tons: | 25-30 Tons |
| High Light: | F3000 20m3 Heavy Duty Dump Truck,25 Tons Heavy Duty Dump Truck,380HP 20m3 Heavy Duty Dump Truck |
||
Product Description
SHACMAN F3000 6x4 380HP 25 Tons 20m3 Heavy Duty Dump Truck For Ghana
-1. SHACMAN F3000 20m3 Dump Truck Detail.
SHACMAN F3000 20m3 dump truck design for Ghana construction, haulage, mining and rental
business. The dump truck engine is WEICHAI brand, 380HP EURO II emission standard, the local
diesel quality can meet the engine request. And cargo box size reach to 20m3, suitable for limestone,
bauxite, coal etc haulage.
-. SHACMAN F3000 20m3 dump truck cargo box adopt the manganese plate, with wear-resistant and
durable advantage.
-. FAST brand gear box, WEICHAI brand engine, HANDE brand axle. It’s one complete and mature tech
specification.
-2. SHACMAN F3000 20m3 Dump Truck Specification.
| Description | Parameter Value |
| Product Name | SHACMAN F3000 20m3 Dump Truck |
| Application | For transport sand, stone etc |
| Engine | WP10.380E22, 380HP. Euro 2 |
| Cabin | MAN cabin with one bed, A/C |
| Gearbox | 12 forward and 2 reverse gear |
| Driving Axle | 16 tons, 2x16000kg |
| Tire | 13R22.5, 10+1 pcs, DOUBLE COIN brand |
| Cargo Box | 5600x2300x1500mm, bottom 8mm, side 6mm |
| Fuel Tank | 400L |
| Loading Tons | 25-30 tons |
| Max Speed | 75km/h |
| Dimension | 8650x2580x3450mm |
The SHACMAN F3000 20m3 dump truck specification only for your reference, we will recommend other
model SHACMAN dump truck according to your request.
-3. SHACMAN F3000 20m3 Dump Truck Engine Picture.
SHACMAN F3000 20m3 dump truck engine is WEICHAI brand, model WP10.380E22, 380HP. This
engine max torque reach to 1460N.m, and displacement is 9.726L, the engine also can optional exhaust
brake valve (EVB), for safety brake.
