Product Details:

Place of Origin: China
Brand Name: HOWO
Certification: SGS,BV,CIQ,ECTN,CO,FORM F
Model Number: ZZ3257N3647A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Dollars 43500-44500 Unit
Packaging Details: Naked
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 500 Units Per Month
Get Best Price Contact Now

Detail Information

Color: Red Drive Wheel: 6x4
Dimensions (l X W X H) (mm): 8450*2500*3310 Fuel Type: Diesel
Condition: New Horsepower: 351 - 450hp
High Light:

Howo Tipper Truck 25 Tons

,

6x4 Howo Tipper Truck 25 Tons

,

25 Tons sinotruk howo 6x4 dump truck

Product Description

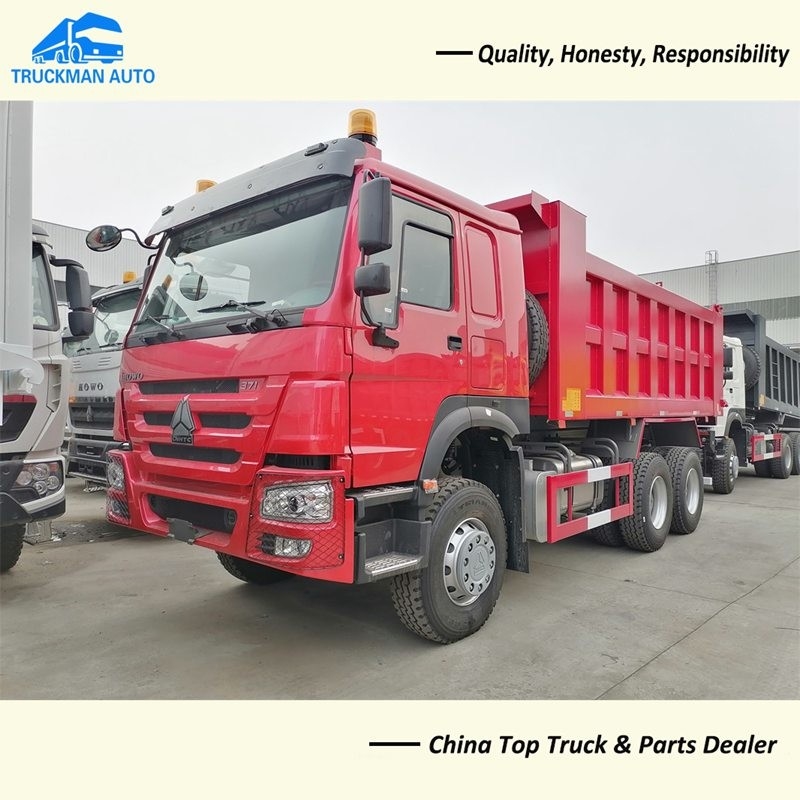

6x4 Sinotruck Howo Tipper Truck 25 Tons Loading

SINOTRUK HOWO Dump Truck

With its reliable and stable structure design, high bearing capacity, excellent engine force, highly stable performance, and its frame forged in construction and mining industries with adverse operating environments, it is widely used for the short-range earthwork transportation tasks for mines and construction projects. It is world widely accepted by users from South East Asia, Middle East, Africa, South America countries. Without any question, HOWO dump truck is NO. 1 option for your project.

Model GCW40000kgs Driving Type 6×4 RHD/LHD howo dump truck
Engine

Engine model: WD615.69/WD615.47, Euro II emission standard

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turo-charging & intercooling

Maximum output: 336hp(273Kw) at 2200 rpm according to DIN

Maximum torque: 1450Nm at 1300~1600 rpm

Bore: 126mm; Stroke: 130mm;

Displacement: 9.726L; Compression ratio: 17:1

Specific fuel consumption: 198g/kWh; Engine oil filling quantity: 20L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 71oC

Rigid fan Twin cylinder air compressor

Clutch SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission

Transmission, model HW19710, 10 forward and 2 reverse

Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)

Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle

New HF9 series, with drum brake system

Steering with double T-cross section beam

Rear Axle

HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

Ratio: 5.73

Chassis

Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe

Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: semi-elliptic leaf springs and bogie springs

Spare wheel carrier: with one spare wheel

Steering

ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2:1

Braking System

Front and rear drum brake, four-circuit protection valve

Service brake: dual circuit compressed air brake

Parking Brake: spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Wheel & Types

Rims: 8.5-20,10 hole-steel

Types: 12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20

Driver’s cab HW76 Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, one sleeper,sun visor, safety belt, air conditioner, adjustable steering wheel.
Electrical System

Operating voltage:24V, negative grounded

Starter: 24V, 7.5KW

Alternator: 3-phrase, 28V, 1540W

Batteries: 2×12V, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheel base (mm)

Front wheel track (mm)

Rear wheel track (mm)

Front overhang (mm)

Rear overhang (mm)

Approach angle(°)

Departure angle(°)

Carriage Dimension (mm)

3425+1350

2022/2041

1830

1500

1859

19

23

5200x2300x1500 mid lifting, floor 8mm side 6mm

Weight in kg

Permissible loading capacity (kg)

Dead weight (kg)

Gross vehicle weight (kg)

Gross combination weight (kg)

Front axle loading capacity (kg)

Rear axle loading capacity (kg)

30000

12090

25000

30000

9000

2×16000

Performance

Maximum driving speed(km/h)

Maximum gradeability (%)

Minimum ground clearance(mm)

Minimum turning radius (m)

Fuel consumption(L/100km)

75(reference data)

36

314

15

40(reference data)



6x4 Sinotruck Howo Tipper Truck 25 Tons Loading 0

Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.



TRUCKMAN AUTO Another mainly business is for China Truck spare parts,which the quality is reliable but with very competitive price.,welcome inquiry.
