800mm 60T Side Wall Cargo Trailer For Grain Transport
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN AUTO |
Certification: | SGS, BV, CIQ |
Model Number: | TKM350SDW |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiable |
Packaging Details: | Nude |
Delivery Time: | 20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Side Wall Height: | 600mm Or 800mm | Loading Tons: | 60000kg |
---|---|---|---|
Application: | Transport Container Or Bulk Cargo | Axle: | 3x13000kg, FUWA Brand |
Suspension: | Mechanical Type, 8mm Thickness | Warranty: | 50000km Or 1 Year |
High Light: | 60T Side Wall Cargo Trailer,800mm Side Wall Cargo Trailer,60000kg Cargo Semi Trailer |
Product Description
800mm 60T Side Wall Cargo Trailer For Grain Transport
60 Tons Side Wall Cargo Trailer For Grain Transport
-1. Side Wall Cargo Trailer Main Detail.
Flatbed trailer could add 600mm or 800mm height side wall for the bulk cargo transport, and the thickness of side wall 1.5mm or more thicker. Total 24 pcs rope tightener and stronger hooks.
-2. Side Wall Cargo Trailer Main Specification.
Description | Parameter value |
Product Name | Side Wall Cargo Trailer |
Loading Weight | 60,000kg |
Tare Weight | 8,500kg |
Side Wall | 600mm or 800mm height |
Axle | 3 axle, 3x13 tons |
Suspension | America type, 8mm thickness |
Leaf Spring | 90x16mmx10pcsx6sets |
Rim | 16mm thickness |
Tire | 12.00R20 or 315/80R22.5, 12 pcs |
Brake System | WABCO brand, ABS and 6 pcs brake chamber |
Thickness Of Frame |
Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam |
Material | Q345, high strength steel |
Dimension | 12500x2500x1550mm |
The Side Wall Cargo Trailer could design according to your request.

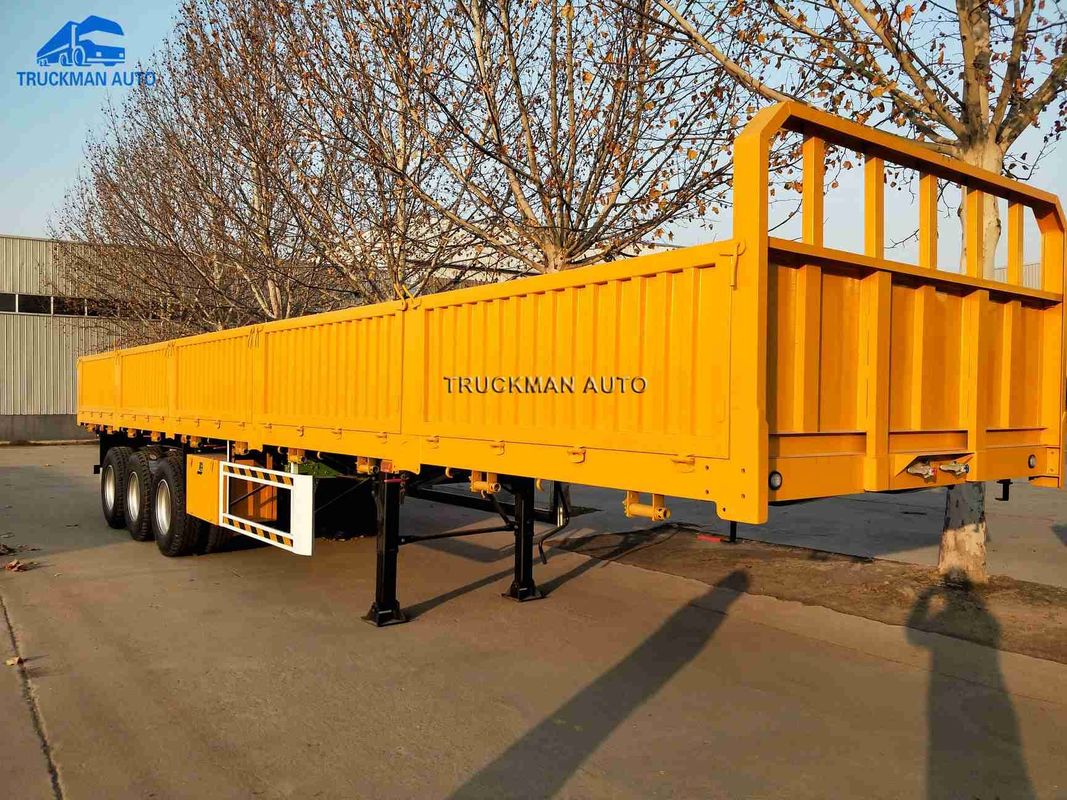

-3. Side Wall Cargo Trailer Details Picture.
Our TRUCKMAN AUTO Side Wall Cargo Trailer is very popular in Ghana, Tanzania, Ethiopia, Senegal, Mali etc countries, welcome be our agent.
