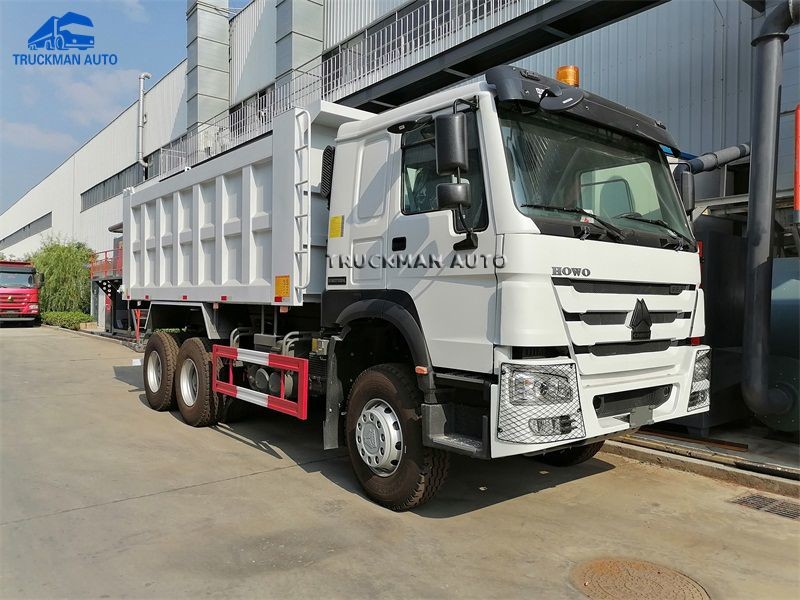

WD615.69 10 Wheel 371HP Heavy Duty Dump Truck
Product Details:
Place of Origin: | CHINA |
Brand Name: | SINOTRUCK HOWO |
Certification: | SGS, CTN, BV |
Model Number: | ZZ3257N3647A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiable |
Packaging Details: | Nude |
Delivery Time: | 35 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Unit / Per Month |
Detail Information |
|||
Engine: | WD615.69, 336HP | Gearbox: | HW19710, 10F & 2R |
---|---|---|---|
Cabin: | HW76, One Bed, A/C | Cargo Box: | 5600x2300x1500mm |
Loading Tons: | 25-30 Tons | Max Speed: | 75km/h |
Warranty: | 1 Year | Fuel Tank: | 300L |
High Light: | 371HP Heavy Duty Dump Truck,WD615.69 Heavy Duty Dump Truck |
Product Description
WD615.69 10 Wheel 371HP Heavy Duty Dump Truck
10 Wheel 371HP SINOTRUCK HOWO Heavy Duty Dump Truck
-1. Main Information For HOWO Heavy Duty Dump Truck.
HOWO heavy duty dump truck is more suitable for Africa work, good brand tire and pattern, very stronger cargo box, and easy shift gearbox, very comfortable driving cabin, the quality with warranty.
-2. Main Specification For HOWO Heavy Duty Dump Truck.
Model | HOWO Heavy Duty Dump Truck |
Engine | WD615.69, 336HP |
Cabin | HW76 cabin, one bed, A/C. |
Gearbox | HW19710, 10 forward and 2 reverse gear |
Tire | 12.00R20, 10+1 spare tire, TRIANGLE brand |
Cargo Box | 5400x2300x1450mm, 18m3 |
Loading Tons | 25-30 Tons |
Fuel Tank Capacity | 300L |
Max Speed | 75km/h |
Warranty | 1 year |
-3. SINOTRUK HOWO Tipper Truck Axle Information.
HC16 Axles Detail.
Model | HC16 |
Brake Drum | Ф420x185 |
Input Flange | Ф180 |
Lubricants (L) | GL5 85W-90 |
Rated Load | 2x16000 |
HC16 Axles Main Advantage
-. The structure of the final reducer is optimized, and advanced structures such as bai gear large modulus design, reinforced input shaft, and integrated through shaft are realized.
-. The three-section cast axle housing has an enlarged square section and good supporting rigidity, which improves the service life of the main reducer assembly.
-. It is matched with wide-body brake, with good braking stability and long life of friction plate.
-. The whole bridge has higher rigidity and strength, strong bearing capacity, large transmission torque, high reliability and low noise.
-. It is suitable for harsh environment such as bad road conditions and high impact. It is the best choice for heavy engineering vehicle users.
