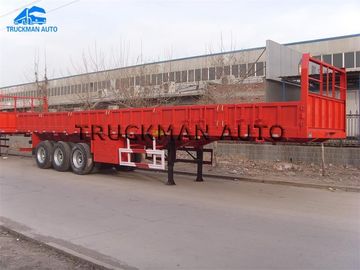

50 Tons Loading 3 Axle Semi Trailer , Cargo Semi Trailer For Logistics Business

50 Tons Loading 3 Axle Semi Trailer , Cargo Semi Trailer For Logistics Business

Product Details:

Place of Origin: China
Brand Name: TRUCKMAN
Certification: CIQ,FORM M,CO,SGS,SONCAP,BV
Model Number: ZZ350TWT120FT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Price is negotiable
Packaging Details: Naked
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 500 Units Per Month
Get Best Price Contact Now

Detail Information

Material: Q345 Application: Logistics
Supension: Spring Steel Mechanical Painting: Electric Spraying
Color: Red Brake: KTL
High Light:

side wall trailer

,

flatbed semi trailer

Product Description

50 Tons Loading 3 Axle Semi Trailer , Cargo Semi Trailer For Logistics Business

What is Cargo Semi Trailer Painting?

Spray paint: A kind of artificial paint, made of lead nitrate, resin, pigment, solvent, etc. Usually spray with a spray gun on the surface of the object, water and oil resistance, fast drying, used to paint cars, aircrafts, wood, leather, etc. This substance is toxic and has certain effects on the body. Different brands of spray paint have different toxicities due to different ingredients. Special care should be taken when using it to avoid inhalation and skin contact.



50 Tons Loading 3 Axles Cargo Semi Trailer For Logistics Business

Model No. ZZ350TWT120FT
Brake System Air brake with WABCO relay valve
Tubeless Tires 13R22.5,Linglong brand
Landing Gear JOST brand A400
Traction pin 3.5"
Side wall + Fence 600+600mm
Painting Red,3 coats
Main Beam Upper 10mm middle 8mm lower 12mm
Suspension Mechanical Amercia Type
Spring Steel 6sets 10/10/10
Lights 24 LED
Others Factory standard

How is the Fence Semi Trailer brake system working?

When the engine is running, the air pump generates air pressure. The air pressure of the air pump is sent to the air tank and pressurized. The air tank is connected to the brake master cylinder to supply air pressure to the brake master cylinder at any time. The air pressure is sent to the brake cylinder through the brake master cylinder. After the air pressure in the brake cylinder is in a sealed state, the air pressure exerts a physical action to push the brake lever to achieve braking.
There are also hand brakes. Commonly known as air brakes, semi-trailers and large trucks are used, as the name implies.


The principle is as follows.

First, the sub-pumps with air-brake or truck brake sub-cylinders and non-air-brake sub-cylinders have different structures. The air-brake sub-cylinder has a large spring with a large pressure. When you release the air-brake, there is now The air pressure enters the sub-pump. The big spring is forced to compress. The car must stop. The handbrake is pulled up. At this time, the air pressure is not sent to the sub-pump. Without the gas spring, it will spring up. effect

50 Tons Loading 3 Axle Semi Trailer , Cargo Semi Trailer For Logistics Business 0

Whats is Cargo Semi Trailer Tubeless Tires?

Tubeless tires, as the name suggests, are tubeless tires. Tubeless tires are commonly known as atomic tires or vacuum tires. This tire uses the inner wall of the tire and the inner layer of the bead to ensure good air tightness between the tire and the rim. There is no inner tube in the tire, and the tire itself has the inner tube structure, and air is filled in the tire, which has been generally used to replace the wheel with the inner tube.



FAQ:

Where is your company location?

Jinan Truckman Automobile Co.,Ltd located in Jinan City Shandong Provoince China,which is called spring city cause of its famous spring Water. Jinan City is a city of Heavy duty truck where the Sinotruck is.So Jinan has a advantage of Sinotruk and Semi Trailers exporting.



1.What is your Terms of Payment?

We accept TT Terms of payment, 30% in advance as deposit,balance before shipment.



2.What is the Terms of Shipment?

RORO/BULK/FLAT ROCK/Container for your option



3.How can I visit your Company?

you can fly to Guangzhou city then transit to Jinan City by air that need a 2 and half hours

you can fly to Beijing city then transit to Jinan City by air needed 1 hour or Bullet Train that need 2 Hours

you can fly to Shanghai city then transit to Jinan City by air needed 1 and half hours or Bullet Train needed 4 Hours



4.Which China Seaport you will load?

Tianjin,Qingdao,Shanghai,Lianyungang port and All China Border Cities.



5.What is the warranty?

1 year or 100000 kms warranty once engine assy,gearbox assy,chassis assy and cabin assy come to quality problem after our tech center confirm we will take charge of it exception human beings operation.
