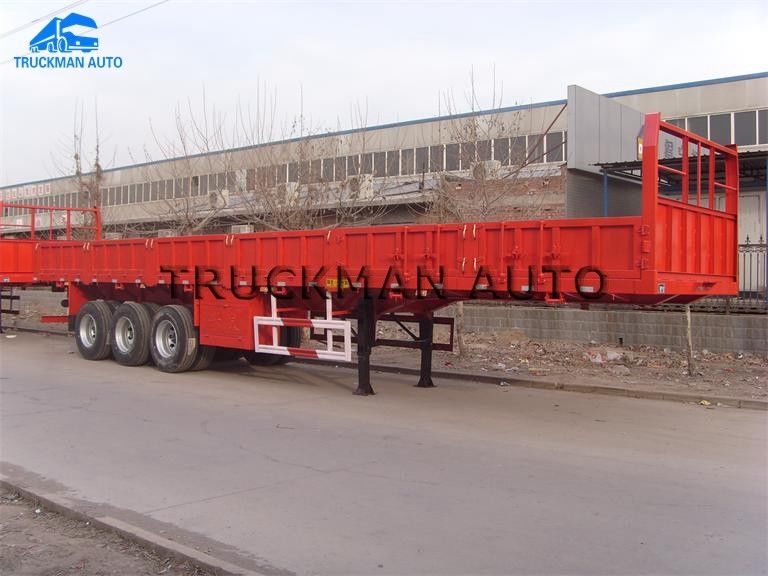

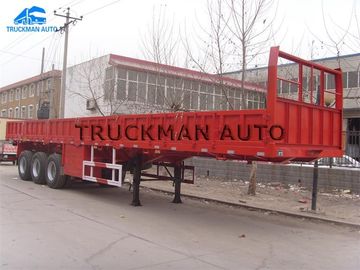

3 Axles Flatbed Cargo Side Wall Semi Trailer With 50-70 Loading Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | TRUCKMAN |
| Certification: | CIQ,BV,SGS,ECTN,CO,FORM M |
| Model Number: | TMA350TWT122CT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Pack Naked |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Units Per Month |
|
Detail Information |
|||
| Material: | T700 | Capacity: | 50 Tons |
|---|---|---|---|
| Side Wall: | 800mm | Color: | Red |
| Condition: | New | Application: | Bulk Goods Transport |
| High Light: | side wall trailer,cargo semi trailer |
||
Product Description
3 Axles Flatbed Cargo Side Wall Semi Trailer With 50-70 Loading Capacity
What is Cargo Side Wall Semi Trailer?
The cargo sid wall semi-trailer is a semi-trailer with a railing structure. It has a wide range of uses, and is mainly suitable for medium and long-distance transportation of medium-heavy and bulk cargoes. It has strong applicability and has become the first choice for medium- and long-distance freight vehicles.
The Basic Cargo Semi Trailer info:
1. The vehicle body is made of high-quality steel, advanced technology and strict production. The vehicle structure is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful.
2. The series of semi-trailer frames are through-beam structure, and the longitudinal beam is straight or gooseneck. The web height is welded from 400mm to 550mm manganese plate. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
3. The suspension adopts a non-independent steel plate stamped rigid suspension, which is made of tandem leaf springs and suspension bearings; the structure is reasonable, and it has strong rigidity and strength, which is used to support the load to reduce shock.
3 Axles Flatbed Cargo Side wall Semi Trailer With Side Wall 50-70 Loading Capacity
| Model No. | TMA350TWT122CT |
| Main Beam | upper 12mm Middle 10 Lower 14mm,High Tensile Steel T700 |
| Cargobox | side wall 800mm,Bottom 3mm side 1.5mm, Corrugated |
| Traction Pin | #50 |
| Landing Gear | A400 JOST |
| Tool box | 1 set |
| Paingting | 3 coats |
| Axles | ZY13T*3 |
| Brakes | Air brake,6 charmbers,KTL relaly valve |
| Lights | LED,with cover 24V |
| Color | Red |
| ABS | Option |
What is T700 Steel?
T700 is a high-strength, low-carbon, easy-to-weld steel, which is widely used in bank ATM cases, engineering machinery, coal machines, blowers, dump trucks and other mechanical equipment. This product has good welding performance and high toughness.
What is our Advantages:
1. Production capacity over 500 Units Per Month
2. Tech support available
3. Dealership will be wanted
4. Professional spare parts service
5. Matured euro technology
6. Low consumption
7. Easily and cheap maintenance
8. Customized available
9. Short delivery time
10. Resonable and professional advices on truck specs
