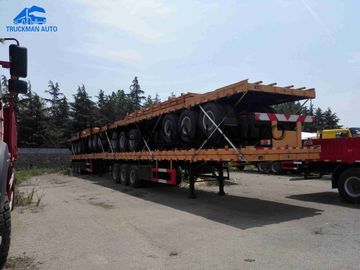

Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire
Product Details:
Place of Origin: | CHINA |
Brand Name: | TRUCKMAN AUTO |
Certification: | CTN, SGS, BV |
Model Number: | TKM370177 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Price is negotiable |
Packaging Details: | Nude |
Delivery Time: | 20-25 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1500 Pcs / One Month |
Detail Information |
|||
Material: | Steel | Size: | 12500*2500*1550mm |
---|---|---|---|
Type: | Flatbed Container Semi Trailer | Axle: | BPW Or FUWA |
Suspension: | Mechanical Suspension | Landing Gear: | JOST E100 Flatbed Semi Trailer |
Product Name: | 3 Axle Flatbed Semi Trailer | King Pin: | 3.5" JOST Brand |
High Light: | skeletal container trailer,flatbed container trailer |
Product Description
Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire
-1. 40FT Container Flatbed Semi Trailer.
-. With double container lock, guarantee the safety transport.
-. WABCO brand brake system and 6 pcs brake chamber.
-. The axles have FUWA, HJ, BPW brand could optional.
-. Thickness: bottom 14mm, upper plate is 12mm, middle 8mm.
Overall dimension | 12500 *2500 * 1550mm | |
Loading capacity | 40T | |
Axle brand and number | 13T Fuwa Brand, 3 axles | |
Wheel base(mm) | 6880+1310+1310 | |
Kingpin | 50# or 90# | |
Steel Spring | 10/10/10 leaf spring suspension | |
The material of Main beam | The height of the beam is 500 mm, upper plate is12mm, down plate is 14mm, | |
middle plate is 8mm. | ||
Tyre and quantity | 12R22.5 12pieces | |
Landing gear | 28T, double speed operation | |
Platform plate | 3mm Checkered steel plate | |
Brake system | Dual Line braking system ,none ABS. | |
Brake air chamber | Four double and two single chamber | |
24V,7 pin socket,One set 6-core standard Cable | ||
Electrical system | ||
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc | |
Tool box | 1 set | |
Spare tire carrier | 2 sets |
-2. Shipment Detail.
We put 3 pcs or 2 pcs container flatbed trailer together, and try to reduce the shipment height avoid the high
freight cost, and also could put 2 pcs container semi trailer in one 40FT container also.
