Product Details:

Place of Origin: China
Brand Name: TRUCKMAN
Certification: SASO,CIQ,BV,SGS,CTN,ECTN,
Model Number: TMA460TWT125OT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Price is negotiable
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 300 Units Per Month
Get Best Price Contact Now

Detail Information

Material: Carbon Steel,Option Aluminum Tank Volume: 50cbm
Compartments: 3-7 Oil Pump: Option
Color: Any Colors Usages: Petrol Or Oil
High Light:

fuel tanker semi trailer

,

oil truck tanker

Product Description

50m³ 4 Axles Oil Tank Trailer China Best Brand Manufacturer 3-7 Compartments

What is TRUCKMAN China Oil Tank Trailer?

Oil transport semi-trailers are mainly used for large-scale oil transportation, and the tonnage is generally about 40 ~ 60 cubic meters. Oil transport semi-trailers usually include: two-axle semi-trailers and three-axle semi-trailers. The oil tanker semi-trailer square tank body is made of Q235A steel plate. The tank body has built-in multiple reinforced wave-proof bulkhead plates. The bottom end of the bulkhead has through holes to reduce the impact of the oil in the tank body and increase the tank strength . The combined tank mouth is located on the top of the tank body, and there is a self-locking small cover on the large cover. A breathing valve is installed on the upper side of the large cover to ensure that the atmospheric pressure inside and outside the tank is consistent; it has an electrostatic ground wire. Install pump oil system, take power from transmission side through power take-off, self-priming and self-discharging; with two pumping oil pipes, equipped with quick-fit joint, suction distance 6 meters. Two fire extinguishers and special tools. The oil transport semi-trailer is divided into two parts, the oil tank body and the skeleton or bracket that supports the tank body. Faults and maintenance methods: 1. Inadequate braking and slow braking. Reasons: The gap between the brake shoe friction pads and the brake drum is too large. Adjust the clearance. The brake shoe friction pads are excessively worn. Replace the brake shoe wiper air chamber. Replace the air leak of the air brake system of the air chamber to reduce the pressure. Check the leaking part. Repair or replace the parts. The emergency relay valve is not working well. Replace 2. The brake cannot be released. The brake is slow to release the brake. The air brake system pressure is increased to the specified value. The brake return spring is damaged, the spring pipe is blocked, the emergency relay valve or quick release valve is not working properly. Check and replace the brake cylinder push rod stroke. Reasons for tire swing: loose wheel nut, tightening axle bearing sintering, damage, replacement bearing axle bending, correction, replacement axle bearing gap is too large, properly tighten bearing lock nut, replace bearing grease on time, replace axle bearing; tire is too uneven The verticality of the axis of the axle and the centerline of the frame is too serious. Adjust the distance between the two ends of the axle and the traction pin as much as possible. Moving too much resistance reasons: poor lubrication, grease supplemental bearing damage, replacement of bearings or eccentric gears badly worn, replacement parts exploded check screw thread damage, replacement of the screw.



50m³ 4 Axles Oil Tank Trailer China Best Brand Manufacturer 3-7 Compartments

Model No. TMA460TWT125OT
Material Q345 Mn Steel for Runnin Gear and Carbon Steel for Tank,option Aluminum
Compartments 3-7,wave plate 3mm
Landing Gears JOST Brand
Traction Pin JOST 50# or 90# based on Tractor head saddle
Axles BPW13T*4,70000 Kgs Loading
Brakes WABCO With ABS
Suspension Mechanical,option for Air bag suspension
Electrics 24V,LED lights
Bottom valve 3-7
Manholes 3-7

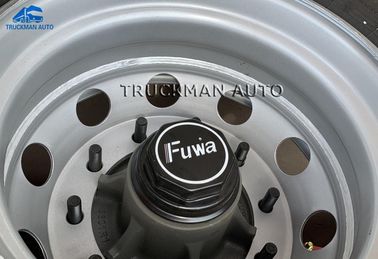

Tires 12R22.5,16+1 pcs,China Brand

50m³ 4 Axles Oil Tank Trailer China Best Brand Manufacturer 3-7 Compartments 0



Driving tips

When turning, pay attention to whether there are any pedestrians in the blind spot of the viewing angle, especially those who ride on a battery car. Always check your tires before travelling.

When reversing, the direction is reversed. You must hit slowly and return slowly, and the range should not be too big.

It is necessary to check the vehicle if you are going far away. The items that must be checked include: the vehicle ’s axle screws, the driving screws, the horn, the lights, and the tire pressure. These are necessary.

Be careful not to move the steering wheel during driving, because the vehicle body is relatively long and it may roll over. You must pay more attention to the corners to try to make room for the extra space.

Do not use the "brake first and then brake" approach to brake break-in. Although this can relatively reduce the impact on the engine when braking, it can be dangerous, and it is even worse once you get into the habit. Finally, the company reminds everyone that during the running-in period of the new car, it is necessary to regularly check whether the engine oil, coolant, and battery electrolyte are sufficient, and if there is a shortage, it must be replenished in time. After reaching the mileage specified by the manufacturer, it is necessary to timely go to the service station for the first inspection and maintenance of the vehicle, change the oil, filter, etc., and comprehensively check the chassis system. Completion of the first guarantee means that the trailer has successfully passed through the break-in period, and can serve you better from then on.
