High Strength Oil Tank Trailer Overall 12,500x2,500x3,800mm Anti Corrosive Painting
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CTN |
| Model Number: | TKMOFL370 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Pcs / One Month |
|
Detail Information |
|||
| Material: | Aluminum / Alloy,carbon Steel Q345B | Size: | Buyer's Request |
|---|---|---|---|
| Type: | Oil Tank Truck Trailer | Max Payload: | 50T |
| Suspension: | Leaf Spring Or Air | Axle: | 13 Ton Fuwa Brand |
| King Pin: | 90#/50# | ||
| High Light: | gasoline tank trailer,oil truck tanker |
||
Product Description

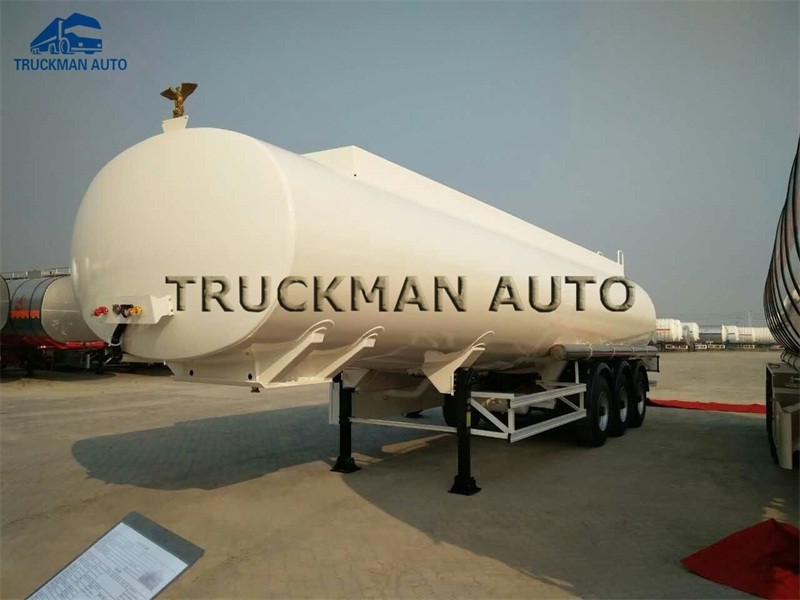

High Strength Oil Tank Trailer Overall 12,500x2,500x3,800mm Anti Corrosive Painting
3 Axles 50000 Liter 50m3 Oil Fuel Tank Trailer With 6 Comdepartment
1. Oil Tank Trailer Main Specification.
-. direction indicators (orange) /brakes (red)/rear warning (white).
-. Stevedoring and transporting of chemical fuel
-. Type 30/30 spring brake system on two axles.
| Type | 50000 liters fuel tank semi trailer for sale |
| Function | Stevedoring and transporting of chemical fuel, |
| such as oil and diesel oil, etc. | |
| Overall Dimension | 12,500x2,500x3,800mm |
| Frame Thickness | Tank body: 5mm |
| End plate: 6mm | |
| Wave-proof plate: 3mm | |
| Discharge Value | 2 Sets, 3 inch. |
| Tare weight | 9,000kg |
| Volume | Approx. 55m³ |
| Axle | Fuwa brand, 3*13ton |
| Compartments | 5 compartment |
| Manhole cover | Manhole cover: 500mm |
| 2 sets with 2 breath valves | |
| Discharge valve | 3 inch disc valve, 2 sets |
| Discharge pipe | 4 inch seamless steel tube |
| Suspension | Standard Suspension |
| Emergency valve | Bottom valve, 1 set |
| Leaf Spring | 2010/10/10 |
| Tire | 1100R20, 12 pcs |
| Rim | 9.0*22.5, 12 pcs |
| Kingpin | 2' or 3.5' |
| Landing Gear | JOST |
| Brake system | 2 line pneumatic brake system. |
| Type 30/30 spring brake system on two axles. | |
| ISO type air coupling at front of the semi-trailer. | |
| Without ABS. | |
| Brake chamber | 6- Double |
| Electrical system | Voltage: Chinese standard 24V |
| Receptacle: 7 ways (7 wire harness) | |
| LED lamps. | |
| Side: reflectors (orange). | |
| Rear: direction indicators (orange) /brakes (red)/rear warning (white). | |
| Side Guard | Side protection guards on both sides. |
| Tool Box | 1 psc |
| Spare Tire Carrier | 2 psc |
| Painting | Anti-corrosive prime: 1 coat |
| Final paint: 2 coats | |
| Colour and Marking | By customers’ requirement |
-2. Shipment Detail For Oil Tank Trailer.
Oil tank trailer shipment by RO-RO vessel.
Oil tank trailer shipment by the container flat rack vessel
Oil tank trailer shipment by container vessel.
