XCMG GR215 Heavy Construction Machinery Motor Grader
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XCMG |
| Certification: | SGS, BV, FORM E, ADR |
| Model Number: | GR215 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Tractive Force(f=0.75): | 82KN | Max. Gradeability: | 20% |
|---|---|---|---|
| Operating Weight: | 16500kg | Transmission Pressure: | 1.3~1.8MPa |
| Frame Articulation Angle: | ±27° | Min. Turning Radius Using Articulation: | 7.3m |
| High Light: | GR215 Heavy Construction Machinery,16500kg Heavy Construction Machinery,7.3m Turning Motor Grader |
||
Product Description
XCMG GR215 Heavy Construction Machinery Motor Grader
-1. XCMG GR215 Heavy Construction Machinery Motor Grader Detail.
XCMG GR215 heavy construction machinery motor grader main used for shoveling the road surface, can also be used for snow removal, bulldozing, etc. Generally, it is used to level the uneven fill of the road during road construction, which is convenient for the operation of road rollers and can also be used for roadbed repair.
-2. XCMG GR215 Heavy Construction Machinery Motor Grader Main Specification
| Basic Specification | |
| Engine model | 6CTAA8.3 |
| Rated power/speed | 153kW/2200rpm |
| Dimension(LxWxH) | 8970×2625×3470mm |
| Operating weight(Standard) | 16500kg |
| Performance Specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating Specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Blade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°-70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |

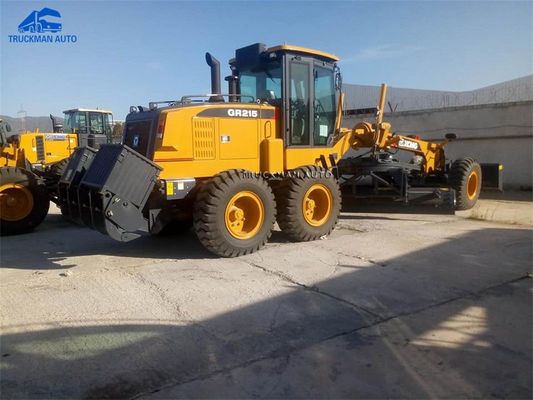

-3. XCMG GR215 Heavy Construction Machinery Motor Grader Detail Picture.
XCMG GR215 heavy construction machinery motor grader using Cummins 6CTA8.3-C215 turbocharged diesel engine, the output torque and power reserve factor is large, and the fuel consumption is low.
XCMG GR215 heavy construction machinery motor grader gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
