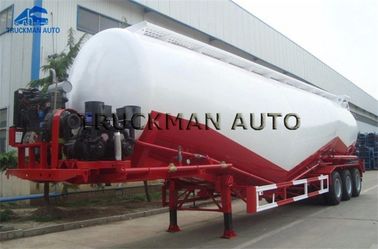

45m3 Cement Powder Tankers , Bulk Cement Trailer With 315/80r22.5 Tire
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, CTN, BV |
| Model Number: | TKMCTT350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20-25 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Axles: | 3x13 Tons, FUWA | Tanker Capacity: | 45m3 |
|---|---|---|---|
| Support Leg: | JOST Brand | Brake System: | WABCO And 6 Pcs Brake Chamber |
| Engine: | WEICHAI 4 Cylinder | Tire: | 315/80R22.5 |
| Highlight: | cement powder tanker trailer,bulk cement tanker trailer |
||
Product Description
-1. Main Specification For The Cement Tanker Trailer.
-. With big tanker body transport all kind cements.
-. WEICHAI diesel engine and BOHAI compressor.
-. 500mm (Diameter) manhole and 4 inch discharge valve.
-. automatic welded design, high strength steel.
| Specifications of Tanker Body | |
| Dimension(mm) | 12000×2490×3990 (Exact size depends on the final design) |
| Tare weight (kg) | About 7500-15000 |
| Tank capacity (CBM) | 30-50(Volume optional) |
| Shape | Optional(v or w shape) |
| Compartments | One or two compartments |
| Tanker Body Material | T622JJ carbon steel or 5XCT4 aluminium 5454 |
| End Plate | 4mm or 5mm T622JJ carbon steel |
| 5mm or 6mm 5XCT4 aluminium 5454 | |
| Rim | 8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand |
| Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20( brand can be Optional) |
| Engine | Weichai 4105 Engine |
| Manhole Cover | 500 mm carbon steel or aluminium alloy manhole |
| Bottom Valve | 3''/ 4" disc valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
| Air compressor | 10m3,12m3 |
| Diesel Engine | Weichai Huafeng, Tianhe 4102/4105 |
| Main Beam | Welding design or Special design, connected by bolts and nuts. |
| Material:Q345 carbon steel | |
| Height 500mm, | |
| Upper Thickness 14~18mm, | |
| Middle Thickness 8~12mm, | |
| Down Thickness 16~20mm | |
| Axle | 2 or 3 axles, BPW/FUWA brand(Optional) |
| Landing Gear | JOST(D200T)or China brand 28T(Two speed) |
| Brake System | WABCO Valve with big chamber |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension or Air suspension |
| Leaf Spring((mm) | 90(W)×13(Thickness)×10(Layer) or 100×12×12 |
| Rear ladder | removable |
| Lights | Turning Light, Side Marker Light, Tail Light |
| Voltage(v) | 24v |
| Receptacle | 7 ways (7 wire harness) |
| Painting | Complete Chassis sand blasting to clean rust,1coat |
| of anti-corrosive prime, 2 coats of final paint | |
| ABS | Optional |
| Accessories | One standard tool box |
-2. FAQ
-. Terms of paymemt
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
