• V Type Powder Concrete Mixer Trailer With 50 Tons Loading Tons 50m3  11000*2500*4000 mm
  • V Type Powder Concrete Mixer Trailer With 50 Tons Loading Tons 50m3  11000*2500*4000 mm
V Type Powder Concrete Mixer Trailer With 50 Tons Loading Tons 50m3  11000*2500*4000 mm

V Type Powder Concrete Mixer Trailer With 50 Tons Loading Tons 50m3 11000*2500*4000 mm

Product Details:

Place of Origin: CHINA
Brand Name: TRUCKMAN
Certification: SGS, BV, CIQ, FORM E, CE
Model Number: TKM50TK

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Price is negotiable
Packaging Details: Nude
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Get Best Price Contact Now

Detail Information

Size: 11000*2500*4000 Mm Use: Cement Trailer
Material: Steel Max Payload: 50T
Suspension: Leaf Spring Suspension King Pin: 3.5" JOST Brand
Landing Gear: Standard 28Ton Axle: FUWA, 3*13ton
High Light:

cement powder tanker trailer

,

cement tanker truck

Product Description

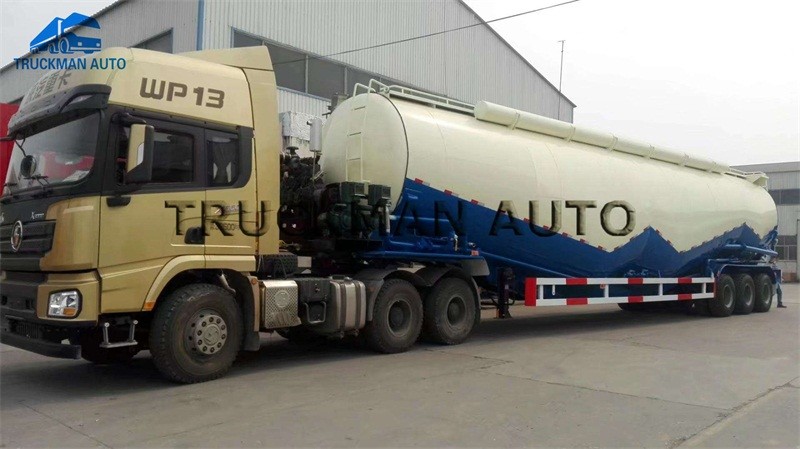

V Type Powder Concrete Mixer Trailer With 50 Tons Loading Tons 50m3 11000*2500*4000 mm

-1. 50m3 Bulk Cement Semi Trailer.



The bulk cement transport truck adopts the automatic longitudinal welding process, the

weld is firm and flat, the tank adopts the straight-through or V-type fluidized bed to optimize

the internal and external structure of the tank, which has the characteristics of low center of

gravity and large capacity. The design scientific layout is reasonable and the discharge time short, low gray rate.



Dimension 12000mm*2490mm*3990mm ( Exact size depends on the final design)
Tare weight About 7500KGS-15000KGS
Total Volume(m3) 50m³
Tanker Body Material 5mm or 6mm/ Q235 carbon steel
End Plate 5mm or 6mm /Q235 carbon steel
Diesel Engine WEICHAI ,Tianhe 4100/4102 or other brand
Compressor BOHAI 10m³/12 m³or other brand
Manhole Cover Carbon steel or Aluminum 500mm
Discharging Valve Diameter is 3 or 4 inch (Material: Aluminum )
Discharging Pipe 3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk With (Common model or special design)
Chassis
Main Beams Welding Design ,Q345 carbon steel
Axle 3 axles,13T, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
Pneumatic Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tanks.
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS Optional
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box



V Type Powder Concrete Mixer Trailer With 50 Tons Loading Tons 50m3  11000*2500*4000 mm 0



-2. About Us.



JINAN TRUCKMAN AUTOMOBILE CO.,LTD. was established in year 2010,that mainly focus on

TRUCKMAN brand All series new semi trailers, Full Trailers such as Container trailer, Lowbed trailer,

Dump trailer, Tank trailer, Fence Trailer And some China Brand Tractor truck head, export business.

The goods can meet all certificates and different work requirements, such as BV, SGS, CO, CIQ, GCC,

SONCAP, SASO, CCC, FORM E, ADR certificate etc, also with reasonable price. With years development,

our business extended to more than 80 more countries and regions in the world like Nigeria, Angola, Ghana,

Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin

America countries like Chile, Peru and Australia, America, Europe etc. We take “Quality, Honesty, Responsibility”

as our enterprise core value to make you best cooperation experience. TRUCKMAN people are brave in pioneering

and innovative management, and practice their corporate mission with professional services, and are committed to

becoming a world-class enterprise with international characteristics.
