50 Tons 8x4 SINOTRUCK 371HP Heavy Duty Dump Truck For Mining Work
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SINOTRUK HOWO |
| Certification: | SGS, BV, CIQ |
| Model Number: | ZZ3317N3567W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Engine: | WD615.47, 371HP | Cabin: | HW76, With One Bed, A/C |
|---|---|---|---|
| Gearbox: | 10 Forward And 2 Reverse Gear | Cargo Box: | 7000x2300x1500mm |
| Tire: | 12.00R20, 12+1 Pcs | Loading Tons: | 50 Tons |
| High Light: | SINOTRUCK 371HP Heavy Duty Dump Truck,50 Tons Heavy Duty Dump Truck,8x4 Heavy Duty Dump Truck |
||
Product Description
50 Tons 8x4 SINOTRUCK 371HP Heavy Duty Dump Truck For Mining Work

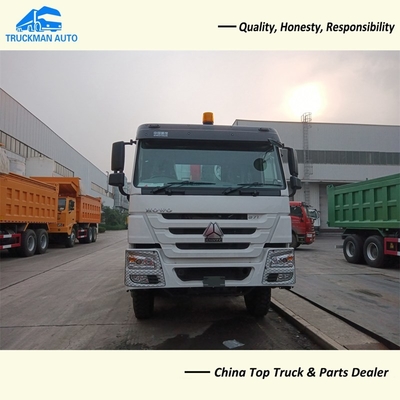

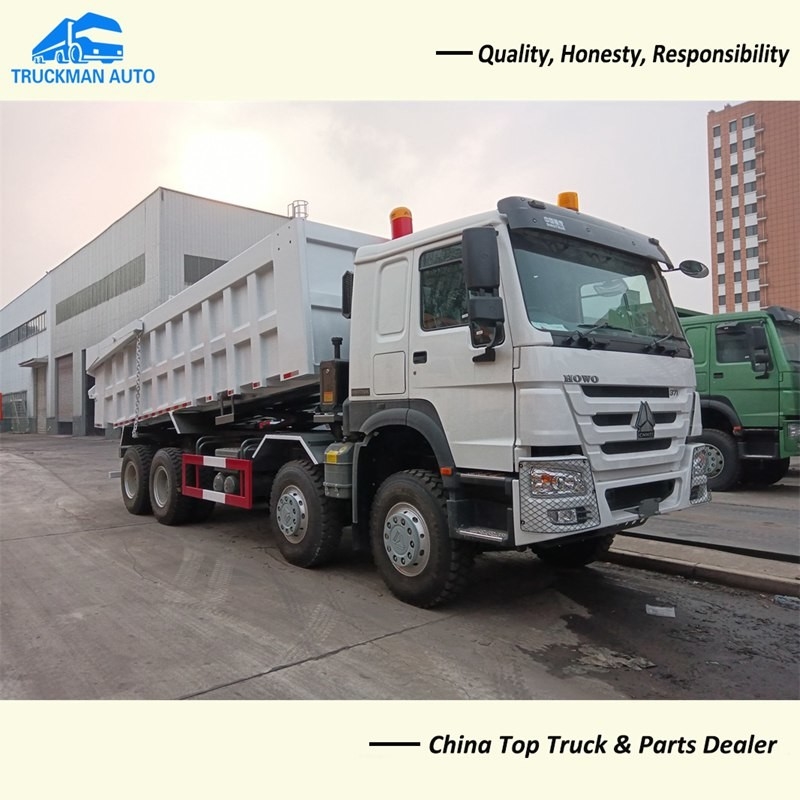

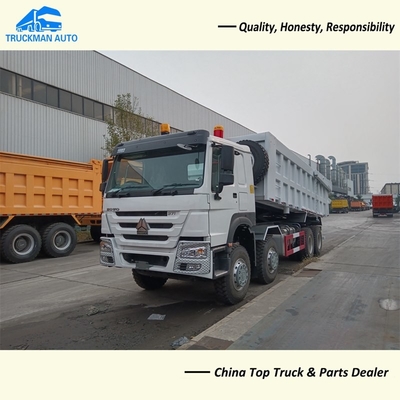

-1. 12 Wheel SINOTRUCK 371HP Dump Truck Detail.
The 12.00R20 radial tire with mining pattern, mining structure bucket, warning light, lamp protect
cover its the standard dump truck specification for the mining work. It’s great helpful improve
dump truck service life and save the maintenance cost.
-. Mining structure bucket for loading big stone, and inside and outside structure enhance.
-. Back door thickness enhanced too, durable, not easy to deform.
-2. 12 Wheel SINOTRUCK 371HP Dump Truck Specification.
| Description | Parameter Value |
| Product Name | 12 Wheel SINOTRUCK 371HP Dump Truck |
| Application | For transport sand, stone etc |
| Engine | WD615.47, 371HP. Euro 2 |
| Cabin | With one bed, A/C, right hand drive |
| Gearbox | 10 forward and 2 reverse gear |
| Driving Axle | HC16, 16 tons, 2x16000kg |
| Tire | 12.00R20, 12+1 pcs, TRIANGLE brand |
| Cargo Box | 7000x2300x1500mm, bottom 10mm, side 8mm |
| Fuel Tank | 300L (can optional 400L) |
| Loading Tons | 50 tons |
| Max Speed | 75km/h |
| Dimension | 10650x2580x3450mm |
The 12 wheel SINOTRUCK 371HP dump truck specification only for your reference, we will recommend
other model SINOTRUCK HOWO dump truck according to your request.

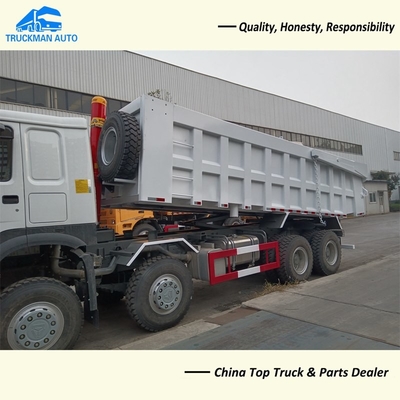

-3. 12 Wheel SINOTRUCK 371HP Dump Truck Back Door Detail.
Consider the dump truck will work at mining site, and most of material is big stone. So we design the
enhanced version of the back door of the cargo box, this kind of back door is more sturdy and not
easy to be deformed, and the unloading method is improved, and the unloading speed is increased.
See picture:
