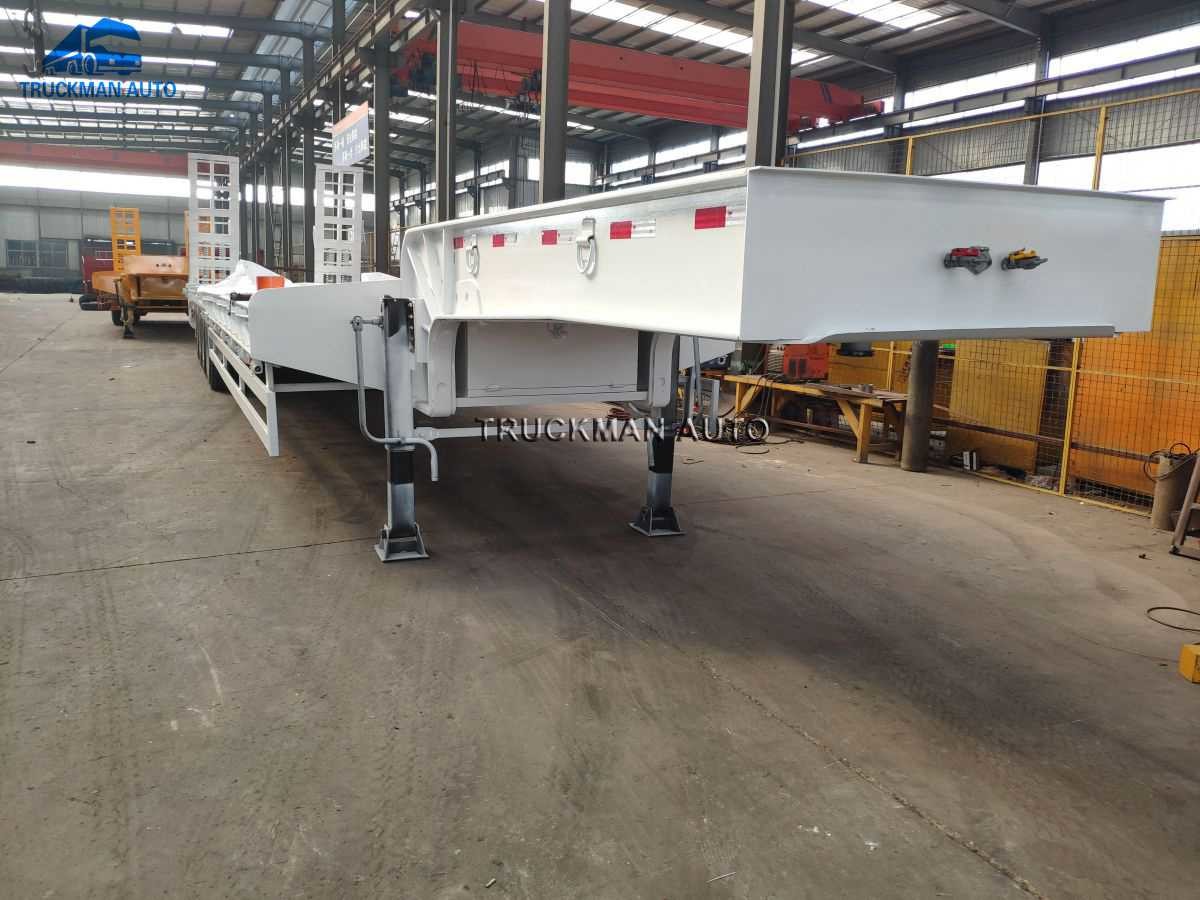

12.00R20 Tire 4x13 Tons Axles Low Flatbed Trailer With Steel Q345
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN |
| Certification: | SGS, BV, CIQ,Form E |
| Model Number: | TKM470TLD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Unit / Per Month |
|
Detail Information |
|||
| Axle: | 4x13000kg | Landing Gear: | 28 Tons |
|---|---|---|---|
| Tire: | 12.00R20, 16 Pcs | Loading Tons: | 70000kg |
| Working Platform: | 9500x3000 | Dimension: | 13500x3000x3200mm |
| High Light: | 4x13 Tons Low Flatbed Trailer,Steel Q345 Low Bed Semi Trailer,12.00R20 Tire Low Flatbed Trailer |
||
Product Description
12.00R20 Tire 4x13 Tons Axles Low Flatbed Trailer With Steel Q345
TRUCKMAN 70 Ton 4 Axles Low Flatbed Trailer With Steel Q345
-1. 70 Ton 4 Axles Low Flatbed Trailer With Steel Q345 Main Advantage.
-. Gooseneck could be removable design, easier loading and unloading goods from Both side of front and rear
-. Tires adopt the model of 12.00R20 radial engineering tire, with big pattern.
-. 8mm thickness spring steel machanical suspension for heavy duty loading.
-. WABCO brand brake system and 6 pcs brake chamber, more safety.
-2. 70 Ton 4 Axles Low Flatbed Trailer With Steel Q345 Main Specification.
| Description | Parameter value |
| Product Name | 70 Ton 4 Axles Low Flatbed Trailer |
| Loading Weight | 70,000kg |
| Kurb Weight | 10,500kg |
| Axle | 4 axles, 4x13 tons |
| Suspension | America Machanical type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx8sets |
| Rim thickness | 18mm |
| Tires | 12.00R20,Radial, 16 pcs |
| Brake System | WABCO brand, ABS and 8 pcs brake chamber |
| Thickness Of Beam |
Upper plate 16mm, middle 10mm lower plate 18mm, “I” type main beam |
| Material | Q345, high strength Mn steel Plate |
| Whole Size | 13500x3000x1600mm |
The specification is only for reference, we could design the TRUCKMAN 70 Ton 4 Axles Low Flatbed Trailer With Steel Q345 according to your request.
-3. TRUCKMAN 70 Ton 4 Axles Low Flatbed Trailer With Steel Q345 Working Picture.
This picture from our Mozambique customers, the low flatbed trailer working at rainforest area, very bad road condition. So we recommend the customers use 12.00R20 model tire with mining pattern for trailer easier climbing.
