40 Tons 12pcs Tire Container Flatbed Trailer With BPW Axle
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CIQ |
| Model Number: | TKM376PS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Overall Dimension: | 12500x2500x1550mm | Wheel Base: | 6880+1310+1310mm |
|---|---|---|---|
| Steel Spring: | 90x16mmx10 Pcs, Leaf Spring Suspension | Landing Gear: | 28T, Double Speed Operation |
| Brake Air Chamber: | Four Double And Two Single Chamber | Tool Box: | 1 Set |
| High Light: | 12pcs Tire Container Flatbed Trailer,BPW Axle Container Flatbed Trailer,Q345 Container Flatbed Trailer |
||
Product Description
40 Tons 12pcs Tire Container Flatbed Trailer With BPW Axle
40 Tons 20 Feet 40 Feet Container Flatbed Trailer For Sale
-1. 40 Feet Container Flatbed Trailer Main Detail.
-. Suitable for 20 feet, 40 feet, 45 feet container transport.
-. With 12 pcs twist lock and 24 pcs rope tightener.
-. FUWA or BPW brand axle could optional.
-. High strength steel with automatic welding.
-. The brake more safety, due to use the WABCO brake parts.
-2. 40 Feet Container Flatbed Trailer Main Specification.
| Description | Parameter value |
| Product Name | 40 Feet Container Flatbed Trailer |
| Loading Weight | 40,000kg |
| Tare Weight | 7,500kg |
| Axle | 3 axle, 3x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Rim | 16mm thickness |
| Tire | 12R22.5, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam |
| Material | Q345, high strength steel |
| Other | With 12 pcs twist lock and tool box |
| Dimension | 12500x2500x3100mm |
The 40 feet container flatbed trailer could design according to your request.

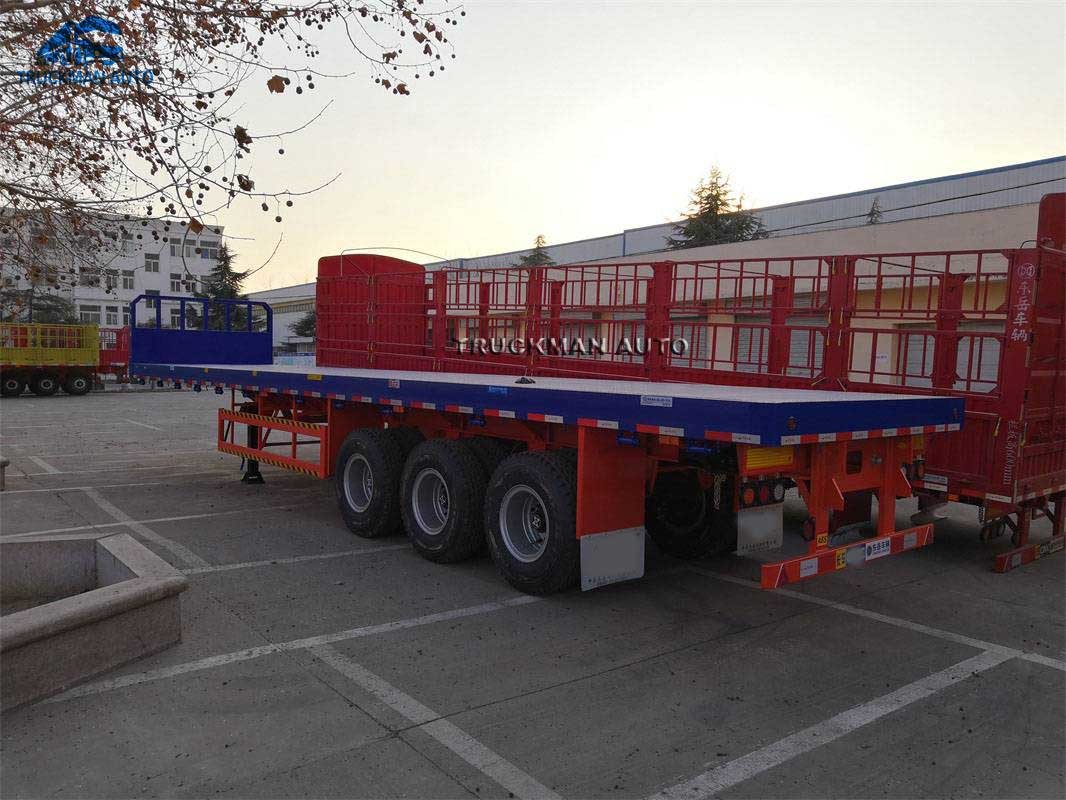

-3. 40 Feet Container Flatbed Trailer Chassis Picture.
The normal 40 feet container flatbed trailer can’t meet the local road request, so we make our TRUCKMAN AUTO 40 feet container trailer chassis more stronger, such as the leaf spring choose 90x16mm size, suspension 8mm thickness etc. Attached the trailer picture for your reference
