LW300FN XCMG 3 Tons Heavy Construction Machinery Payloader

LW300FN XCMG 3 Tons Heavy Construction Machinery Payloader

Product Details:

Place of Origin: CHINA
Brand Name: XCMG
Certification: SGS, BV, CIQ, FORM E
Model Number: LW300FN

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Nude
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Get Best Price Contact Now

Detail Information

Rated Loading: 3000kg Machinery Weight: 10600kg
Bucket Size: 1.5-2.5m3 Hydraulic Cycle Time-Raise: 5.5s
Min. Turning Radius Over Tyres: 5165mm Max Horsepower: 95HP
High Light:

XCMG Heavy Construction Machinery Payloader

,

LW300FN Heavy Construction Machinery Payloader

Product Description

LW300FN XCMG 3 Tons Heavy Construction Machinery Payloader

-1. XCMG 3 Tons Heavy Construction Machinery Payloader Main Detail.



LW300FN XCMG 3 tons heavy construction machinery payloader could used for all kind of Jobs, such as transport construction and mining material, the bucket also have the different bucket could optional, like rock bucket for big stone, standard bucket for sand, gravel even for grain etc.

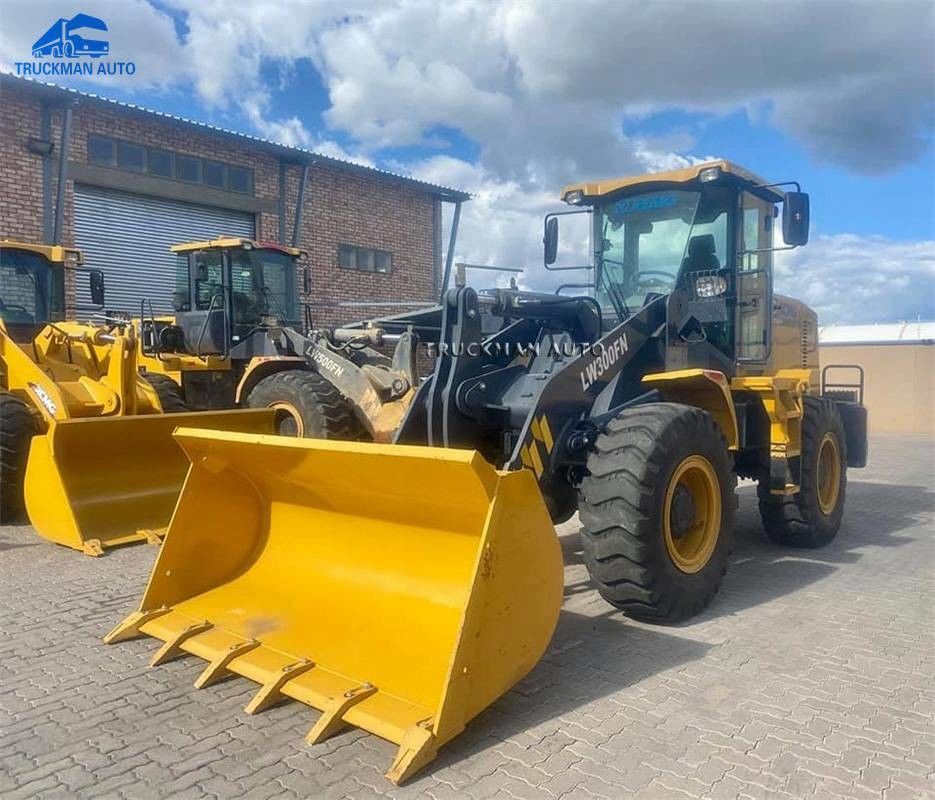

LW300FN XCMG 3 Tons Heavy Construction Machinery Payloader 0



Description Unit Parameter value
Rated operating load kg 3000
Bucket capacity 1.5~2.5
Machine weight kg 10600±200
Dump clearance at maximum lift mm 2770~3260
Reach at maximum lift mm 1010~1210
Wheel base mm 2600
Tread mm 1850
Height of hinge at maximum lift height mm 3830
Working height(fully lifted) mm 4870
Max.breakout force kN 130
Max.horse power kN 95
Hydraulic cycle time-raise s 5.5
Total hydraulic cycle time s 10
Min. turning radius over tyres mm 5165
Articulation angle ° 35±1
Gradeability ° 28
Tyre size   17.5-25-12PR
Overall machine dimension L×W×H mm 7050×2482×3118
Model   WP6G125E22
Emission standards   Emission 2
Rated Power/Speed kW/rpm 92/2200
Fuel Tank L 170
Hydraulic Tank L 170
Ⅰ-gear (F/R) km/h 8/10
Ⅱ-gear (F/R) km/h 13/30
Ⅲ-gear (F) km/h 24/-
Ⅳ-gear (F) km/h 40/-



-2. XCMG 3 Tons Heavy Construction Machinery Payloader Detail Picture Advantage.

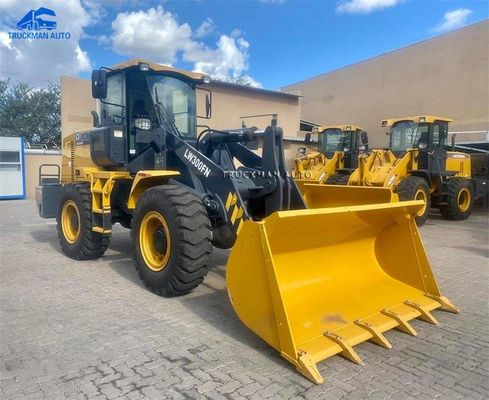

LW300FN XCMG 3 Tons Heavy Construction Machinery Payloader 1



XCMG 3 tons heavy construction machinery payloader adopts WEICHAI engine, the power is increased to 92kw, environmental protection, energy saving, strong power, and meets the EURO II emission standard.



XCMG 3 tons heavy construction machinery payloader with service brake and parking brake; service brake adopts air-over oil caliper disc four-wheel brake, which has the advantages of stable braking, safe and reliable, simple structure and convenient maintenance.
