• 2960mm Wheel Base LW500FN Front End Wheel Loader
  • 2960mm Wheel Base LW500FN Front End Wheel Loader
  • 2960mm Wheel Base LW500FN Front End Wheel Loader
2960mm Wheel Base LW500FN Front End Wheel Loader

2960mm Wheel Base LW500FN Front End Wheel Loader

Product Details:

Place of Origin: CHINA
Brand Name: XCMG
Certification: SGS, BV, FORM E
Model Number: LW500FN

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Nude
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Get Best Price Contact Now

Detail Information

Reach At Maximum Lift: 1100-1900mm Wheel Base: 2960mm
Tread: 2250mm Max.breakout Force: 170kN
Hydraulic Cycle Time-raise: ≤6s Total Hydraulic Cycle Time: ≤10.5s
High Light:

LW500FN Front End Wheel Loader

,

2960mm Front End Wheel Loader

Product Description

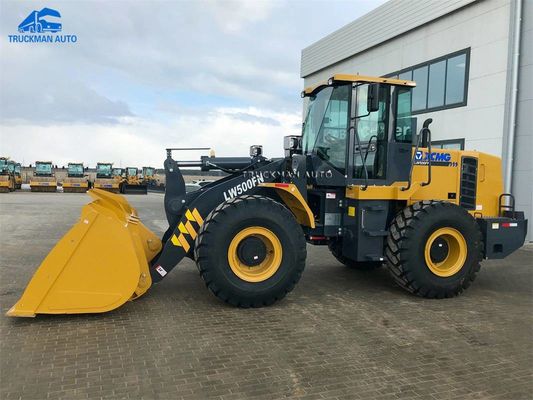

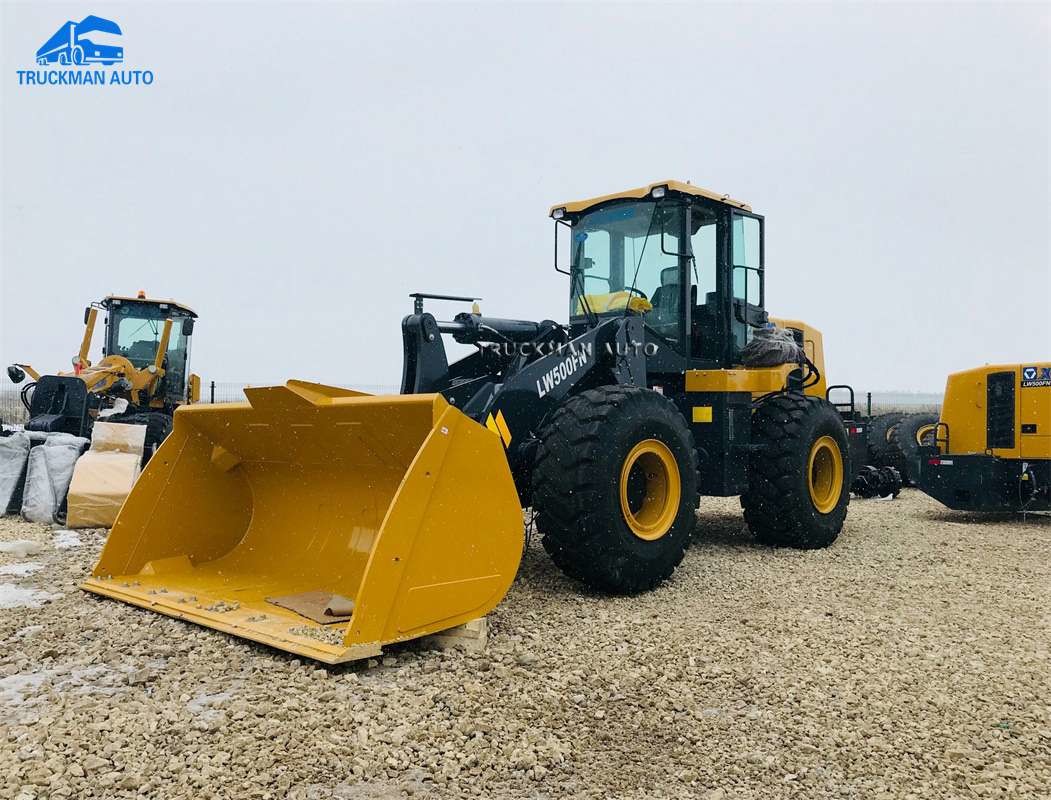

2960mm Wheel Base LW500FN Front End Wheel Loader

Brand New XCMG LW500FN Front End Wheel Loader Cheaper Price



-1. XCMG LW500FN 5 Tons Front End Wheel Loader Main Detail.



XCMG LW500FN 5 tons front end wheel loader with different bucket could optional, such as the grasping grass pliers, sliding fork, rock bucket, light material blade bucket etc. And the air conditioner also need optional, now the XCMG LW500FN wheel loader main parts all work with famous company, such as WEICHAI engine etc. With long time warranty.



2960mm Wheel Base LW500FN Front End Wheel Loader 0



Description Unit Parameter value
Rated operating load kg 5000
Bucket capacity 2.5~4.5
Machine weight kg 16900
Dump clearance at maximum lift mm 3150~3560
Reach at maximum lift mm 1100~1190
Wheel base mm 2960
Tread mm 2250
Height of hinge at maximum lift height mm 4112
Working height(fully lifted) mm 5510
Max.breakout force kN 170
Hydraulic cycle time-raise s ≤6
Total hydraulic cycle time s ≤10.5
Min. turning radius over tyres mm 5950
Articulation angle ° 35
Gradeability ° 28
Tyre size   23.5-25-16PR
Overall machine dimension L×W×H mm 7910×3016×3515
Model   WD10G220E21
Rated Power kW 162
Fuel Tank L 250
Hydraulic Tank L 210
Travel Speed km/h 13-40



-2. XCMG LW500FN 5 Tons Front End Wheel Loader Different Bucket Work.



2960mm Wheel Base LW500FN Front End Wheel Loader 1



Standard Bucket: Standard 3.0m3 bucket the dumping height could reach to 3500mm

Clamp: For grab and transport of various woods and tubing

Bale Grabber: It’s used for the grabbing and handing of light materials such as straws and paper boards

Snow Plough: For snow removing in roads and urban streets

Rock Bucket: It’s dedicated for handling of hard materials such as rock, featuring good resistance against wear and impact
