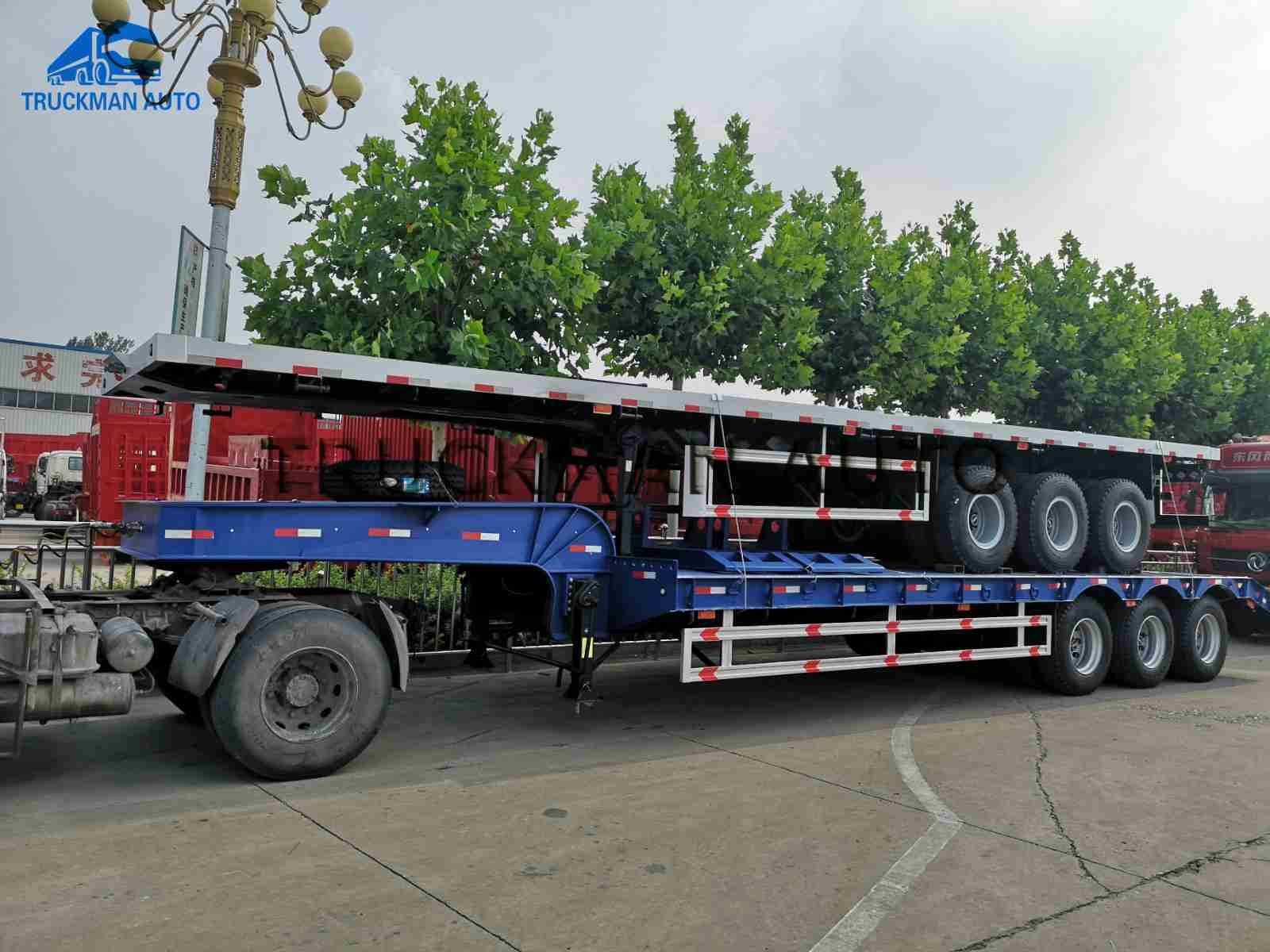

40T-80T 3x13/16ton FUWA /BPW Axle Container Semi Trailer
Product Details:
| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | SONCAP,FORM M,BV,SASO,SGS,CIQ, |
| Model Number: | ZZ3047E3415D143 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pack In nude |
| Delivery Time: | 40 Days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Unit Per Month |
|
Detail Information |
|||
| Loading Capacity: | 40T-80T | Size: | 7200/12500x2500x1560mm |
|---|---|---|---|
| Use: | Truck Trailer | Max Payload: | 60T |
| Suspension: | :Mechanical Leaf Spring Suspension | Axle: | 3x13/16ton FUWA /BPW Axle |
| High Light: | HOWO light duty dump truck,Sinotruck light duty dump truck,ZZ3047E3415D143 |
||
Product Description
40T-80T 3x13/16ton FUWA /BPW Axle Container Semi Trailer
40T-80T 3x13/16ton FUWA /BPW Axle Container Semi Trailer
Description of flatbed semi-trailer
Flatbed semi-trailers are designed to transport products such as 20 Ft, 30 Ft, 40ft, 45 ft, containers, loaded flat-top ships, open-top containers, etc. Also called a container transport trailer. The steel plate covering the main body of the frame provides a flat appearance. The convex surface prevents the load from moving. Available from 2 axis to 4 axis. The container corner connection and lock ensure stable load. It is also suitable for carrying two 20-foot containers. The distance between the shaft and the king pin is suitable for the center of gravity. Its capacity is 20 to 40 tons. Flatbed trailer overview Container locks: 4 to 12 locks for 1×20 feet, 1×40 feet, 2×20 feet, 1×30 feet Axles: BPW or BPW type Turkish brand axles, with a capacity of 9-12- 14-16 tons, drum or disc option Brake: Wabco EBS or Wabco ABS brake system suspension:
Flatbed semi trailer properties
| Flatbed semi trailer Parameter | |
| Payload | 40000kg-60,000kg |
| Tare weight | 70,00kg-9000kg |
| Dimension | 7200/12500x2500x1560mm |
| Wheel base | 1310mm |
| Fabric | |
| Main beam | Beam height 500mm, upper plate-14mm, bottom plate double 8mm, middle plate-16mm, made of Q345 steel |
| Cross/side beam | Q235, channel steel |
| Floor | 3 mm diamond steel plate |
| Painting | Complete chassis sand blasting to clean rust,coat of anti-corrosive prime,2coatsof final paints |
| Tool box | 1piecs |
| Twist locks | 4/12 piece |
| Welding | Long member beams be CO2 Arc welded by 80% penetration on external side and bead.All |
| other parts welding with MAG process | |
| Parts | |
| Axle | 3x13/16ton FUWA /BPW Axle |
| Suspension | Mechan |
General summary of flatbed trailers
Container lock: 4 to 12 locks for 1×20 feet, 1×40 feet, 2×20 feet, 1×30 feet
Axle: BPW or BPW type Turkish brand axle, with a capacity of 9-12-14-16 tons, drum or disc shape is optional
Brakes: Wabco EBS or Wabco ABS brake system
Suspension: air suspension, hydraulic suspension, mechanical leaf spring suspension or bogie type suspension
Tires and rims: single or double tires, 385/60 R22,5 – 315/80 R22,5 – 12 R22,5 – 13 R22,5
Electrical system: Saba brand electrical system with 7 or 15 pin options
King pin: 2 inch or 3,5 inch king pin JOST or equivalent made in China
Landing gear: 25-35 tons JOST or equivalent made in China
Spray paint: brand primer
Accessories: tool box, fire box, spare tire rack, water tank
