Product Details:

Place of Origin: CHINA
Brand Name: TRUCKMAN AUTO
Certification: SGS, BV , FORM E, CIQ
Model Number: TKMSCT360

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Price is negotiable
Packaging Details: Nude
Delivery Time: 20-25 working days
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Get Best Price Contact Now

Detail Information

Material: Q345B Type: Skeleton Container Semi Trailer
Max Payload: 40T Axle: 13 Ton Fuwa Brand
Suspension: Mechanical / Air / Bogie Landing Gear: JOST E100 Flatbed Semi Trailer
High Light:

skeletal container trailer

,

cargo container trailer

Product Description

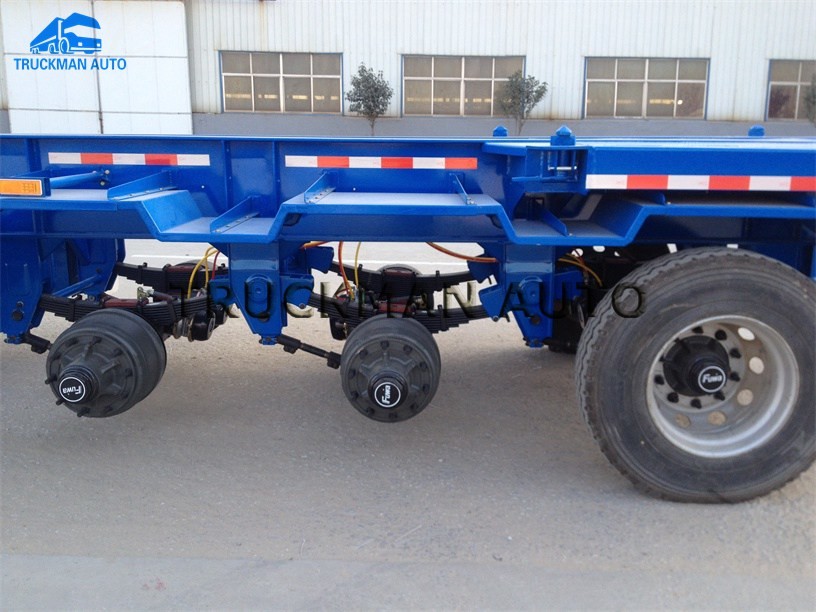

Skeleton Model Container Semi Trailer Overall Dimension 12500*2500*1550

Skeleton Model Container Transport Cargo Trailer With Container Lock



- 1. Skeleton Container Semi Trailer Specification.



-. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension;

Mechanical suspension. We can make the order according to the customer's needs.



-. We have State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to

ensure the standards of processed material and the quality of finished products.



-. -. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and

better fuel economy.



Trailer Model Skeleton Semi Trailer
Function Carry40ft/2x20ft container or other stuff
Overall Dimension
(Lx W x H)(mm)
12500*2500*1550
Tare Weight(KG) 6550
Loading Weight( KG) 40000
Total Weight(KG) 50000
Axle Brand 13TON Fuwa axles brand
Axle Number 3
Wheelbase(mm) 2300+1310+1310
Suspension system Common Mechanical suspension
Steel Spring 10/10/10 leaf spring suspension
The material of Main beam The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Container Twist Locker 12pcs container lock
Tire Type and quantity 12R22.5 tyres, triangle brand
Spare Wheel Bracket 1 pieces
Tool Box 1 Standard
Landing Gear Chinese standard 28ton
Brake system Dual Line braking system
Brake air chamber Two double and two single chamber
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard According to customer’s requirement
Painting Color as customer’s requirement



Skeleton Model Container Semi Trailer Overall Dimension 12500*2500*1550 0



Skeleton Model Container Semi Trailer Overall Dimension 12500*2500*1550 1



-2. FAQ



-. Terms of paymemt.

30% as the deposit by T/T, 70% balance before delivery.



-. What’s your MOQ?

One unit trailer or truck. But suggest two trailers one time to save the freight.



-. Whats your delivery time.

20-25 working days after received the deposit.



-. What is your terms of shipment?
The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.



-. Can you accept the custom made?

Definitely! We could design the trailer according to your request.



-. What’s your warranty?

All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.



Skeleton Model Container Semi Trailer Overall Dimension 12500*2500*1550 2
