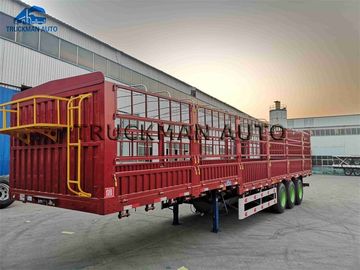

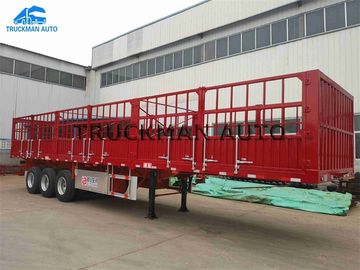

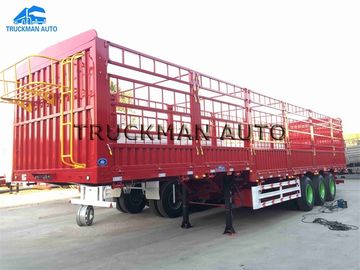

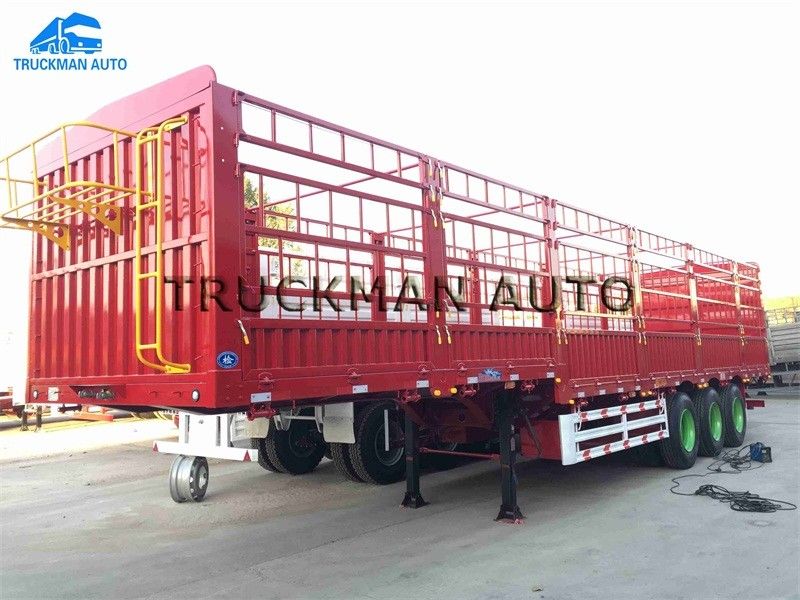

12.5m 3 Axles Fence Semi Trailer Suitable Height Easy Maintenance / Repair
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TRUCKMAN AUTO |
| Certification: | SGS, BV, CTN |
| Model Number: | TKMFCT370 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20-25 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Unit / Per Month |
|
Detail Information |
|||
| Type: | Fence Cargo Semi Trailer | Axles: | FUWA Brand, 3x13 Tons |
|---|---|---|---|
| Support Leg: | JOST Brand, E100, 28 TONS | Tire: | 12.00R20, 12R22.5, 315/80R22.5, LINGLONG |
| Loading Capacity: | 70 Tons | Leaf Spring: | 120x90mm X 10Pcs X 6Sets |
| High Light: | 3 axle semi trailer,fence trailer |
||
Product Description
12.5m 3 Axles Fence Semi Trailer Suitable Height Easy Maintenance / Repair
12.5m 3 Axles Fence Bulk Cargo Transport Trailer With ABS System
1. Main Specification For The Fence Cargo Semi Trailer.
-. With the suitable height fence, and could remove.
-. Use JOST brand support leg and tractor pin.
-. Repair and maintenance easily and save cost.
-. Use the Q345B stronger material suitable the bad road running demand.
| Item | unit | parameter | |
| Vehicle model | cargo semi trailer | ||
| Overall dimensions | mm | 10000×2500×3400 | |
| GVW | kg | Appro×62500 | |
| Rated loading capacity | Appro×50000 | ||
| Curb weight | Appro×12500 | ||
| Wheel base | Mm | 5760+1310+1310 | |
| F/R track base | -/1410 | ||
| Approach/departure angle | ° | -/13 | |
| Tire specification | mm | 12R 22.5 tubeless tire 12pcs | |
| axles | 3*16tons FUWA heavy axles | ||
| Equipment | Material: side 3mm bottom 4mm high strength carbon steel | ||
| 16tons FUWA heavy axles | |||
| One spare Wheel Carrier with a Riser | |||
| 28tons Two speed , Manual operated , heavy Duty landing Gear | |||
| 90# or 50# kingpin choose | |||
| Rubber Mud Guards | |||
| mechanical suspension | |||
| pneumatic Brake System consists of Tow Units of RE 4 relay valves | |||
| Electrical System ,24 volt , 7 pins Turn Light + Brake Light + Rear Light , side Lights , Rear and Side Reflectors. and Seven Core Standard Cable inside a rubber tubes | |||
| Painting : sand blasting , one coat anti corrosion primer , Tow coats of finish painting | |||
-2. FAQ
-. Terms of paymemt
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
